Hubbell

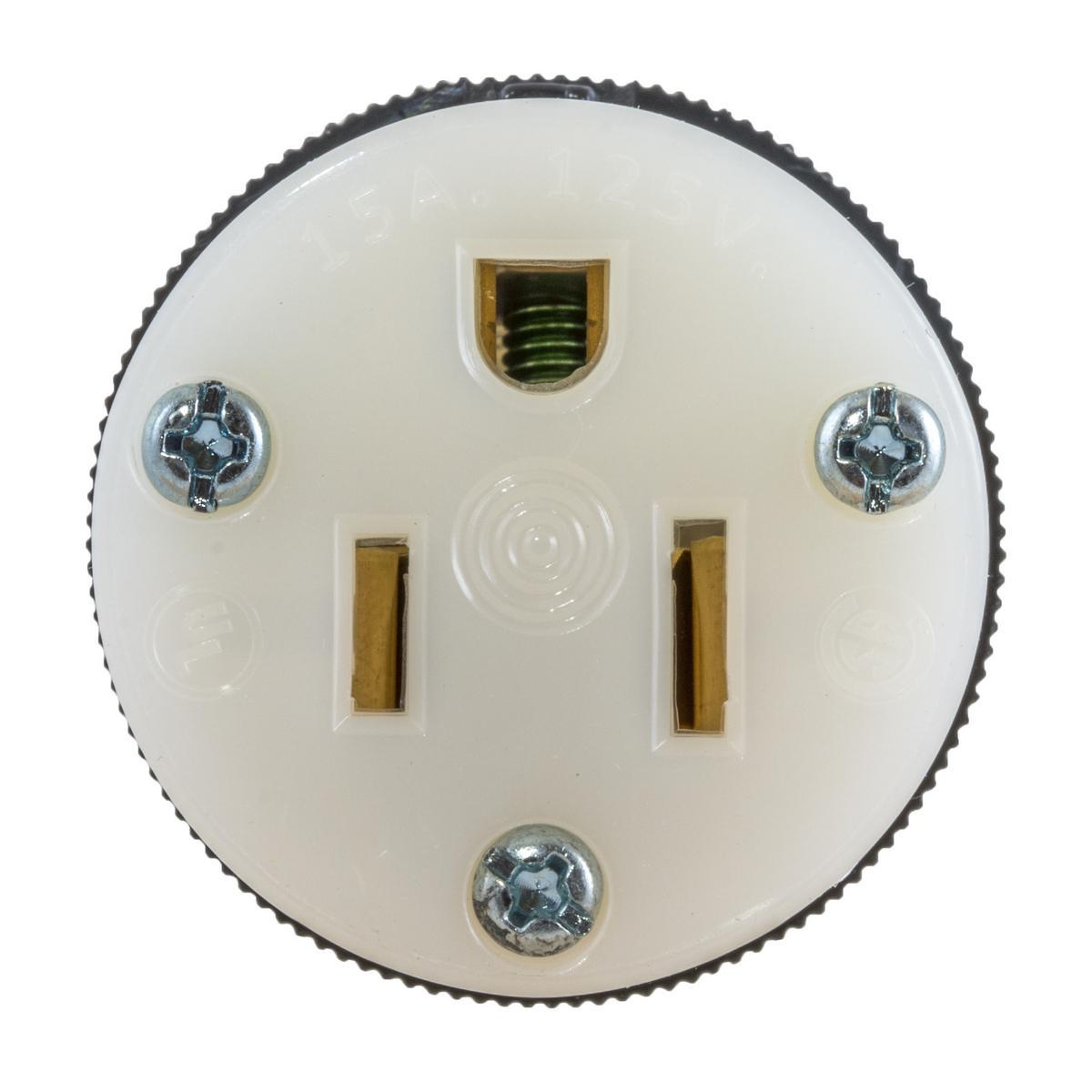

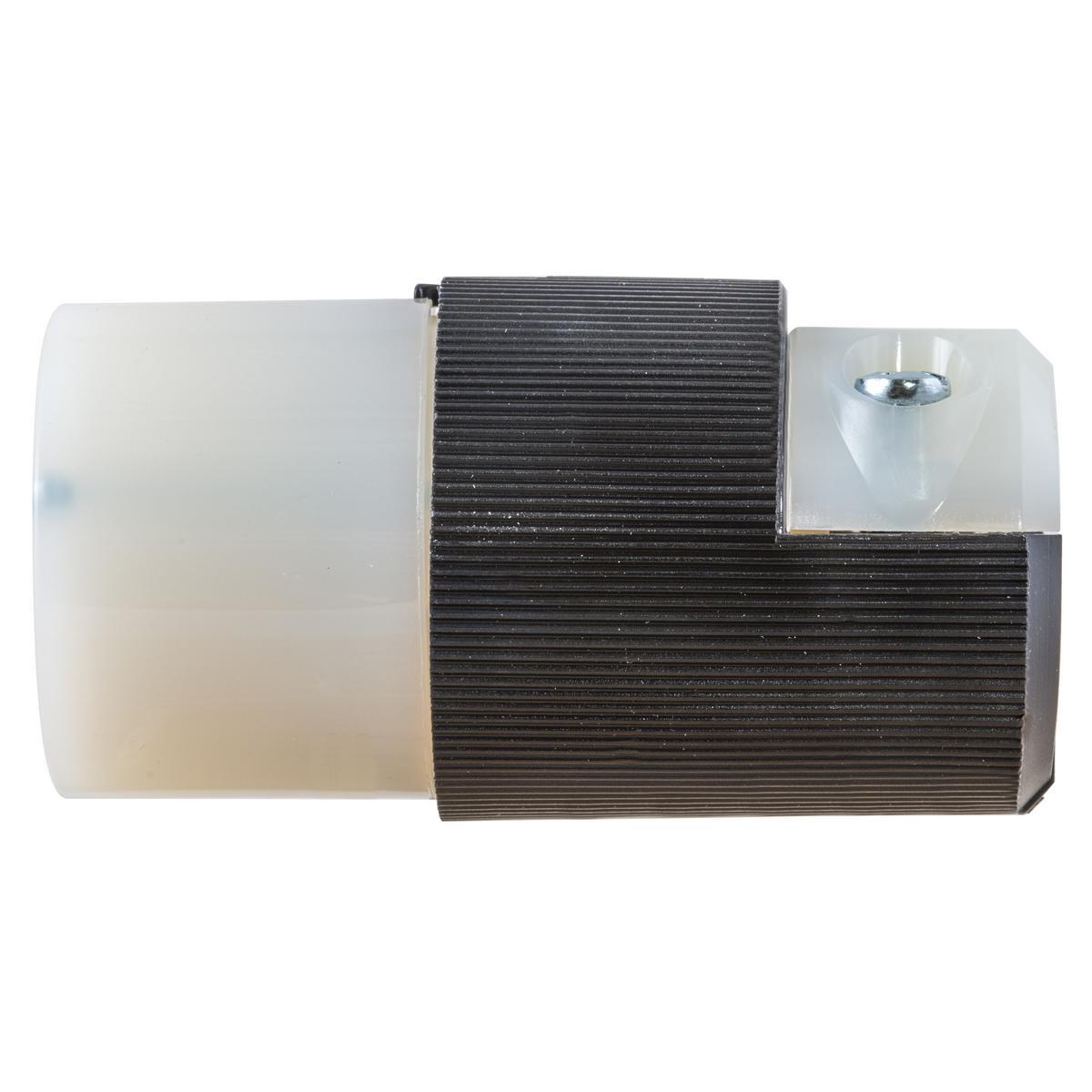

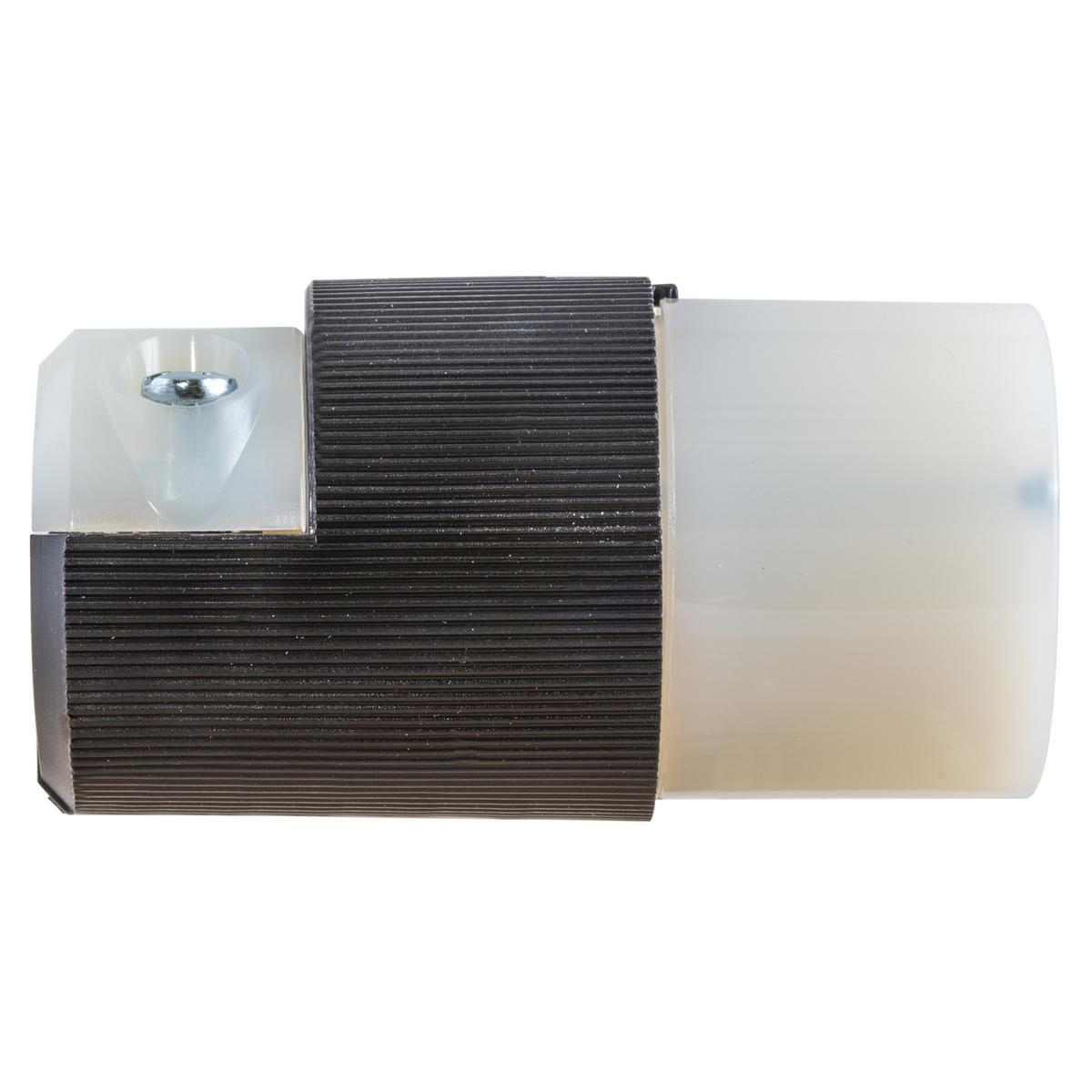

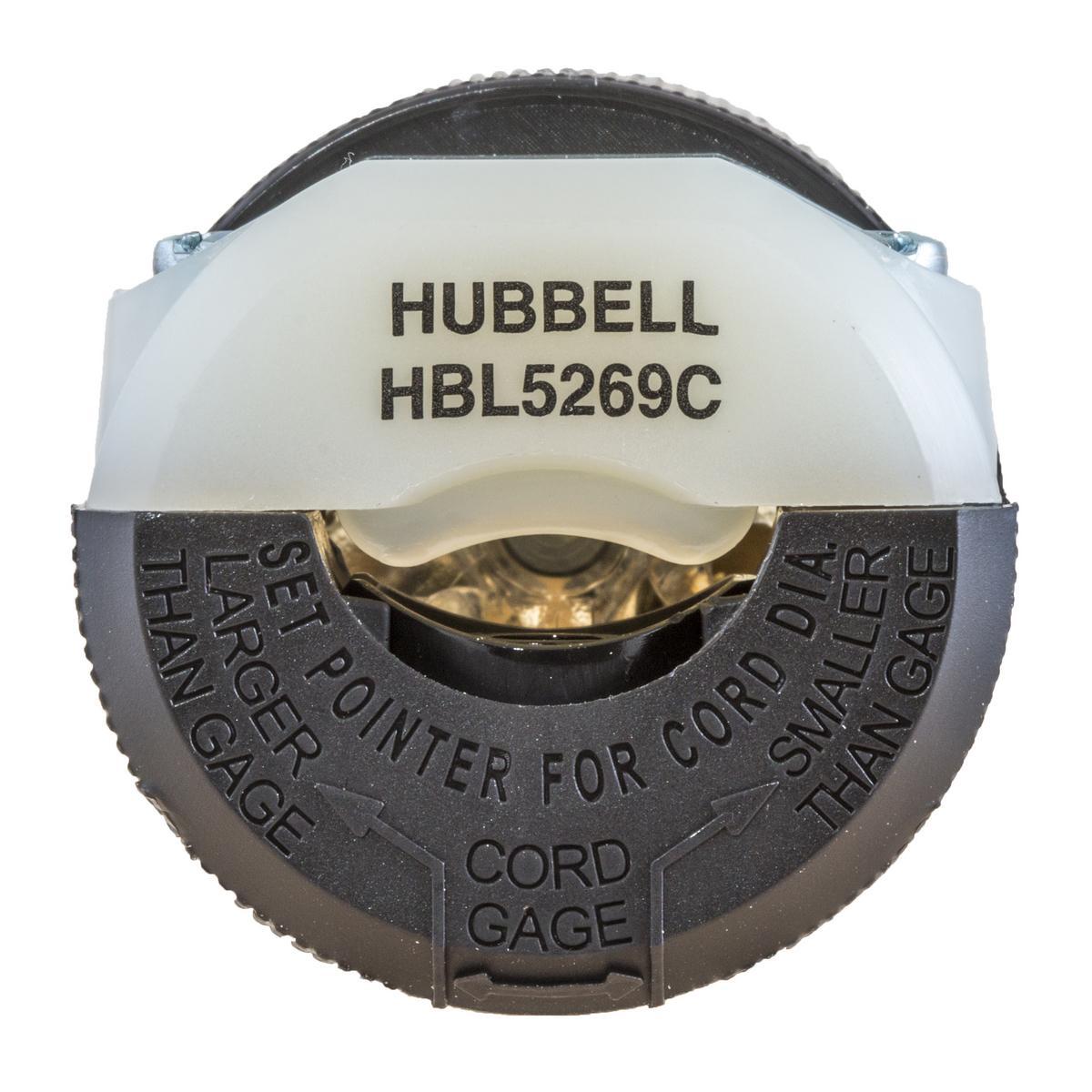

HBL5269C HUB 3W NYLON CONN 6269AH

Mouse over image to zoom, click to enlarge

  • HBL5269C HUB 3W NYLON CONN 6269AH
  • HBL5269C HUB 3W NYLON CONN 6269AH
  • HBL5269C HUB 3W NYLON CONN 6269AH
  • HBL5269C HUB 3W NYLON CONN 6269AH
  • HBL5269C HUB 3W NYLON CONN 6269AH

Description: Hubbell Wiring Device-Kellems Insulgrip®, HBL5269C, Blade Connector, Heavy Duty Straight Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black/White, 2.65 x 1.55 x 2.65 in Dimensions

Manufacturer PN: HBL5269C

UPC:  78358517325

Kendall Electric Inc PN: 32649

Invoice Description:

HBL5269C HUB 3W NYLON CONN 6269AH


SPEC SHEET

▸ See All in Straight Blade Connectors


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Insulgrip® HBL5269C Heavy Duty Straight Cord Mount Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 15A 125V, 5-15R, Black and White, Single Pack.
Hubbell Wiring Device-Kellems Insulgrip®, HBL5269C, Blade Connector, Heavy Duty Straight Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black/White, 2.65 x 1.55 x 2.65 in Dimensions

Specifications

 Amperage Rating 15 A
 Application Commercial and Industrial Applications
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.23 to 0.72 in
 Dimensions 2.65 x 1.55 x 2.65 in
 Enclosure IP20
 Grade Commercial/Industrial
 Horsepower 1/2 hp
 Manufacturer Part Number HBL5269C
 Material Polycarbonate
 NEMA Rating 5-15R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL5269C ; 11828148 ; 8909611 ; 783585173252 ; 78358517325 ; 00783585173252 ; 0783585173252
 Standards/Approvals CSA C22.2 No. 42/280|UL 498 File No. E1706|NEMA WD6/WD1/WD5|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type Heavy Duty Straight Cord Mount
 Video Links
 Voltage Rating 125 V AC

Features

▪ Single Outlet
▪ Powerful, offsetting cord grips clamp on individual conductors
▪ Fast lead assembly screws
▪ Beveled housing prevents snagging
▪ Individual wiring terminals completely enclosed
▪ Receptacle only - does not include reel
