Hubbell

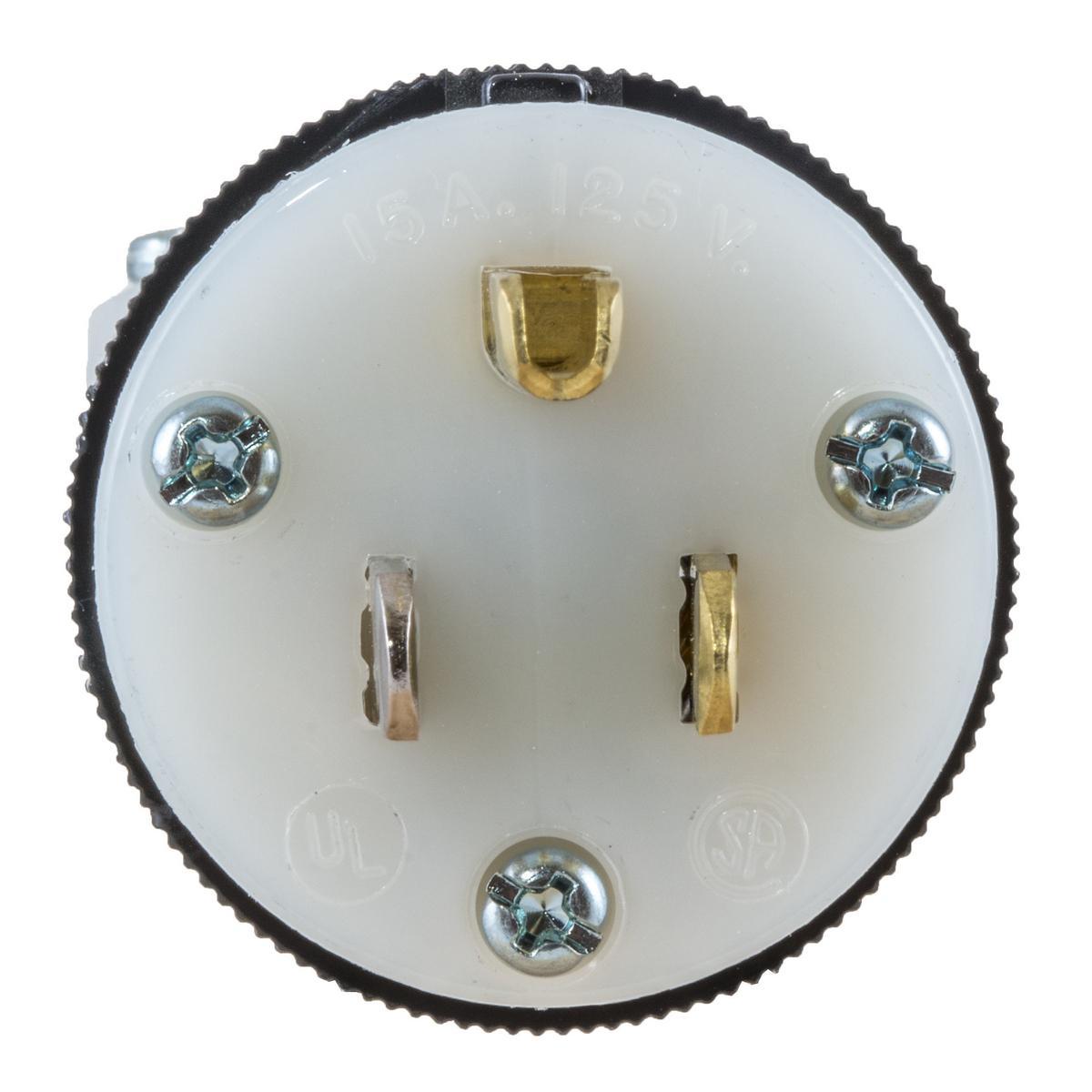

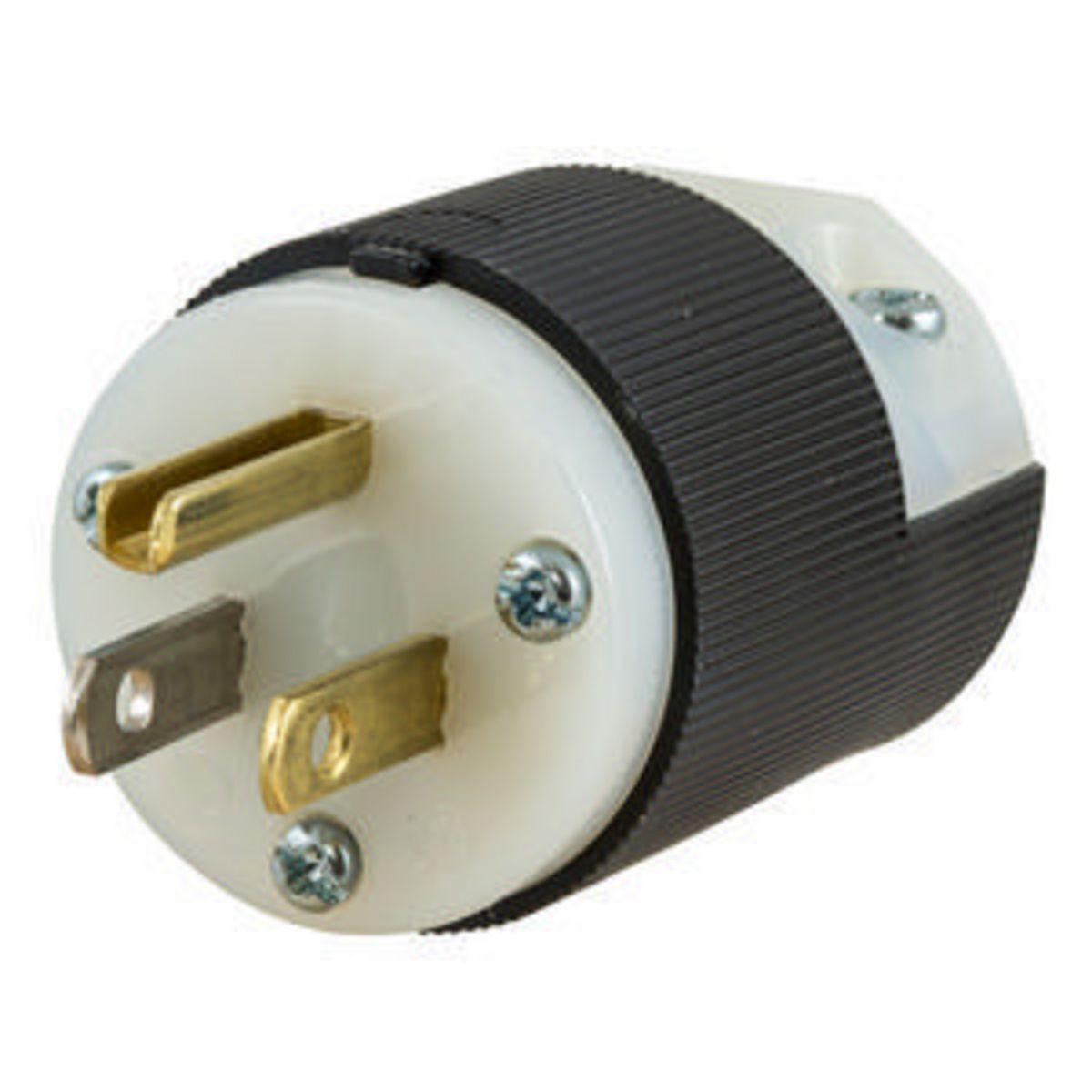

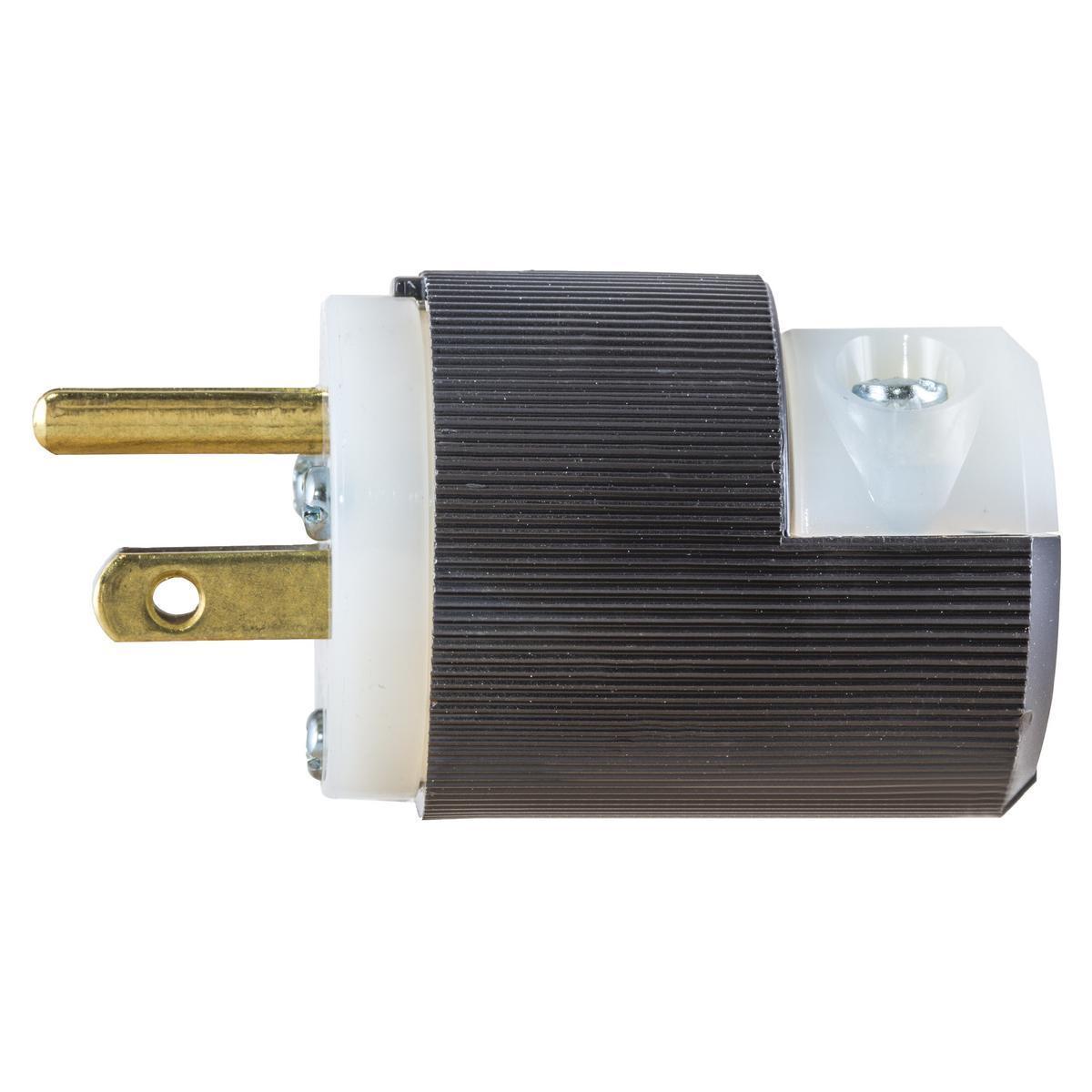

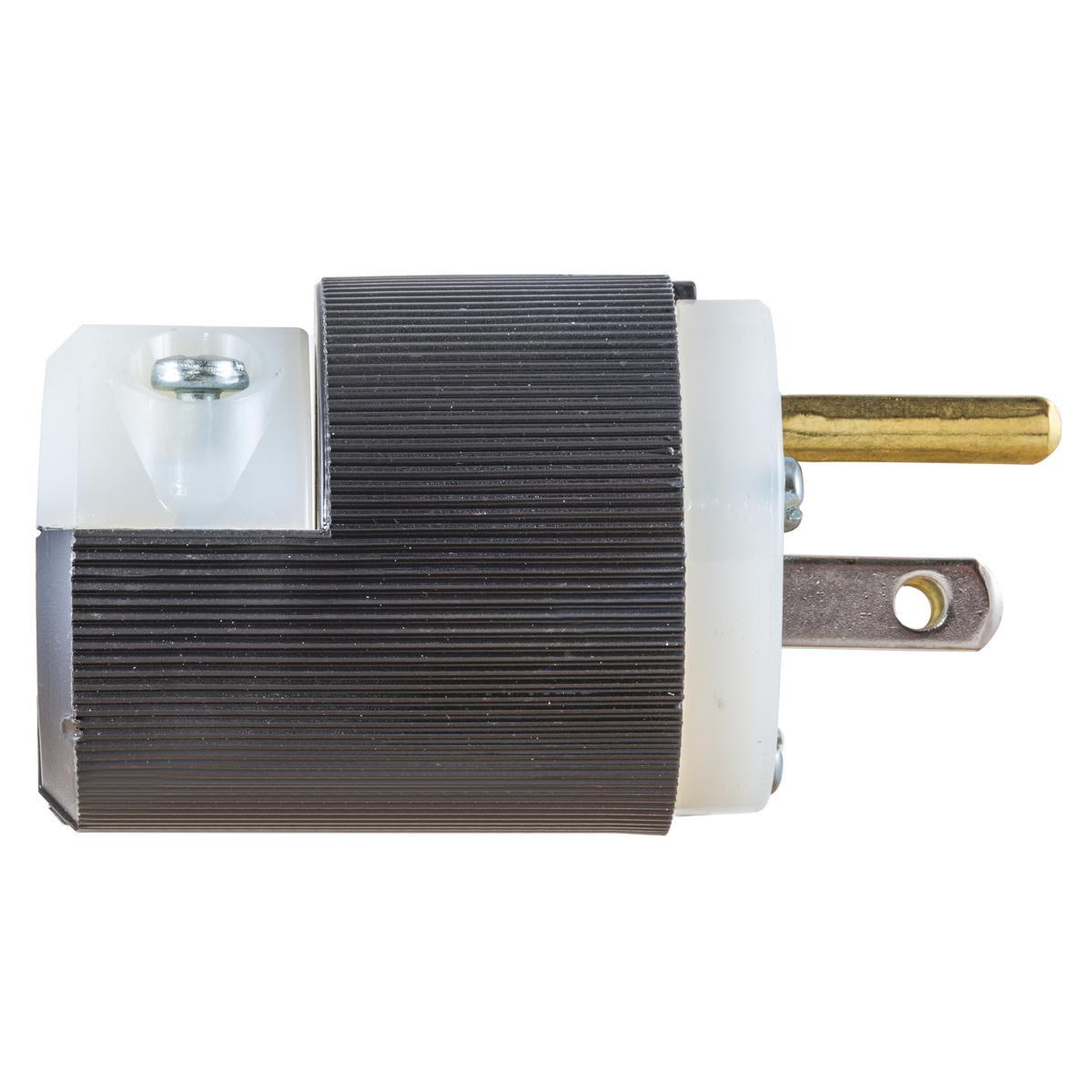

HBL5266C HUB 3W NYLON CAP 6266AH

Mouse over image to zoom, click to enlarge

  • HBL5266C HUB 3W NYLON CAP 6266AH
  • HBL5266C HUB 3W NYLON CAP 6266AH
  • HBL5266C HUB 3W NYLON CAP 6266AH
  • HBL5266C HUB 3W NYLON CAP 6266AH
  • HBL5266C HUB 3W NYLON CAP 6266AH

Description: Hubbell Wiring Device-Kellems Insulgrip®, HBL5266C, Straight Blade Plug, 1-Phase Grounding Male Portable Standard Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black/White, 1.52 x 1.52 x 1.96 in Dimensions

Manufacturer PN: HBL5266C

UPC:  78358517300

Kendall Electric Inc PN: 32647

Invoice Description:

HBL5266C HUB 3W NYLON CAP 6266AH


SPEC SHEET

▸ See All in Straight Blade Plugs


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Insulgrip® HBL5266C 1-Phase Grounding Male Portable Standard Cord Mount Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Straight Blade Devices, Male Plug, Insulgrip-Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A125V, 5-15P, Black and White, Single Pack.
Hubbell Wiring Device-Kellems Insulgrip®, HBL5266C, Straight Blade Plug, 1-Phase Grounding Male Portable Standard Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black/White, 1.52 x 1.52 x 1.96 in Dimensions

Specifications

 Amperage Rating 15 A
 Application Dry Location and Indoor Applications
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.23 to 0.72 in
 Dimensions 1.52 x 1.52 x 1.96 in
 Enclosure IP20
 Grade Commercial/Industrial
 Horsepower 1/2 hp
 Manufacturer Part Number HBL5266C
 Material Polycarbonate
 NEMA Rating 5-15P
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL5266C ; 8909585 ; 11828145 ; 783585173009 ; 78358517300 ; 00783585173009 ; 0783585173009
 Standards/Approvals UL 498 File No. E1706 Listed|UL 94-HB Flammability Rating|CSA C22.2 File No. 42, 280|NEMA WD1/WD5/WD6|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 1-Phase Grounding Male Portable Standard Cord Mount
 Video Links
 Voltage Rating 125 V AC

Features

▪ Ribbed nylon housing is impact and chemical resistant
▪ VARI-SIZE adjustable cord clamp
▪ Fast lead assembly screws
▪ Beveled housing prevents snagging

Resources

 Catalog
 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
