Hubbell

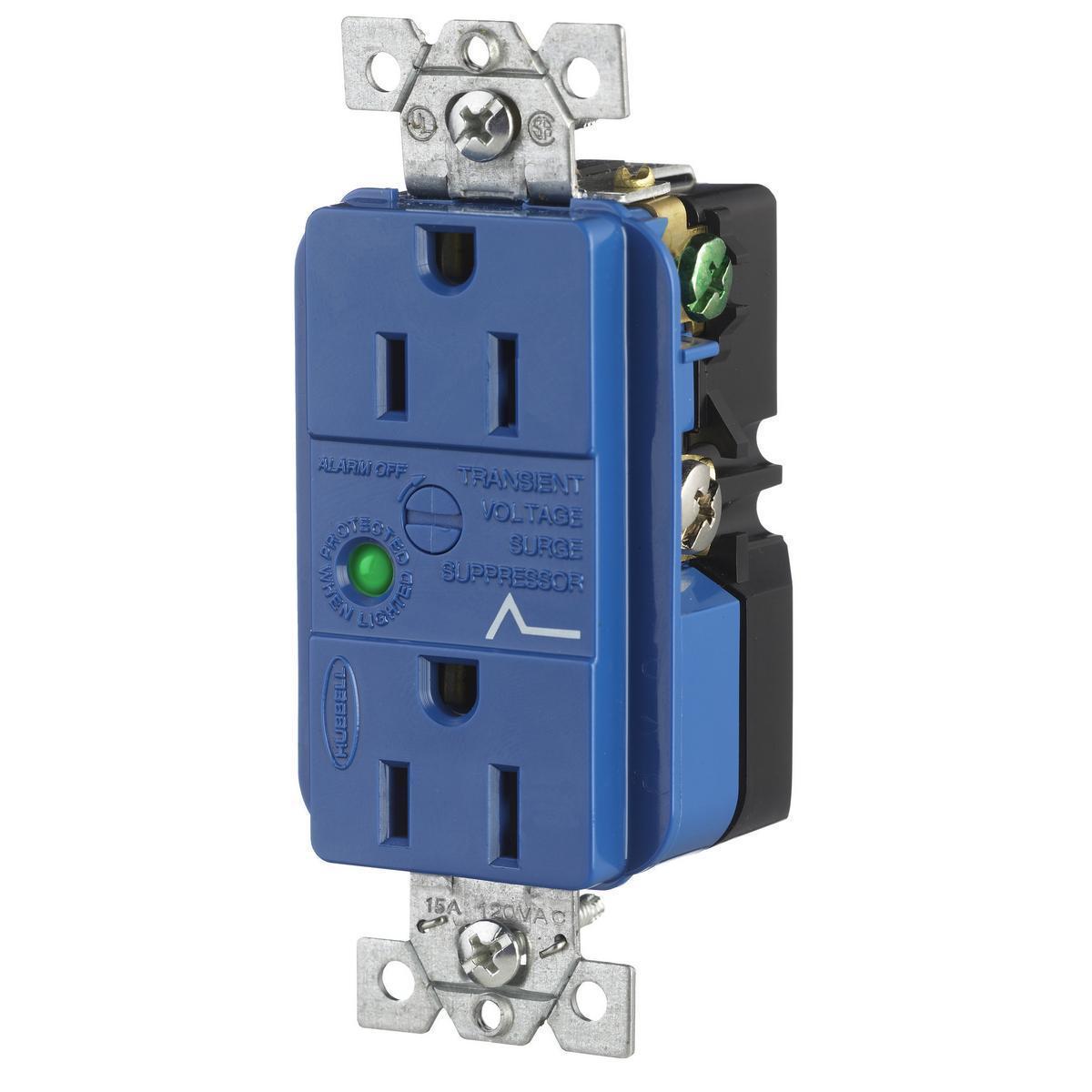

HBL5262SA HUB 2P-3W-15A-125V SURGE SPRSN RCPT W/ALRM BLU

Mouse over image to zoom, click to enlarge

  • HBL5262SA HUB 2P-3W-15A-125V SURGE SPRSN RCPT W/ALRM BLU
  • HBL5262SA HUB 2P-3W-15A-125V SURGE SPRSN RCPT W/ALRM BLU

Description: Hubbell Wiring Device-Kellems SpikeShield®, HBL5262SA, Straight Blade Receptacle, Duplex Grounding, Series: Decorator, 125 V AC, 15 A, 60 Hz Frequency, 1 ph, Straight Blade Outlet, Class: Common/Normal Mode, 5 ns Response, Indicators: LED/Audible Alarm, Screw Terminal Connection, Threaded Mounting, 1.72 in W x 1.6 in D x 4.04 in H Size, 32 to 140 deg F Operating, Composite, Blue, Environmental Conditions: UL 94 V-0 Flammability Rating

Manufacturer PN: HBL5262SA

UPC:  78358506017

Kendall Electric Inc PN: 32646

Invoice Description:

HBL5262SA HUB 2P-3W-15A-125V SURGE SPRSN RCPT W/ALRM BLU


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems SpikeShield® HBL5262SA Decorator Duplex Grounding Straight Blade Receptacle, 125 V AC, 15 A, 60 Hz, 1 Phase

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems SpikeShield®, HBL5262SA, Straight Blade Receptacle, Duplex Grounding, Series: Decorator, 125 V AC, 15 A, 60 Hz Frequency, 1 ph, Straight Blade Outlet, Class: Common/Normal Mode, 5 ns Response, Indicators: LED/Audible Alarm, Screw Terminal Connection, Threaded Mounting, 1.72 in W x 1.6 in D x 4.04 in H Size, 32 to 140 deg F Operating, Composite, Blue, Environmental Conditions: UL 94 V-0 Flammability Rating

Specifications

 Amperage Rating 15 A
 Application For TVSS decorator duplex applications
 Brand Name Hubbell Premise Wiring
 Class Common/Normal Mode
 Color Blue
 Connection Screw Terminal
 Environmental Conditions UL 94 V-0 Flammability Rating
 Frequency Rating 60 Hz
 Manufacturer Part Number HBL5262SA
 Material Composite
 Mounting Threaded
 Operating Temperature 32 to 140 deg F
 Outlet Straight Blade
 PART NUMBER KEYWORDS HBL5262SA ; 8963000 ; 11827404 ; 783585060170 ; 78358506017 ; 00783585060170 ; 0783585060170
 Phase 1
 Response Time 5 ns
 Series Decorator
 Size 1.72 in W x 1.6 in D x 4.04 in H
 Standards/Approvals UL 498/1449 File No. E2186|CSA C22.2 No. 42/285|UL 94 V-0 Flammability Rating
 Type Duplex Grounding
 Type of Indicators LED/Audible Alarm
 Voltage Rating 125 V AC

Features

▪ Distinctive surge symbol provides quick identification
▪ Alert alarm sounds when surge protection is no longer functioning
▪ Automatic self-grounding staple
▪ Power-on indicator light verifies that power is available
