Hubbell

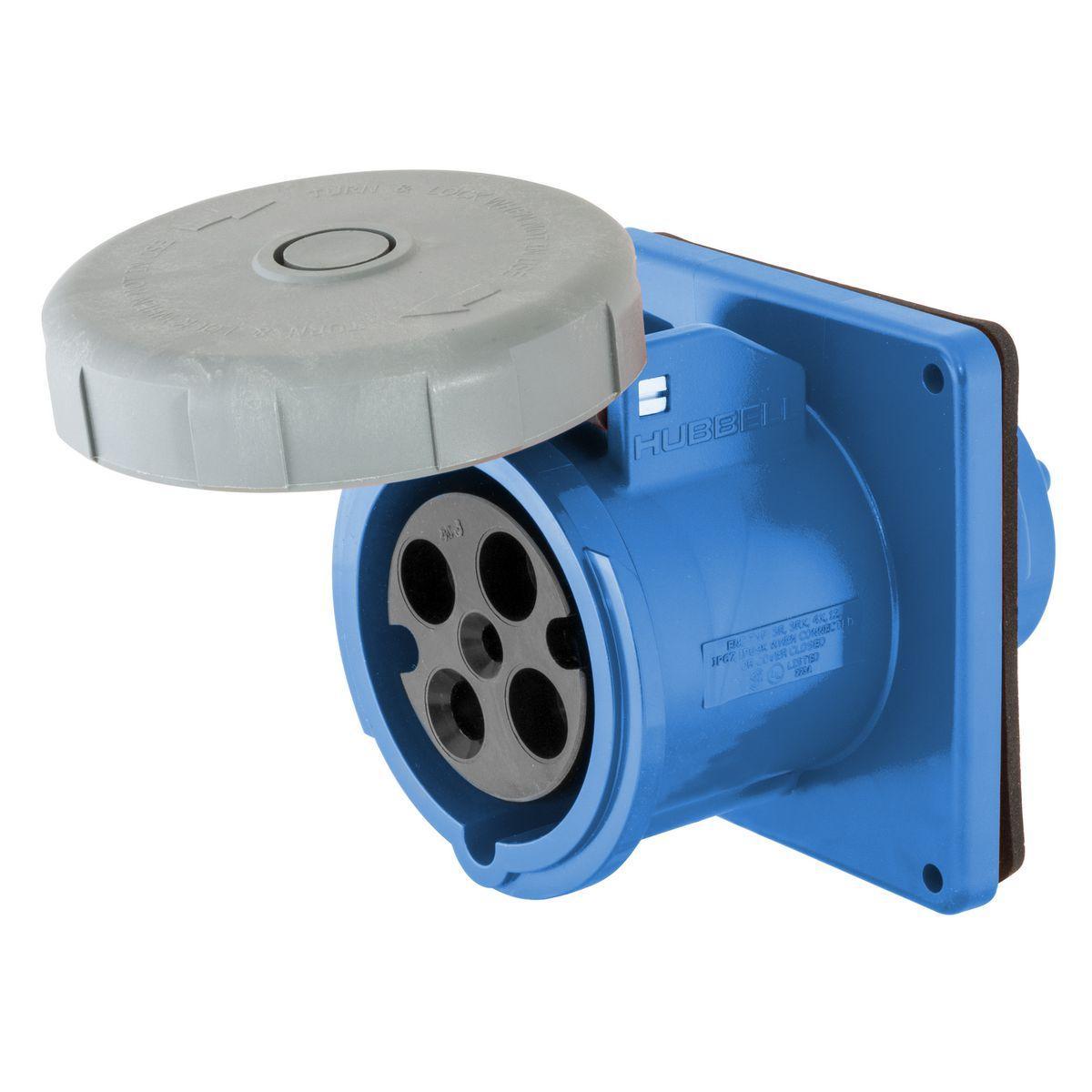

HBL460R9W HUB 3P4W 60A 250V PIN & SLEEVE RECEPTACLE

Mouse over image to zoom, click to enlarge

  • HBL460R9W HUB 3P4W 60A 250V PIN & SLEEVE RECEPTACLE
  • HBL460R9W HUB 3P4W 60A 250V PIN & SLEEVE RECEPTACLE

Description: Hubbell Wiring Device-Kellems, HBL460R9W, Pin and Sleeve Receptacle, 3-Phase Female Grounding Single Flanged Watertight Screw Mount, 250 V AC, 60 A, 5 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 4.5 in W x 4.07 in D x 5.1 in H Dimensions

Manufacturer PN: HBL460R9W

UPC:  78358540493

Kendall Electric Inc PN: 32599

Invoice Description:

HBL460R9W HUB 3P4W 60A 250V PIN & SLEEVE RECEPTACLE


SPEC SHEET

▸ See All in Pin & Sleeve Receptacles


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL460R9W 3-Phase Female Grounding Single Flanged Watertight Screw Mount Pin and Sleeve Receptacle, 250 V AC, 60 A, 3 Poles, 4 Wires, Blue

Log In for Pricing and Availability




Description

The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.
Hubbell Wiring Device-Kellems, HBL460R9W, Pin and Sleeve Receptacle, 3-Phase Female Grounding Single Flanged Watertight Screw Mount, 250 V AC, 60 A, 5 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 4.5 in W x 4.07 in D x 5.1 in H Dimensions

Specifications

 Amperage Rating 60 A
 Application High Ampacity Watertight Connection Applications
 Brand Name Hubbell Premise Wiring
 Color Blue
 Dimensions 4.5 in W x 4.07 in D x 5.1 in H
 Enclosure IP67
 Grade Industrial
 Horsepower 5 hp
 Manufacturer Part Number HBL460R9W
 Material Thermoplastic
 Number of Poles 3
 Number of Wires 4
 Standards/Approvals UL File No. E146032/1682/1686C2/498/94|CSA C22.2 No. 182.2/LR280C|UL Classified to IEC 309-1/309-2|CSA C22.2 No. 0.17 Flammability Rating|CSA File LR280C|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type 3-Phase Female Grounding Single Flanged Watertight Screw Mount
 Voltage Rating 250 V AC

Features

▪ Super tough insulated non-metallic housing
▪ Self-closing gasketed cover
▪ Sequential contact engagement to prevent a momentary over-voltage
▪ Color coded housings for easy identification
