Hubbell

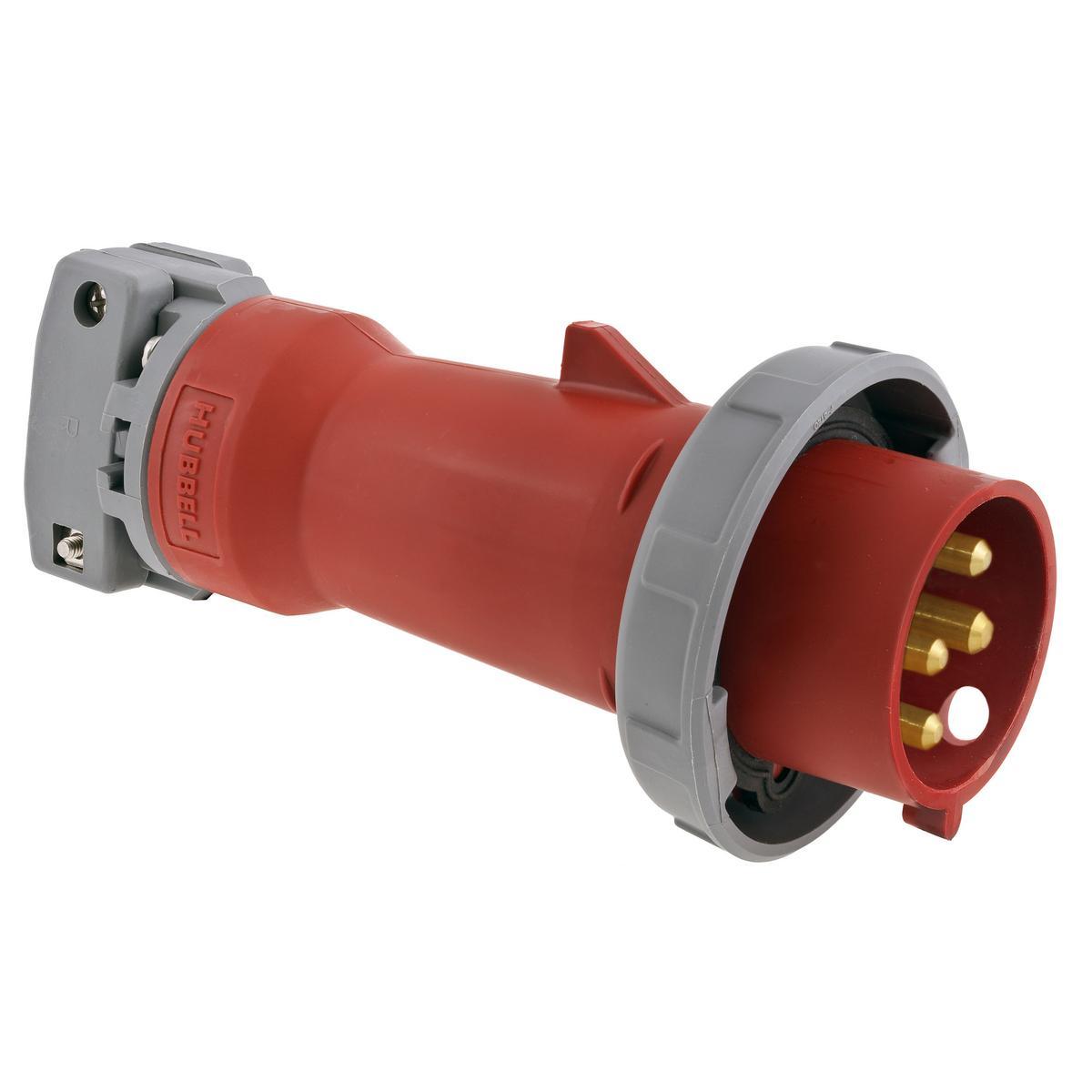

HBL460P7W HUB 3P-4W 60A-480V 3PH PLUG

Mouse over image to zoom, click to enlarge

  • HBL460P7W HUB 3P-4W 60A-480V 3PH PLUG
  • HBL460P7W HUB 3P-4W 60A-480V 3PH PLUG

Description: Hubbell Wiring Device-Kellems, HBL460P7W, Pin and Sleeve Plug, 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 480 V AC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 4.49 in Dia x 10.15 in L Dimensions

Manufacturer PN: HBL460P7W

UPC:  78358540486

Kendall Electric Inc PN: 32595

Invoice Description:

HBL460P7W HUB 3P-4W 60A-480V 3PH PLUG


SPEC SHEET

▸ See All in Pin & Sleeve Plugs


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL460P7W 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 480 V AC, 60 A, 3 Poles, 4 Wires, Red

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems, HBL460P7W, Pin and Sleeve Plug, 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 480 V AC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 4.49 in Dia x 10.15 in L Dimensions

Specifications

 Amperage Rating 60 A
 Application High Ampacity Connections Applications
 Brand Name Hubbell Premise Wiring
 Color Red
 Dimensions 4.49 in Dia x 10.15 in L
 Enclosure IP67
 Grade Industrial
 Manufacturer Part Number HBL460P7W
 Material Composite
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS HBL460P7W ; 8940749 ; 11830439 ; 783585404868 ; 78358540486 ; 00783585404868 ; 0783585404868
 Standards/Approvals File No. E146033|CSA File No. LR280C Certified|RoHS Compliant|UL 498/1682/1686C2 Fie No. E146033|IEC 309-1/309-2
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
 Voltage Rating 480 V AC

Features

▪ Solid one-piece pins for reliable electrical contact
▪ Gasketed sealing ring provides watertight seal
▪ Heavy duty external cord grips

Resources

 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
