Hubbell

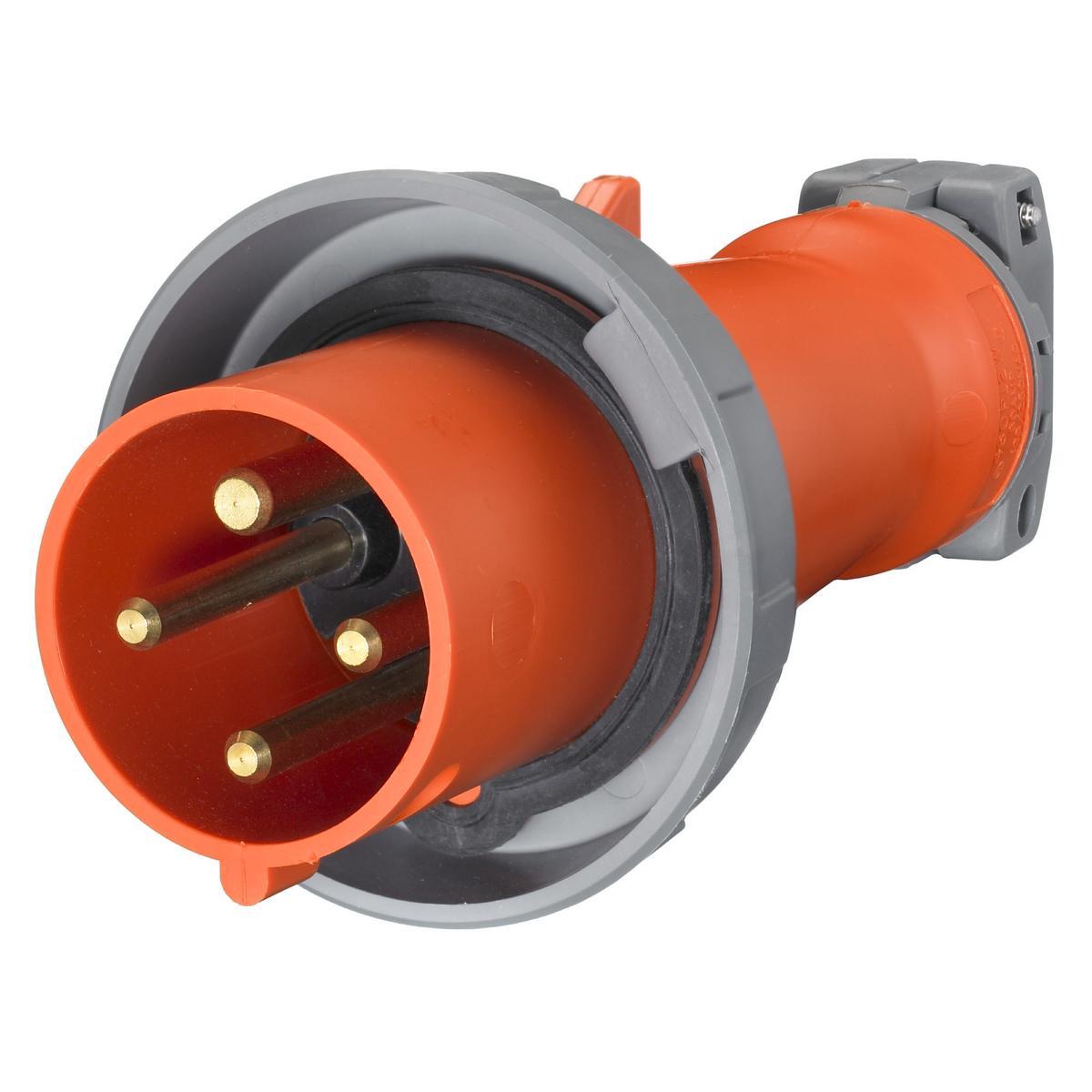

HBL460P12W HUB 3P4W 60A 125/250V PIN&SLEEVE PLUG

Mouse over image to zoom, click to enlarge

  • HBL460P12W HUB 3P4W 60A 125/250V PIN&SLEEVE PLUG
  • HBL460P12W HUB 3P4W 60A 125/250V PIN&SLEEVE PLUG

Description: Hubbell Wiring Device-Kellems, HBL460P12W, Pin and Sleeve Plug, 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount, 125/250 V AC, 60 A, 7.5 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Orange, 4.49 in Dia x 10.15 in L Dimensions

Manufacturer PN: HBL460P12W

UPC:  78358540484

Kendall Electric Inc PN: 2057578

Invoice Description:

HBL460P12W HUB 3P4W 60A 125/250V PIN&SLEEVE PLUG


SPEC SHEET

▸ See All in Pin & Sleeve Mechanical Interlock Device


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL460P12W 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount Pin and Sleeve Plug, 125/250 V AC, 60 A, 3 Poles, 4 Wires, Orange

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The IEC line of plugs and connectors are made with a rugged super tough, 1-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.
Hubbell Wiring Device-Kellems, HBL460P12W, Pin and Sleeve Plug, 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount, 125/250 V AC, 60 A, 7.5 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Orange, 4.49 in Dia x 10.15 in L Dimensions

Specifications

 Amperage Rating 60 A
 Application High Ampacity Connections Applications
 Brand Name Hubbell Premise Wiring
 Color Orange
 Dimensions 4.49 in Dia x 10.15 in L
 Enclosure IP67
 Grade Industrial
 Horsepower 7.5 hp
 Manufacturer Part Number HBL460P12W
 Material Composite
 Number of Poles 3
 Number of Wires 4
 Standards/Approvals UL 498/1686|UL 94 Flammability Rating|IEC 309-1/309-2|CSA C22.2 File No. 0.17|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount
 Voltage Rating 125/250 V AC

Features

▪ Solid one-piece pins for reliable electrical contact
▪ Heavy duty external cord grips
▪ One piece non-metallic housing provides impact and chemical resistance in an insulated body
▪ Watertight neoprene gland seal to prevent water ingress from entering at cable entrance
▪ Gasketed sealing ring provides watertight seal

Resources

 Catalog
 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
