Hubbell

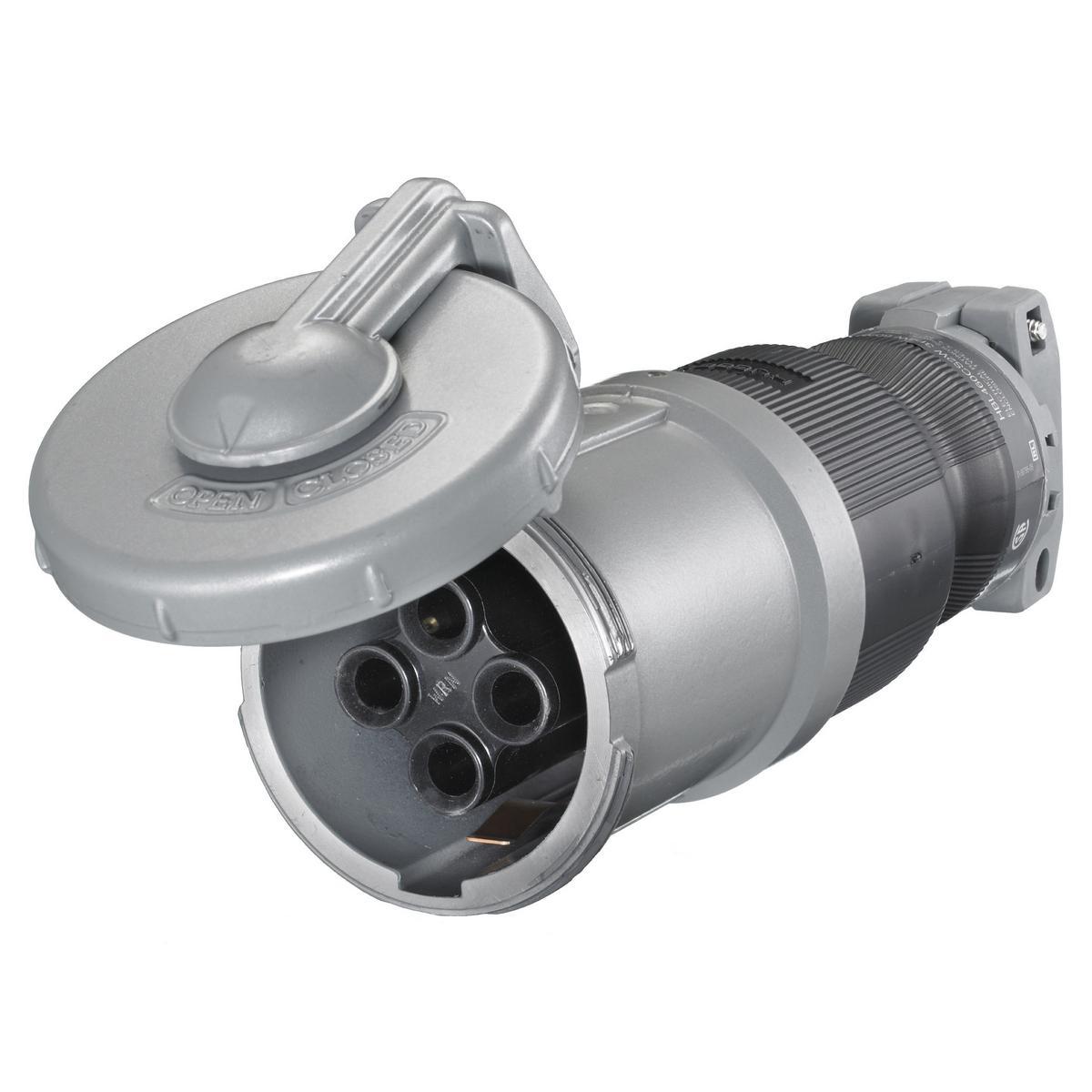

HBL460CS2W HUB 3P4W 60A-480V 3PH INSULGRIP CONNECTOR

Mouse over image to zoom, click to enlarge

  • HBL460CS2W HUB 3P4W 60A-480V 3PH INSULGRIP CONNECTOR
  • HBL460CS2W HUB 3P4W 60A-480V 3PH INSULGRIP CONNECTOR

Description: Hubbell Wiring Device-Kellems, HBL460CS2W, Pin and Sleeve Connector, Female Insulated Watertight Cord Mount, 600 V AC/250 V DC, 60 A, 50 to 400 Hz Frequency, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, Industrial Grade, NEMA 4X Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3.8 in Dia x 10.1 in L Dimensions

Manufacturer PN: HBL460CS2W

UPC:  78358501062

Kendall Electric Inc PN: 32592

Invoice Description:

HBL460CS2W HUB 3P4W 60A-480V 3PH INSULGRIP CONNECTOR


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL460CS2W Female Insulated Watertight Cord Mount Pin and Sleeve Connector, 600 V AC/250 V DC, 60 A, 3 Poles, 4 Wires, Black/Gray

Log In for Pricing and Availability




Description

Metallic where you want it, non-metallic where you need it. Different from Traditional all-metallic devices, Hubbell® pin and sleeve wiring devices are designed to provide metallic shrouding where you want it and a non-metallic housing where you need it. What's more, Hubbell® new watertight Insulgrip® pin and sleeve wiring devices are designed with safety first and foremost. We created the line with plant facility maintenance personnel and a safer industrial work environment in mind. To greatly reduce the likelihood of electrical shock, we developed our exclusive non-metallic watertight system, meaning that with Hubbell® on the job, the mix of electricity and water isn't the threat it once was. So, whether the job calls for a welding outlet in a dry location or a motor disconnect in a wet location, step up to Hubbell® pin and sleeve wiring devices.
Hubbell Wiring Device-Kellems, HBL460CS2W, Pin and Sleeve Connector, Female Insulated Watertight Cord Mount, 600 V AC/250 V DC, 60 A, 50 to 400 Hz Frequency, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, Industrial Grade, NEMA 4X Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3.8 in Dia x 10.1 in L Dimensions

Specifications

 Amperage Rating 60 A
 Application High Ampacity Connections
 Brand Name Hubbell Premise Wiring
 Color Black/Gray
 Dimensions 3.8 in Dia x 10.1 in L
 Enclosure NEMA 4X
 Frequency Rating 50 to 400 Hz
 Grade Industrial
 Manufacturer Part Number HBL460CS2W
 Material Composite
 NEMA Rating 3/4/4X
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS HBL460CS2W ; 11826249 ; 8942716 ; 783585010625 ; 78358501062 ; 00783585010625 ; 0783585010625
 Standards/Approvals UL 498/1686|CSA Certified|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Female Insulated Watertight Cord Mount
 Video Links
 Voltage Rating 600 V AC/250 V DC

Features

▪ Pin chamber confines arcing within the interior chamber
▪ Spring-Loaded, gasketed cover for dust-tight seal
▪ Watertight neoprene sealing glands for reliable seal
