Hubbell

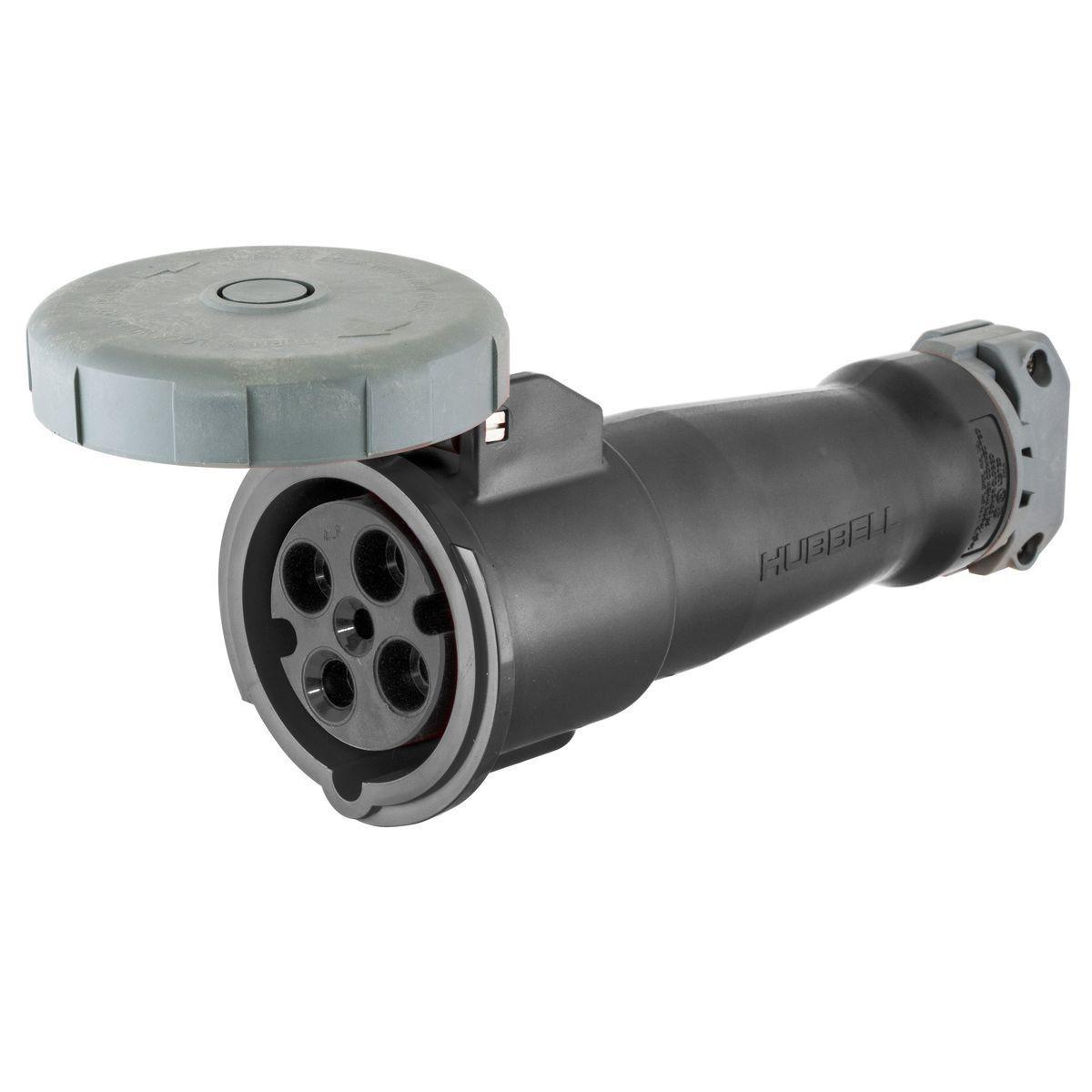

HBL460C5W HUB 3P4W 60A 600V PIN&SLEEVE CONNECTOR

Mouse over image to zoom, click to enlarge

  • HBL460C5W HUB 3P4W 60A 600V PIN&SLEEVE CONNECTOR
  • HBL460C5W HUB 3P4W 60A 600V PIN&SLEEVE CONNECTOR

Description: Hubbell Wiring Device-Kellems, HBL460C5W, Pin and Sleeve Connector, Female Grounding Watertight Cord Mount, 600 V AC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 5.1 in Dia x 11.15 in L Dimensions

Manufacturer PN: HBL460C5W

UPC:  78358540479

Kendall Electric Inc PN: 2077133

Invoice Description:

HBL460C5W HUB 3P4W 60A 600V PIN&SLEEVE CONNECTOR


SPEC SHEET

▸ See All in Pin & Sleeve Connectors


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL460C5W Female Grounding Watertight Cord Mount Pin and Sleeve Connector, 600 V AC, 60 A, 3 Poles, 4 Wires, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems, HBL460C5W, Pin and Sleeve Connector, Female Grounding Watertight Cord Mount, 600 V AC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 5.1 in Dia x 11.15 in L Dimensions

Specifications

 Amperage Rating 60 A
 Application High Ampacity Connections
 Brand Name Hubbell Premise Wiring
 Color Black
 Dimensions 5.1 in Dia x 11.15 in L
 Enclosure IP67
 Grade Industrial
 Manufacturer Part Number HBL460C5W
 Material Composite
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS HBL460C5W ; 8940702 ; 11830434 ; 783585404790 ; 78358540479 ; 00783585404790 ; 0783585404790
 Standards/Approvals IEC 309-1/309-2|CSA File No. LR280C|RoHS Compliant|UL 498/1682/1686C2 File No. E146033
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Female Grounding Watertight Cord Mount
 Voltage Rating 600 V AC

Features

▪ Self-closing gasketed cover
▪ Color coded housings for easy identification
▪ Super tough insulated non-metallic housing

Resources

 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
