Hubbell

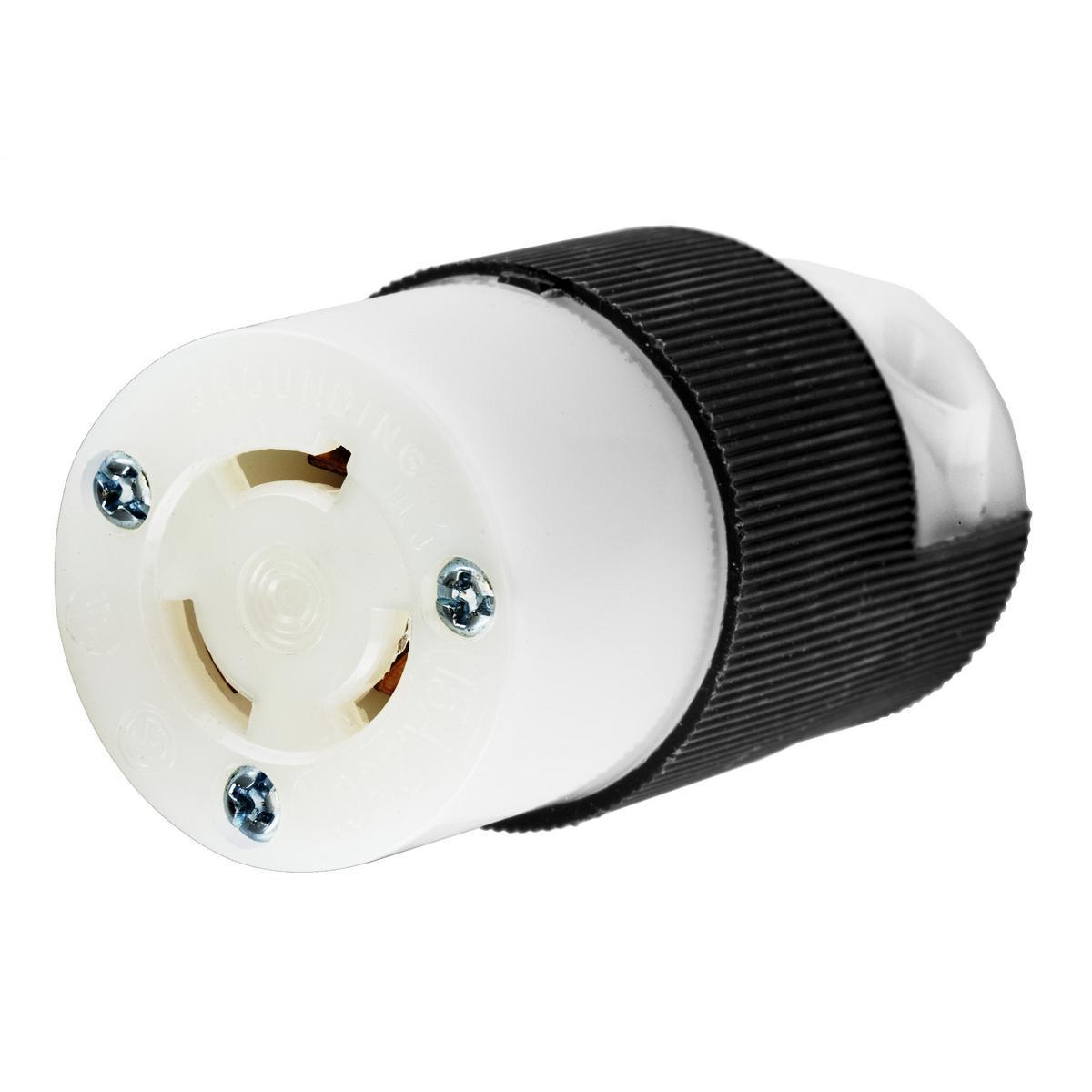

HBL4579C HUB 2P-3W-15A-250V BODY 6566AH

Mouse over image to zoom, click to enlarge

  • HBL4579C HUB 2P-3W-15A-250V BODY 6566AH
  • HBL4579C HUB 2P-3W-15A-250V BODY 6566AH
  • HBL4579C HUB 2P-3W-15A-250V BODY 6566AH

Description: Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL4579C, Locking Connector, Heavy Duty Non-Grounding Cord Mount, Series: HBL®, 250 V AC, 15 A, 2 hp, 2 Pole, 3 Wires, L6-15R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 1.53 x 1.53 x 2.78 in Dimensions

Manufacturer PN: HBL4579C

UPC:  78358517010

Kendall Electric Inc PN: 32589

Invoice Description:

HBL4579C HUB 2P-3W-15A-250V BODY 6566AH


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL4579C HBL® Heavy Duty Non-Grounding Cord Mount Locking Connector, 250 V AC, 15 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Black and White Nylon.
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL4579C, Locking Connector, Heavy Duty Non-Grounding Cord Mount, Series: HBL®, 250 V AC, 15 A, 2 hp, 2 Pole, 3 Wires, L6-15R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 1.53 x 1.53 x 2.78 in Dimensions

Specifications

 Amperage Rating 15 A
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.23 to 0.72 in
 Dimensions 1.53 x 1.53 x 2.78 in
 Enclosure IP20
 Grade Industrial
 Horsepower 2 hp
 Manufacturer Part Number HBL4579C
 Material Nylon
 NEMA Rating L6-15R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL4579C ; 11828113 ; 8909315 ; 783585170107 ; 78358517010 ; 00783585170107 ; 0783585170107
 Series HBL®
 Standards/Approvals UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Heavy Duty Non-Grounding Cord Mount
 Video Links
 Voltage Rating 250 V AC

Features

▪ Superior cord grip design protects terminations from excess strain
▪ Integral VARI-SIZE insert accomodates a wide range of cord diameters
▪ Ribbed nylon housing provides secure, impact and chemical resistant grip
