Hubbell

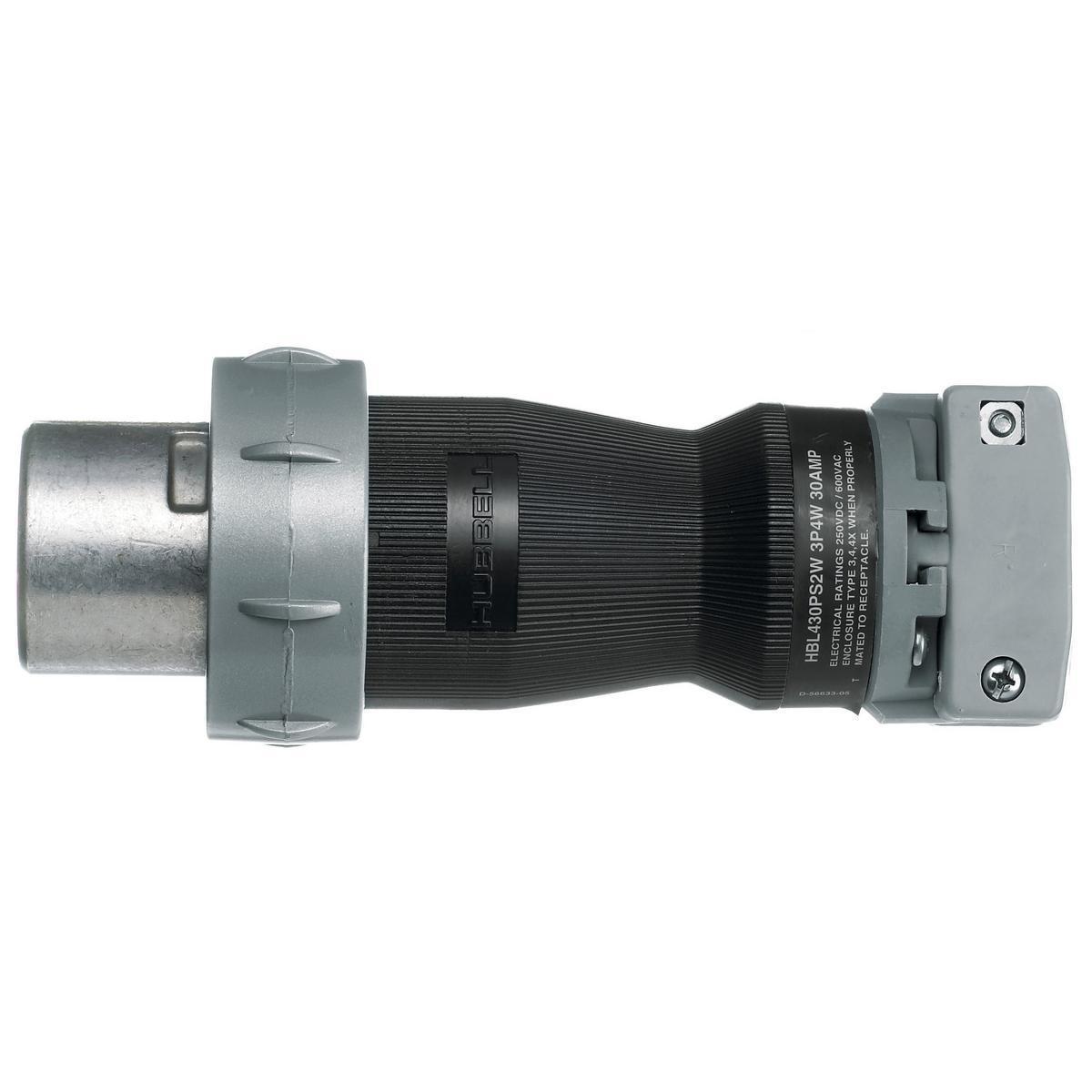

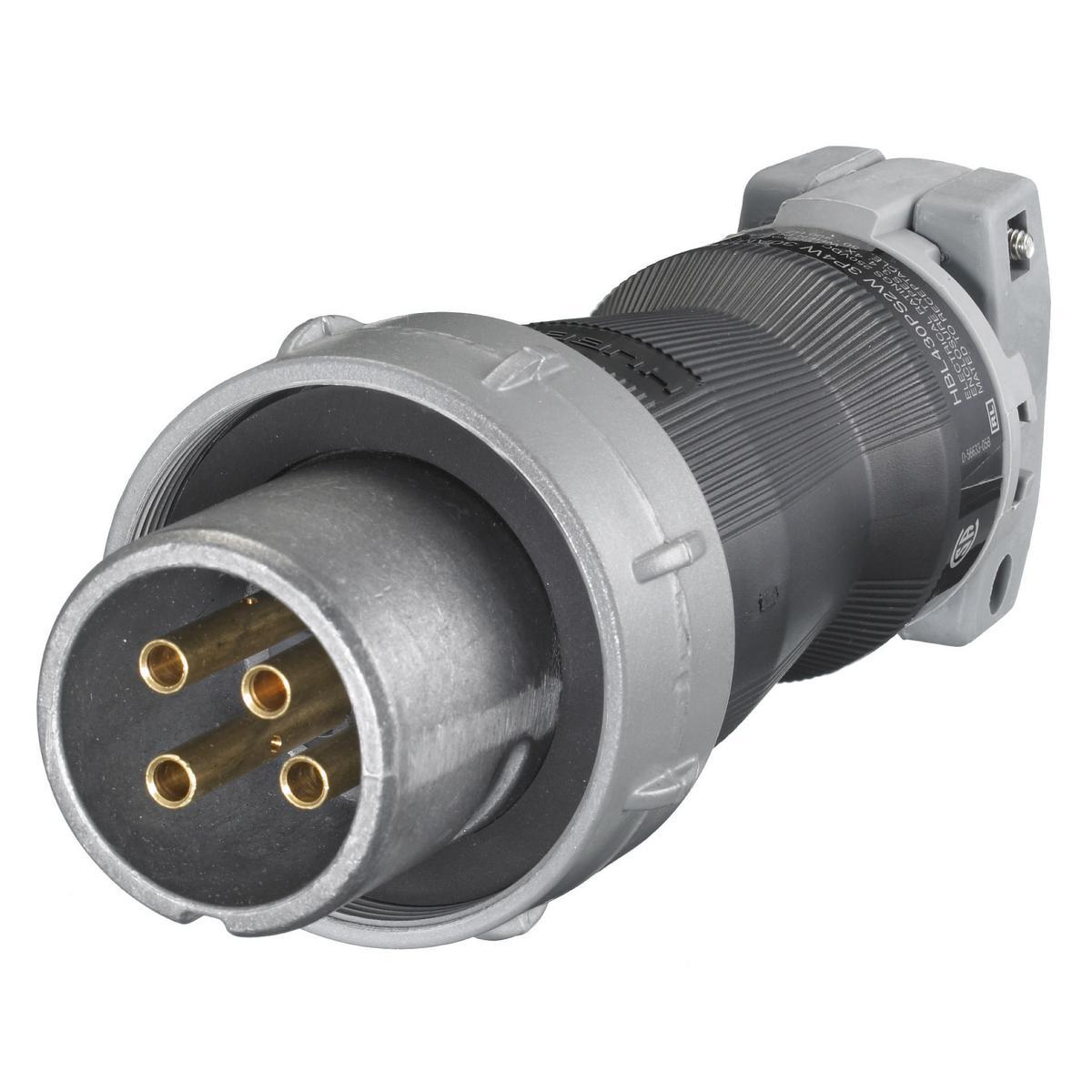

HBL430PS2W HUB 3P4W 30A/600V IGRIP PIN/SLV PLUG STYLE 2

Mouse over image to zoom, click to enlarge

  • HBL430PS2W HUB 3P4W 30A/600V IGRIP PIN/SLV PLUG STYLE 2
  • HBL430PS2W HUB 3P4W 30A/600V IGRIP PIN/SLV PLUG STYLE 2
  • HBL430PS2W HUB 3P4W 30A/600V IGRIP PIN/SLV PLUG STYLE 2

Description: Hubbell Wiring Device-Kellems, HBL430PS2W, Pin and Sleeve Plug, Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 600 V AC/250 V DC, 30 A, 50 to 400 Hz Frequency, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, Industrial Grade, NEMA 3/4/4X Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 7.54 in L Dimensions

Manufacturer PN: HBL430PS2W

UPC:  78358501018

Kendall Electric Inc PN: 32578

Invoice Description:

HBL430PS2W HUB 3P4W 30A/600V IGRIP PIN/SLV PLUG STYLE 2


SPEC SHEET

▸ See All in Pin & Sleeve Plugs


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL430PS2W Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 600 V AC/250 V DC, 30 A, 3 Poles, 4 Wires, Black/Gray

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems, HBL430PS2W, Pin and Sleeve Plug, Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 600 V AC/250 V DC, 30 A, 50 to 400 Hz Frequency, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, Industrial Grade, NEMA 3/4/4X Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 7.54 in L Dimensions

Specifications

 Amperage Rating 30 A
 Application High Ampacity Connections Applications
 Brand Name Hubbell Premise Wiring
 Color Black/Gray
 Dimensions 7.54 in L
 Enclosure NEMA 3/4/4X
 Frequency Rating 50 to 400 Hz
 Grade Industrial
 Manufacturer Part Number HBL430PS2W
 Material Composite
 NEMA Rating 3/4/4X
 Number of Poles 3
 Number of Wires 4
 Standards/Approvals CSA C22.2 File No. 182.1/94/159|UL 498/1682/1686/50/1010
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
 Video Links
 Voltage Rating 600 V AC/250 V DC

Features

▪ Locking ring provides UL Type 4X watertight, dust-tight seal
▪ Catalog number and rating visible while in use
▪ All-Brass sleeve contacts provide reliable electrical contact
