Hubbell

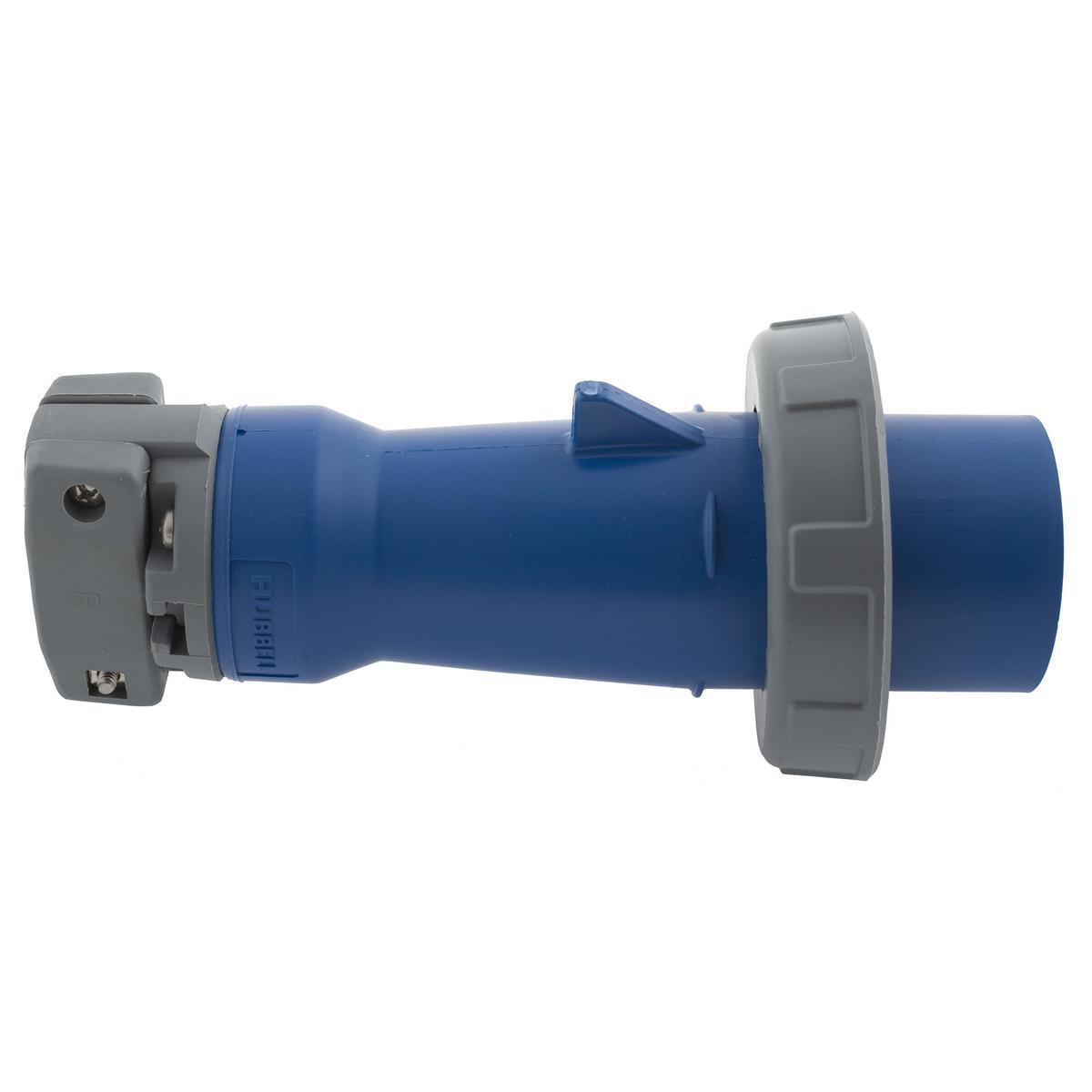

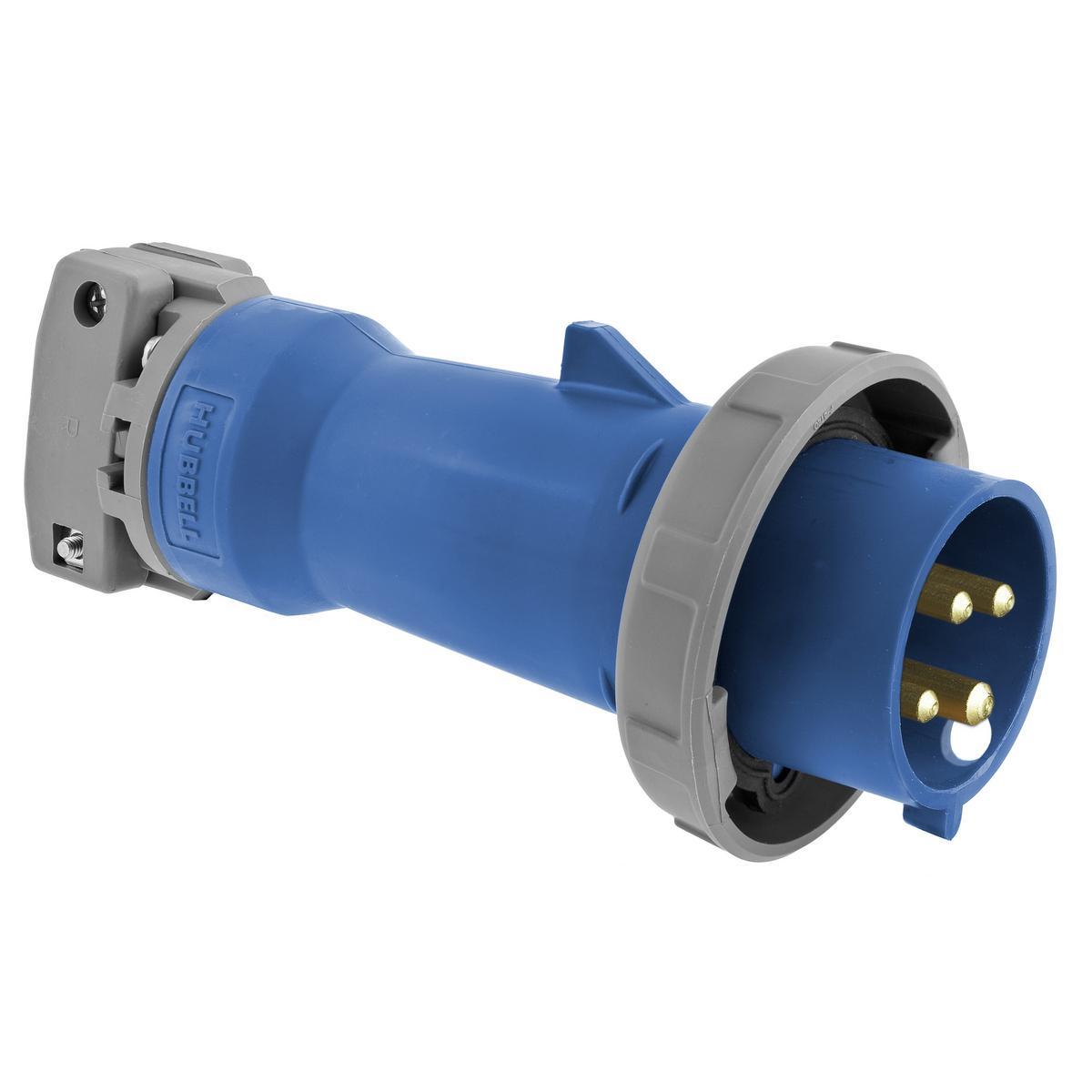

HBL430P9W HUB 3P4W 30A 250V PIN&SLEEVE PLUG

Mouse over image to zoom, click to enlarge

  • HBL430P9W HUB 3P4W 30A 250V PIN&SLEEVE PLUG
  • HBL430P9W HUB 3P4W 30A 250V PIN&SLEEVE PLUG
  • HBL430P9W HUB 3P4W 30A 250V PIN&SLEEVE PLUG

Description: Hubbell Wiring Device-Kellems, HBL430P9W, Pin and Sleeve Plug, 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 250 V AC, 30 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 3.74 in Dia x 8.05 in L Dimensions

Manufacturer PN: HBL430P9W

UPC:  78358540460

Kendall Electric Inc PN: 2049549

Invoice Description:

HBL430P9W HUB 3P4W 30A 250V PIN&SLEEVE PLUG


SPEC SHEET

▸ See All in Pin & Sleeve Plugs


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL430P9W 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 250 V AC, 30 A, 3 Poles, 4 Wires, Blue

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems, HBL430P9W, Pin and Sleeve Plug, 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 250 V AC, 30 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 3.74 in Dia x 8.05 in L Dimensions

Specifications

 Amperage Rating 30 A
 Application High Ampacity Connections Applications
 Brand Name Hubbell Premise Wiring
 Color Blue
 Dimensions 3.74 in Dia x 8.05 in L
 Enclosure IP67
 Grade Industrial
 Manufacturer Part Number HBL430P9W
 Material Composite
 Number of Poles 3
 Number of Wires 4
 Standards/Approvals File No. E146033|CSA File No. LR280C Certified|RoHS Compliant|UL 498/1682/1686C2 Fie No. E146033|IEC 309-1/309-2
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
 Voltage Rating 250 V AC

Features

▪ Solid one-piece pins for reliable electrical contact
▪ Gasketed sealing ring provides watertight seal
▪ Heavy duty external cord grips

Resources

 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
