Hubbell

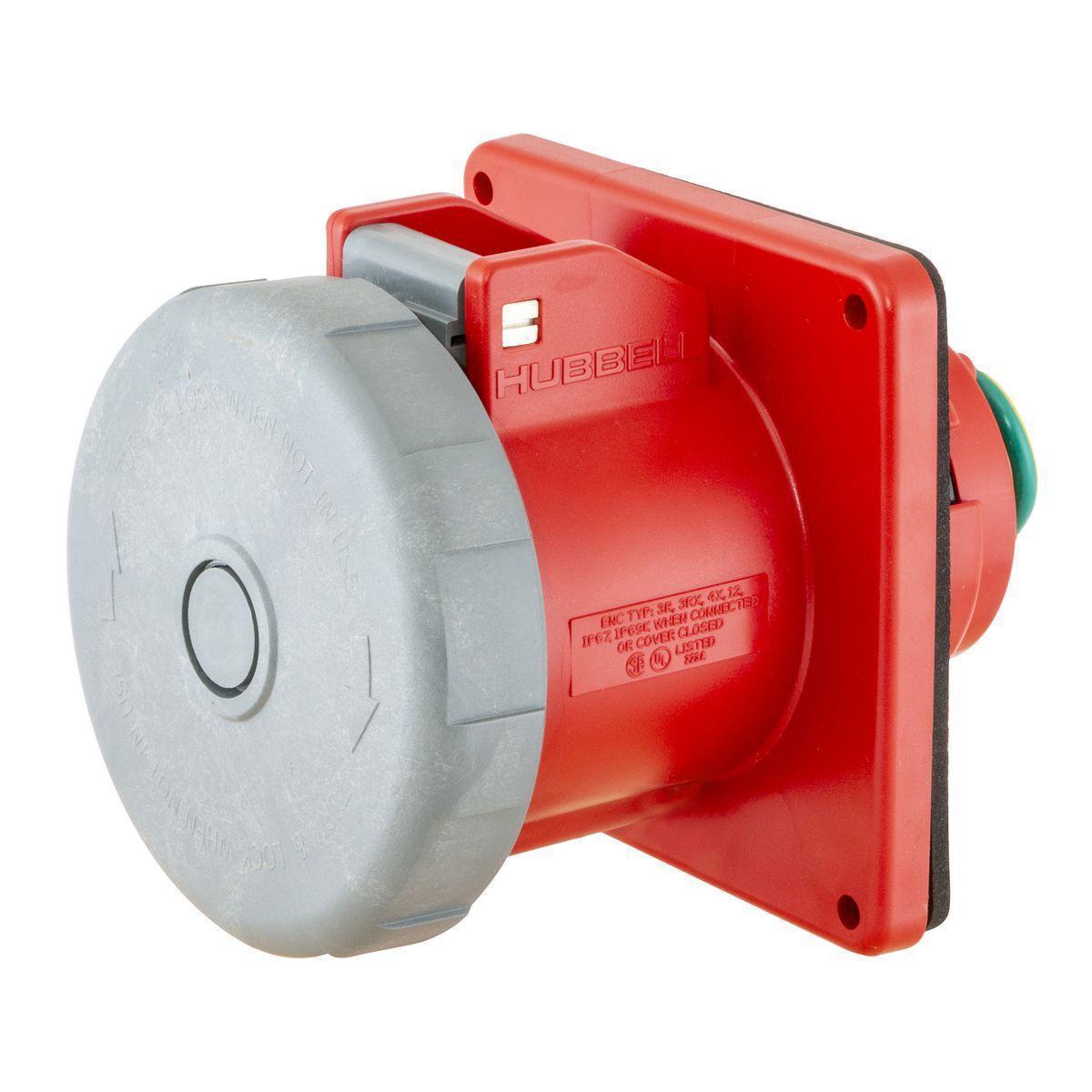

HBL4100R7W HUB 3P4W 100A 480V PIN & SLEEVE RECPTACLE..

Mouse over image to zoom, click to enlarge

  • HBL4100R7W HUB 3P4W 100A 480V PIN & SLEEVE RECPTACLE..
  • HBL4100R7W HUB 3P4W 100A 480V PIN & SLEEVE RECPTACLE..
  • HBL4100R7W HUB 3P4W 100A 480V PIN & SLEEVE RECPTACLE..

Description: Hubbell Wiring Device-Kellems, HBL4100R7W, Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount, 480 V AC, 100 A, 30 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 5-1/2 in L x 5-1/2 in W Dimensions

Manufacturer PN: HBL4100R7W

UPC:  78358540410

Kendall Electric Inc PN: 32565

Invoice Description:

HBL4100R7W HUB 3P4W 100A 480V PIN & SLEEVE RECPTACLE..


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL4100R7W 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount Pin and Sleeve Receptacle, 480 V AC, 100 A, 3 Poles, 4 Wires, Red

Log In for Pricing and Availability




Description

The IEC line of plugs and connectors are made with a rugged super tough, one piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.
Hubbell Wiring Device-Kellems, HBL4100R7W, Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount, 480 V AC, 100 A, 30 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 5-1/2 in L x 5-1/2 in W Dimensions

Specifications

 Amperage Rating 100 A
 Application High Ampacity Watertight Connection Applications
 Brand Name Hubbell Premise Wiring
 Color Red
 Dimensions 5-1/2 in L x 5-1/2 in W
 Enclosure IP67
 Grade Industrial
 Horsepower 30 hp
 Manufacturer Part Number HBL4100R7W
 Material Thermoplastic
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS HBL4100R7W ; 8940186 ; 11830382 ; 783585404103 ; 78358540410 ; 00783585404103 ; 0783585404103
 Standards/Approvals RoHS Compliant|UL 1682/1686C2/498/94 File No. E146032|CSA C22.2 No. 182.1/LR280C/LR285C|IEC 60309-1/IEC 309-1/309-2|CSA C22.2 No. 0.17 Flammability Rating
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount
 Voltage Rating 480 V AC

Features

▪ Self-closing gasketed cover
▪ Color coded housings for easy identification
▪ Super tough insulated non-metallic housing

Resources

 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
