Hubbell

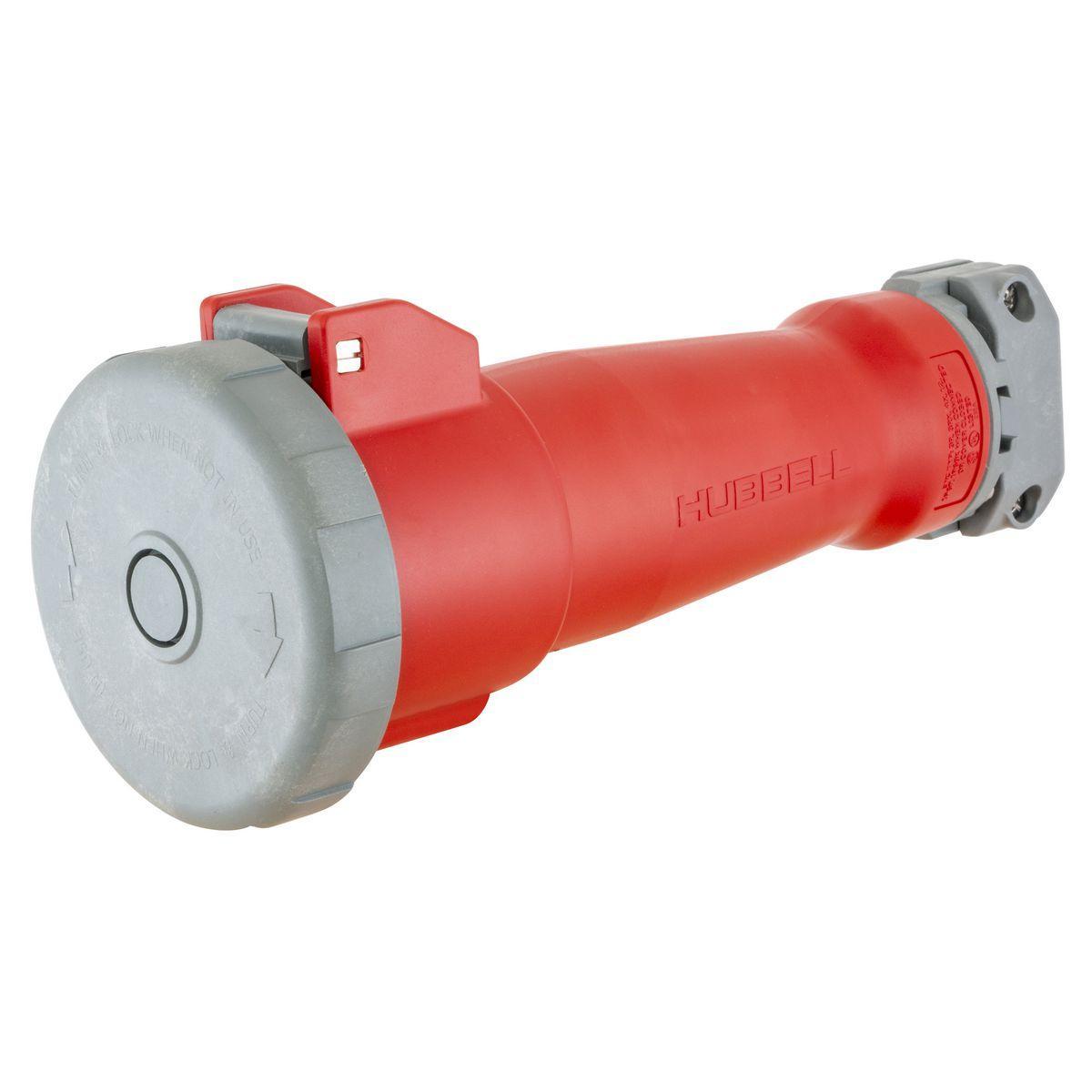

HBL4100C7W HUB 3P4W 100A 480V PIN & SLEEVE CONNECTOR

Mouse over image to zoom, click to enlarge

  • HBL4100C7W HUB 3P4W 100A 480V PIN & SLEEVE CONNECTOR
  • HBL4100C7W HUB 3P4W 100A 480V PIN & SLEEVE CONNECTOR

Description: Hubbell Wiring Device-Kellems, HBL4100C7W, Pin and Sleeve Connector, 3-Phase Watertight Cord Mount, 480 V AC, 100 A, 30 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 5.71 in Dia x 13.57 in L Dimensions

Manufacturer PN: HBL4100C7W

UPC:  78358540399

Kendall Electric Inc PN: 32562

Invoice Description:

HBL4100C7W HUB 3P4W 100A 480V PIN & SLEEVE CONNECTOR


SPEC SHEET

▸ See All in Pin & Sleeve Connectors


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL4100C7W 3-Phase Watertight Cord Mount Pin and Sleeve Connector, 480 V AC, 100 A, 3 Poles, 4 Wires, Red

Log In for Pricing and Availability




Description

The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting/line of sight disconnecting means.
Hubbell Wiring Device-Kellems, HBL4100C7W, Pin and Sleeve Connector, 3-Phase Watertight Cord Mount, 480 V AC, 100 A, 30 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 5.71 in Dia x 13.57 in L Dimensions

Specifications

 Amperage Rating 100 A
 Application High Ampacity Connection Applications
 Brand Name Hubbell Premise Wiring
 Color Red
 Dimensions 5.71 in Dia x 13.57 in L
 Enclosure IP67
 Grade Industrial
 Horsepower 30 hp
 Manufacturer Part Number HBL4100C7W
 Material Composite
 Number of Poles 3
 Number of Wires 4
 Standards/Approvals UL 498|CSA C22.2 No. 182.2|RoHS Compliant|IEC 309-1/309-2
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type 3-Phase Watertight Cord Mount
 Voltage Rating 480 V AC

Features

▪ Self-closing gasketed cover
▪ Color coded housings for easy identification
▪ Super tough insulated non-metallic housing

Resources

 Catalog
 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
