Hubbell

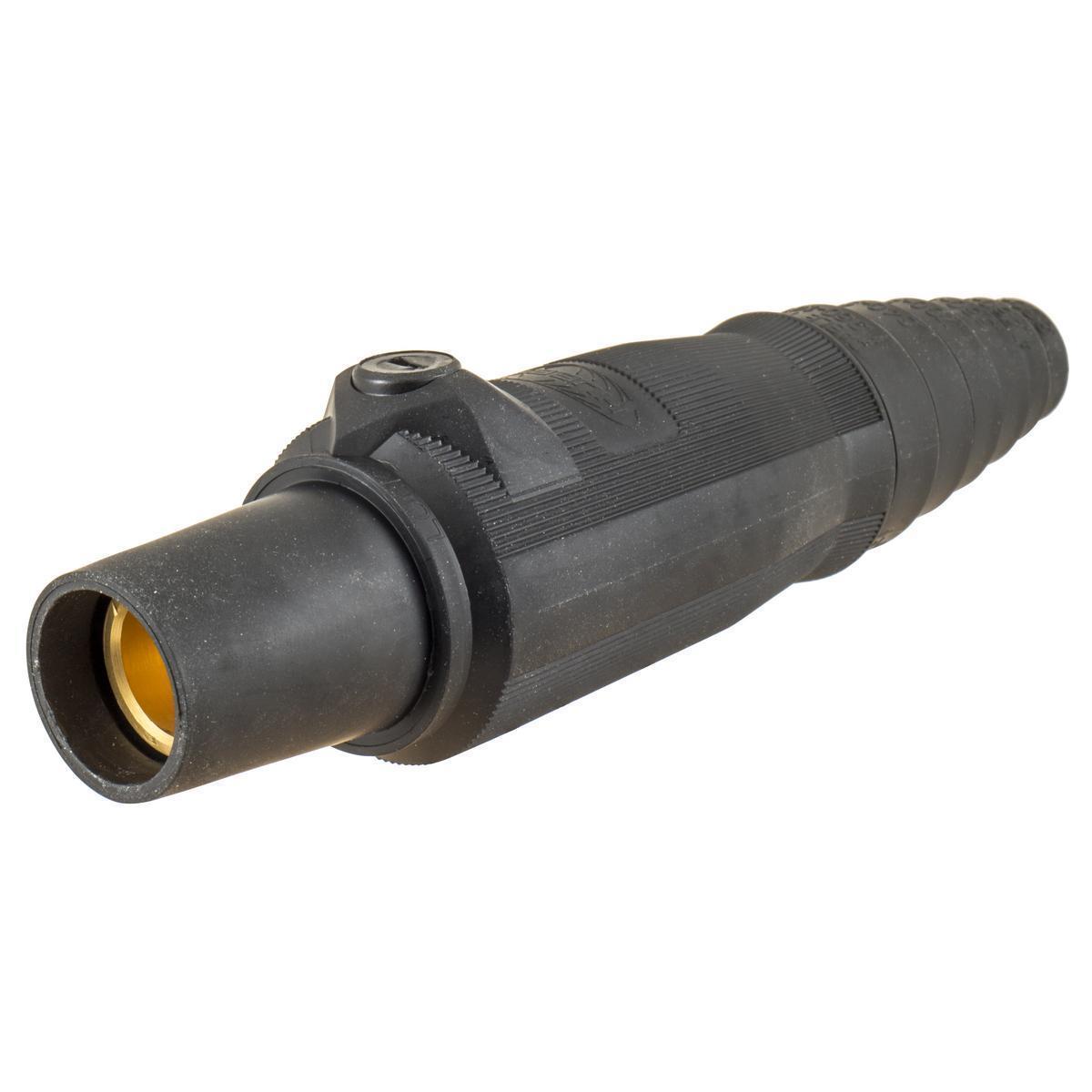

HBL400FBK HUBBELL SINGLE POLE 400A FEMALE PLUG BLACK 78358511372

Mouse over image to zoom, click to enlarge

  • HBL400FBK HUBBELL SINGLE POLE 400A FEMALE PLUG BLACK 78358511372
  • HBL400FBK HUBBELL SINGLE POLE 400A FEMALE PLUG BLACK 78358511372
  • HBL400FBK HUBBELL SINGLE POLE 400A FEMALE PLUG BLACK 78358511372
  • HBL400FBK HUBBELL SINGLE POLE 400A FEMALE PLUG BLACK 78358511372
  • HBL400FBK HUBBELL SINGLE POLE 400A FEMALE PLUG BLACK 78358511372

Description: Hubbell Wiring Device-Kellems, HBL400FBK, Plug, 1-Pole Female Heavy Duty Taper Nose Standard SC/PPC Type, Series: 16 Series, 600 V AC/250 V DC, 400 A, 2/0 to 4/0 AWG Wire, Pressure Screw Terminal Connection, Brass Contact, Composite Housing Material, 3R/4X/12K NEMA Rating, Cable Mounting, Specifications: 1-Pole, 1 ph, 1-Wire, 240000 W, 90 deg C, Black, 1.06 in Dia x 6.84 in L Dimensions

Manufacturer PN: HBL400FBK

UPC:  78358511372

Kendall Electric Inc PN: 2324584

Invoice Description:

HBL400FBK HUBBELL SINGLE POLE 400A FEMALE PLUG BLACK 78358511372


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL400FBK 16 Series 1-Pole Female Heavy Duty Taper Nose Standard SC/PPC Type Plug, 600 V AC/250 V DC, 400 A, 2/0 to 4/0 AWG Wire, Pressure Screw Terminal Connection, 3R/4X/12K NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The name Hubbell® wiring Device-Kellems is synonymous with innovation and quality. In keeping with this reputation, Hubbell® wiring Device-Kellems has once again raised the bar by introducing a redesigned line of innovative, high quality, single pole plugs, receptacles and all the accessories for the single pole connector marketplace. The redesigned Hubbell® single pole connector line is rated for 600 VAC and 250 VDC, up to 400 A for cable sizes #4 through 4/0. These single pole connectors are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. These single pole connectors have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength nonconductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
Hubbell Wiring Device-Kellems, HBL400FBK, Plug, 1-Pole Female Heavy Duty Taper Nose Standard SC/PPC Type, Series: 16 Series, 600 V AC/250 V DC, 400 A, 2/0 to 4/0 AWG Wire, Pressure Screw Terminal Connection, Brass Contact, Composite Housing Material, 3R/4X/12K NEMA Rating, Cable Mounting, Specifications: 1-Pole, 1 ph, 1-Wire, 240000 W, 90 deg C, Black, 1.06 in Dia x 6.84 in L Dimensions

Specifications

 Amperage Rating 400 A
 Application Theatre, Stage and Studio, Attachment Plugs and Receptacles and High Ampacity Connections Applications
 Brand Name Hubbell Premise Wiring
 Color Black
 Connection Type Pressure Screw Terminal
 Contact Material Brass
 Dimensions 1.06 in Dia x 6.84 in L
 Housing Material Composite
 Manufacturer Part Number HBL400FBK
 Mounting Type Cable
 NEMA Rating 3R/4X/12K
 PART NUMBER KEYWORDS HBL400FBK ; 9237302 ; 11827839 ; 783585113722 ; 78358511372 ; 00783585113722 ; 0783585113722
 Series 16 Series
 Specifications 1-Pole, 1 ph, 1-Wire, 240000 W
 Standards/Approvals RoHS Compliant|UL 1691|UL 94 Flammability Rating|CSA C22.2 File No. 0.17|UL 498/94|cULus Listed
 Temperature Rating 90 deg C
 Type 1-Pole Female Heavy Duty Taper Nose Standard SC/PPC Type
 Voltage Rating 600 V AC/250 V DC

Features

▪ Extra Long non-conductive inner sleeve
▪ Turn and Lock Symbol aids in the mating of devices
▪ Easily Identifiable Cable with cut off points for secure fit
