Hubbell

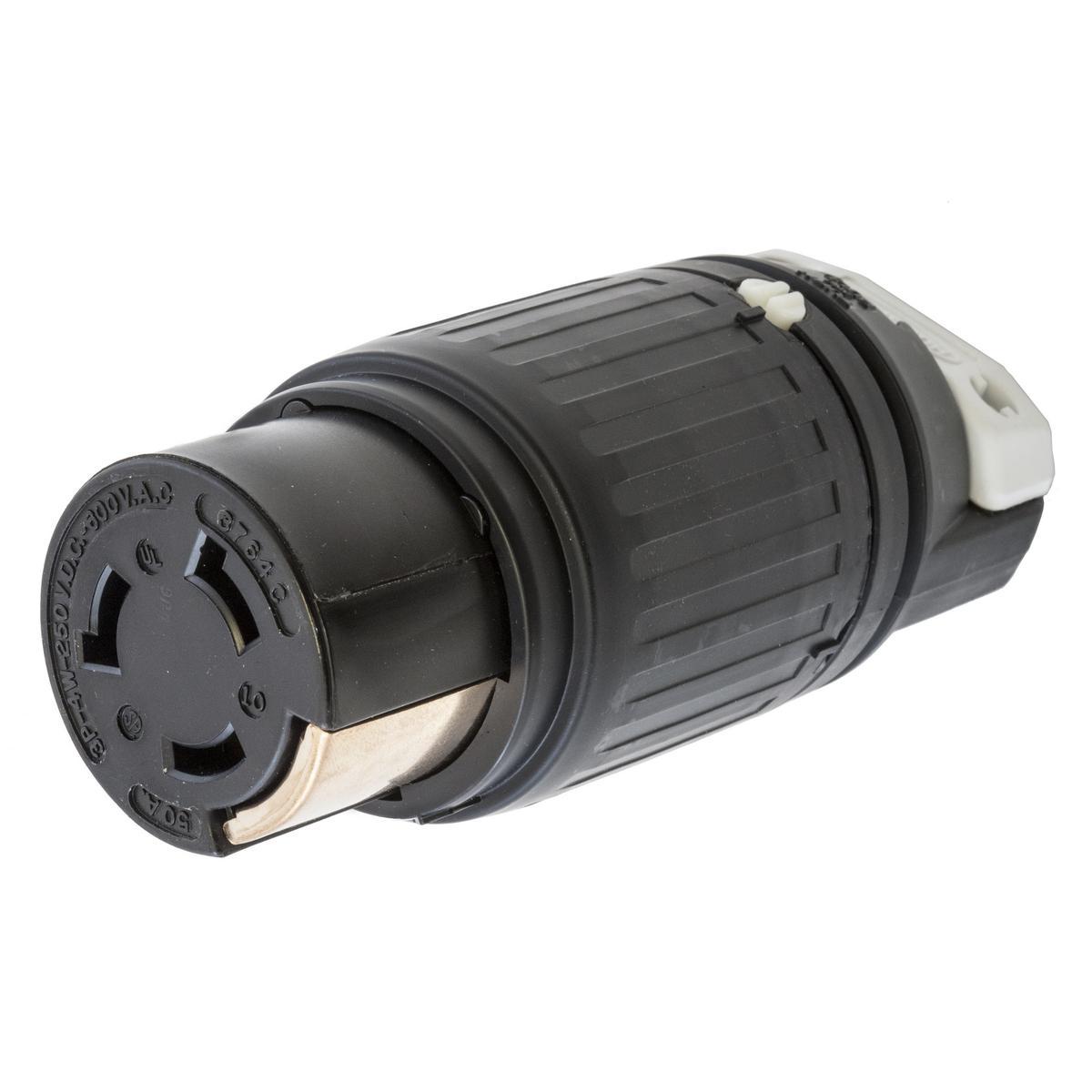

HBL3764C HUB 4W TW-LOCK CONN

Mouse over image to zoom, click to enlarge

  • HBL3764C HUB 4W TW-LOCK CONN
  • HBL3764C HUB 4W TW-LOCK CONN

Description: Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL3764C, Locking Connector, Grounding Heavy Duty Cord Mount, Series: HBL®, 600 V AC/250 V DC, 50 A, 3 Pole, 4 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.59 x 2.59 x 6.5 in Dimensions

Manufacturer PN: HBL3764C

UPC:  78358523642

Kendall Electric Inc PN: 32558

Invoice Description:

HBL3764C HUB 4W TW-LOCK CONN


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3764C HBL® Grounding Heavy Duty Cord Mount Locking Connector, 600 V AC/250 V DC, 50 A, 3 Poles, 4 Wires, Black/White

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL3764C, Locking Connector, Grounding Heavy Duty Cord Mount, Series: HBL®, 600 V AC/250 V DC, 50 A, 3 Pole, 4 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.59 x 2.59 x 6.5 in Dimensions

Specifications

 Amperage Rating 50 A
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 3/4 to 1-1/8 in
 Dimensions 2.59 x 2.59 x 6.5 in
 Enclosure IP20
 Grade Industrial
 Manufacturer Part Number HBL3764C
 Material Nylon
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS HBL3764C ; 8918506 ; 11829460 ; 783585236421 ; 78358523642 ; 00783585236421 ; 0783585236421
 Series HBL®
 Standards/Approvals UL 498|CSA C22.2 No. 42 Certified
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Grounding Heavy Duty Cord Mount
 Video Links
 Voltage Rating 600 V AC/250 V DC

Features

▪ Oversized contacts minimize operating temperature
▪ Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
▪ Heavy duty two-piece external cord clamp provides maximum strain relief
▪ Thermoplastic polyester interior provides heat resistance and impact strength

Resources

 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
