Hubbell

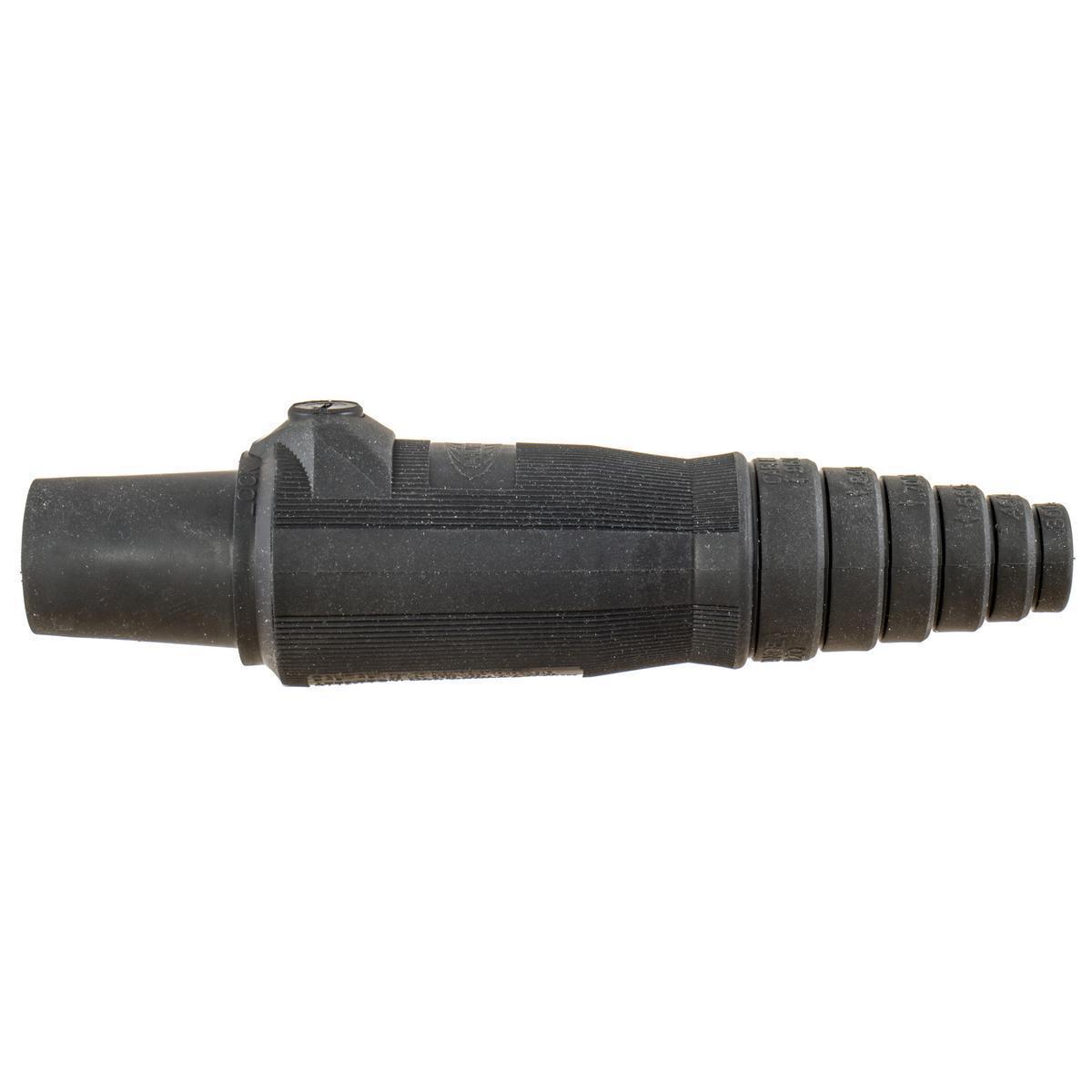

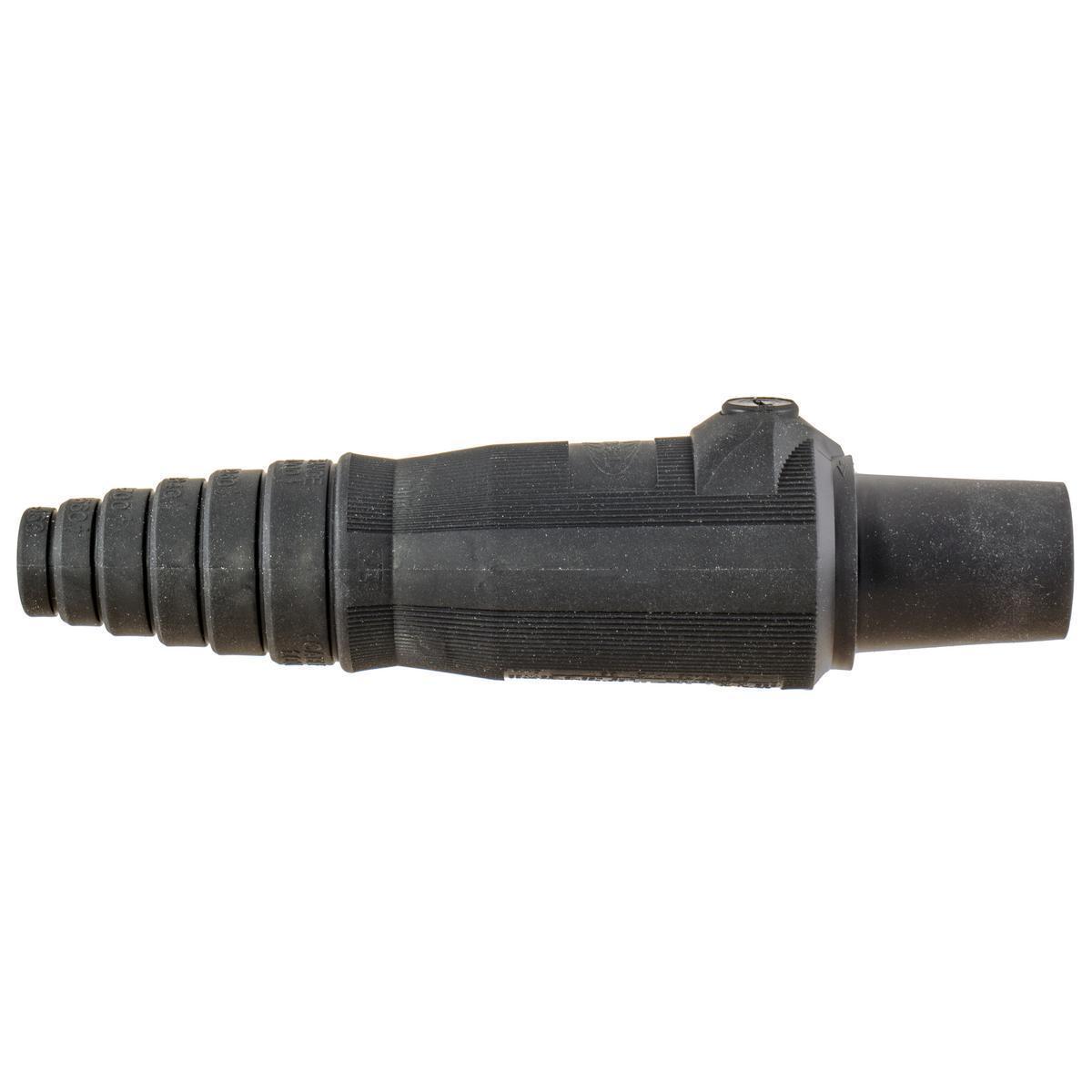

HBL300FBK HUBBELL SINGLEPOLE 300A FEMALE PLUG BLACK

Mouse over image to zoom, click to enlarge

  • HBL300FBK HUBBELL SINGLEPOLE 300A FEMALE PLUG BLACK
  • HBL300FBK HUBBELL SINGLEPOLE 300A FEMALE PLUG BLACK
  • HBL300FBK HUBBELL SINGLEPOLE 300A FEMALE PLUG BLACK
  • HBL300FBK HUBBELL SINGLEPOLE 300A FEMALE PLUG BLACK

Description: Hubbell Wiring Device-Kellems, HBL300FBK, Single Pole Plug, 1-Pole Female Heavy Duty Industrial Grade Standard, Series: 16 Series, 600 V AC/250 V DC, 300 A, 4 to 2/0 AWG Wire, Pressure Screw Terminal Connection, Brass Contact, Composite Housing Material, 3R/4X/12 NEMA Rating, Cable Mounting, Specifications: 1 ph, 1-Wire, 240000 W, Type SC/PPC Cord, 90 deg C, Black, 1.78 in Dia x 7.1 in L Dimensions

Manufacturer PN: HBL300FBK

UPC:  78358511200

Kendall Electric Inc PN: 2254158

Invoice Description:

HBL300FBK HUBBELL SINGLEPOLE 300A FEMALE PLUG BLACK


SPEC SHEET

▸ See All in Single Pole Plugs


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL300FBK 16 Series 1-Pole Female Heavy Duty Industrial Grade Standard Single Pole Plug, 600 V AC/250 V DC, 300 A, 4 to 2/0 AWG Wire, Pressure Screw Terminal Connection, 3R/4X/12 NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems products have long set the standard for innovation, performance, safety and reliability. Temporary power installations are unique and unpredictable and therefore are very demanding. The most critical mission is to keep the equipment running. Hubbell devices have the proven reliability to deliver secure connections allowing you to focus attention on what matters most. Hubbell single pole devices are extremely durable. The double cam contact design can stand up to repeated mating and un-mating. The added protection of UL type 4X, 12 environmental rating stands up to the most abusive environments. The engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved.
Hubbell Wiring Device-Kellems, HBL300FBK, Single Pole Plug, 1-Pole Female Heavy Duty Industrial Grade Standard, Series: 16 Series, 600 V AC/250 V DC, 300 A, 4 to 2/0 AWG Wire, Pressure Screw Terminal Connection, Brass Contact, Composite Housing Material, 3R/4X/12 NEMA Rating, Cable Mounting, Specifications: 1 ph, 1-Wire, 240000 W, Type SC/PPC Cord, 90 deg C, Black, 1.78 in Dia x 7.1 in L Dimensions

Specifications

 Amperage Rating 300 A
 Application High Ampacity Connection Applications and Indoor Dry Environment
 Brand Name Hubbell Premise Wiring
 Color Black
 Connection Type Pressure Screw Terminal
 Contact Material Brass
 Dimensions 1.78 in Dia x 7.1 in L
 Housing Material Composite
 Manufacturer Part Number HBL300FBK
 Mounting Type Cable
 NEMA Rating 3R/4X/12
 Series 16 Series
 Specifications 1 ph, 1-Wire, 240000 W, Type SC/PPC Cord
 Standards/Approvals CSA 22.2. 0.17|cULus Listed|UL 498/1691/94|RoHS Compliant|ANSI/NFPA 70
 Temperature Rating 90 deg C
 Type 1-Pole Female Heavy Duty Industrial Grade Standard
 Voltage Rating 600 V AC/250 V DC

Features

▪ Extra Long non-conductive inner sleeve
▪ Easily Identifiable Cable with cut off points for secure fit
▪ Turn and Lock Symbol aids in the mating of devices
