Hubbell
HBL2733 HUB GRD TL CONN BODY 6534AH

Mouse over image to zoom, click to enlarge

  • HBL2733 HUB GRD TL CONN BODY 6534AH
  • HBL2733 HUB GRD TL CONN BODY 6534AH
  • HBL2733 HUB GRD TL CONN BODY 6534AH
  • HBL2733 HUB GRD TL CONN BODY 6534AH
  • HBL2733 HUB GRD TL CONN BODY 6534AH

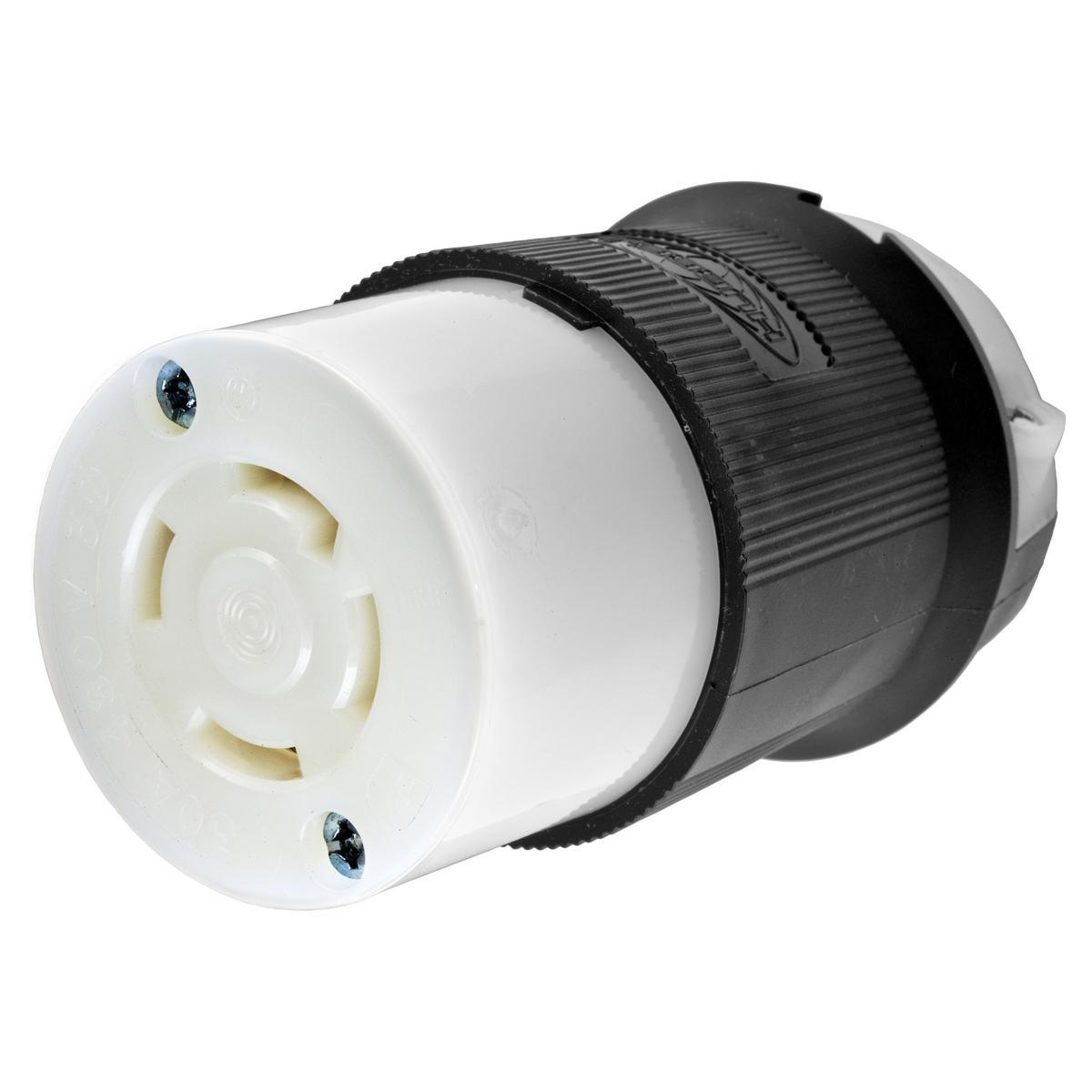

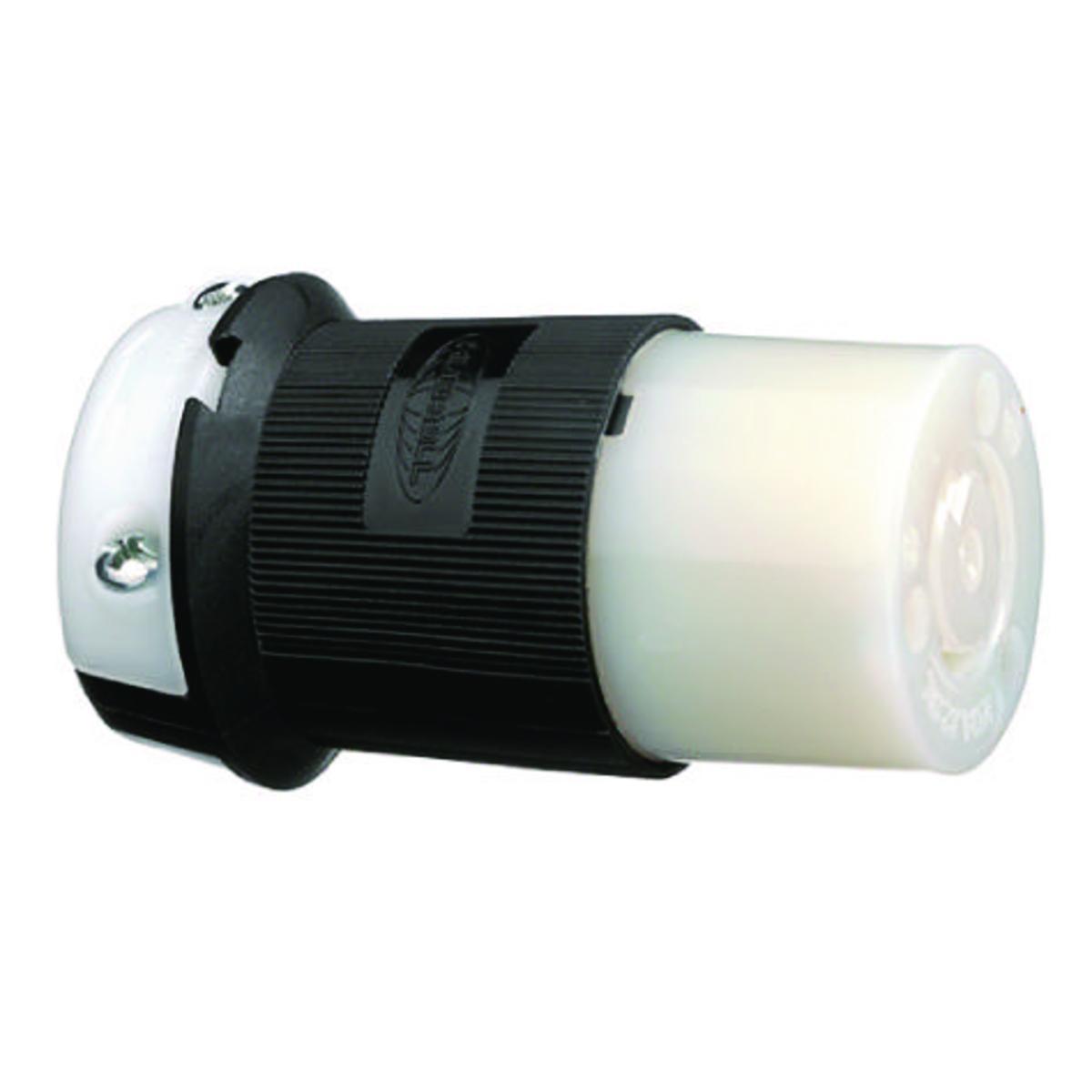

Description: Hubbell Wiring Device-Kellems, HBL2733, Locking Connector, Heavy Duty Grounding Cord Mount, Series: HBL®, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.63 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 3.86 in Dimensions

Manufacturer PN: HBL2733

UPC:  78358503933

Kendall Electric Inc PN: 32504

Invoice Description:

HBL2733 HUB GRD TL CONN BODY 6534AH


SPEC SHEET

▸ See All in Locking Connectors


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL2733 HBL® Heavy Duty Grounding Cord Mount Locking Connector, 480 V AC, 30 A, 3 Poles, 4 Wires, Black/White

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems, HBL2733, Locking Connector, Heavy Duty Grounding Cord Mount, Series: HBL®, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.63 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 3.86 in Dimensions

Specifications

 Amperage Rating 30 A
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.63 to 1.2 in
 Dimensions 2.33 x 2.33 x 3.86 in
 Enclosure IP20
 Grade Industrial
 Horsepower 10 hp
 Manufacturer Part Number HBL2733
 Material Nylon
 NEMA Rating L16-30R
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS HBL2733 ; 8958606 ; 11827243 ; 783585039336 ; 78358503933 ; 00783585039336 ; 0783585039336
 Series HBL®
 Standards/Approvals UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Heavy Duty Grounding Cord Mount
 Video Links
 Voltage Rating 480 V AC

Features

▪ Ribbed nylon housing provides a secure grip and impact and chemical resistance
▪ Superior cord grip design protects terminations from excess strain
▪ Clear, funnel shaped wire entry for ease of termination
▪ Integral dust shield protects wiring chamber from dust or contaminants

Resources

 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
