Hubbell

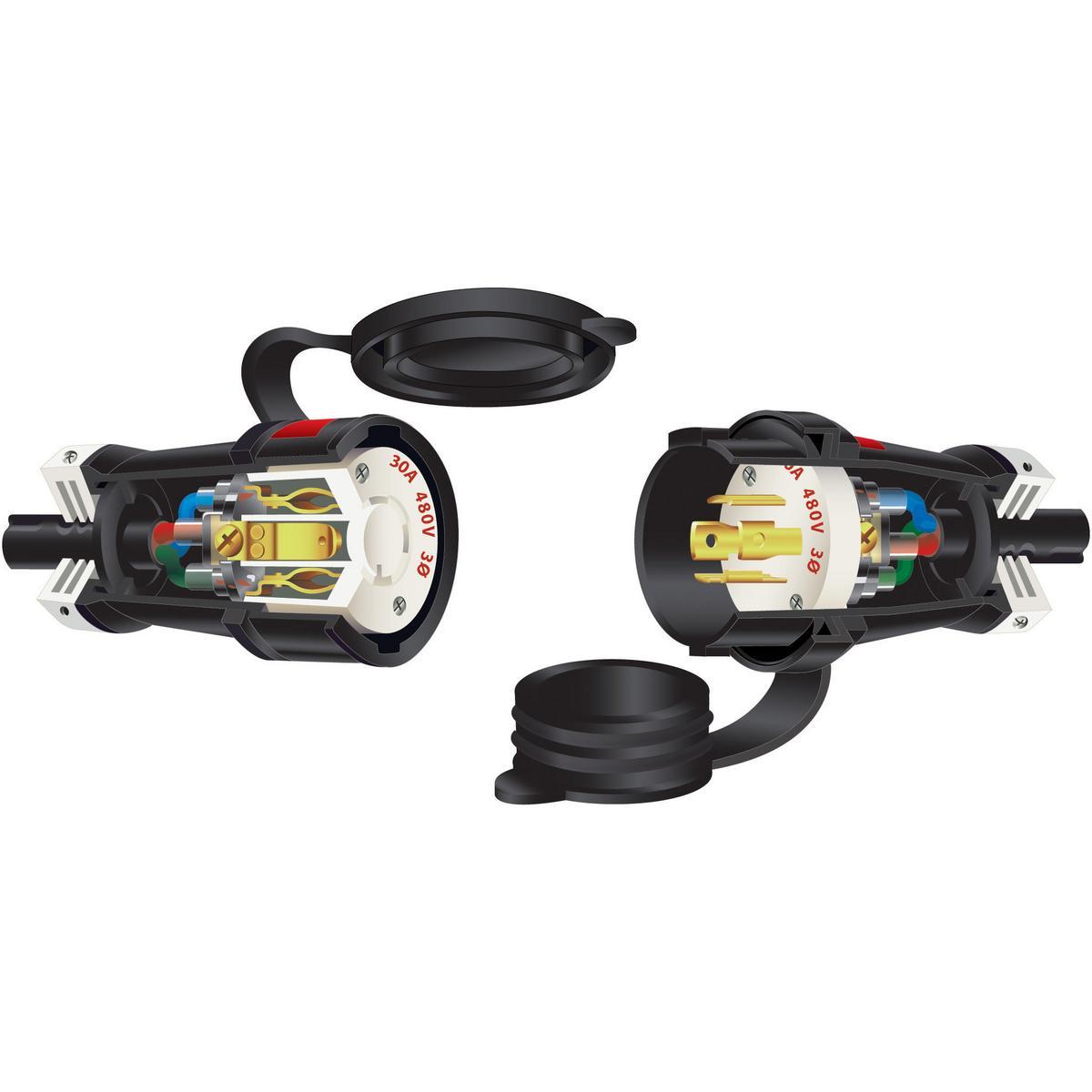

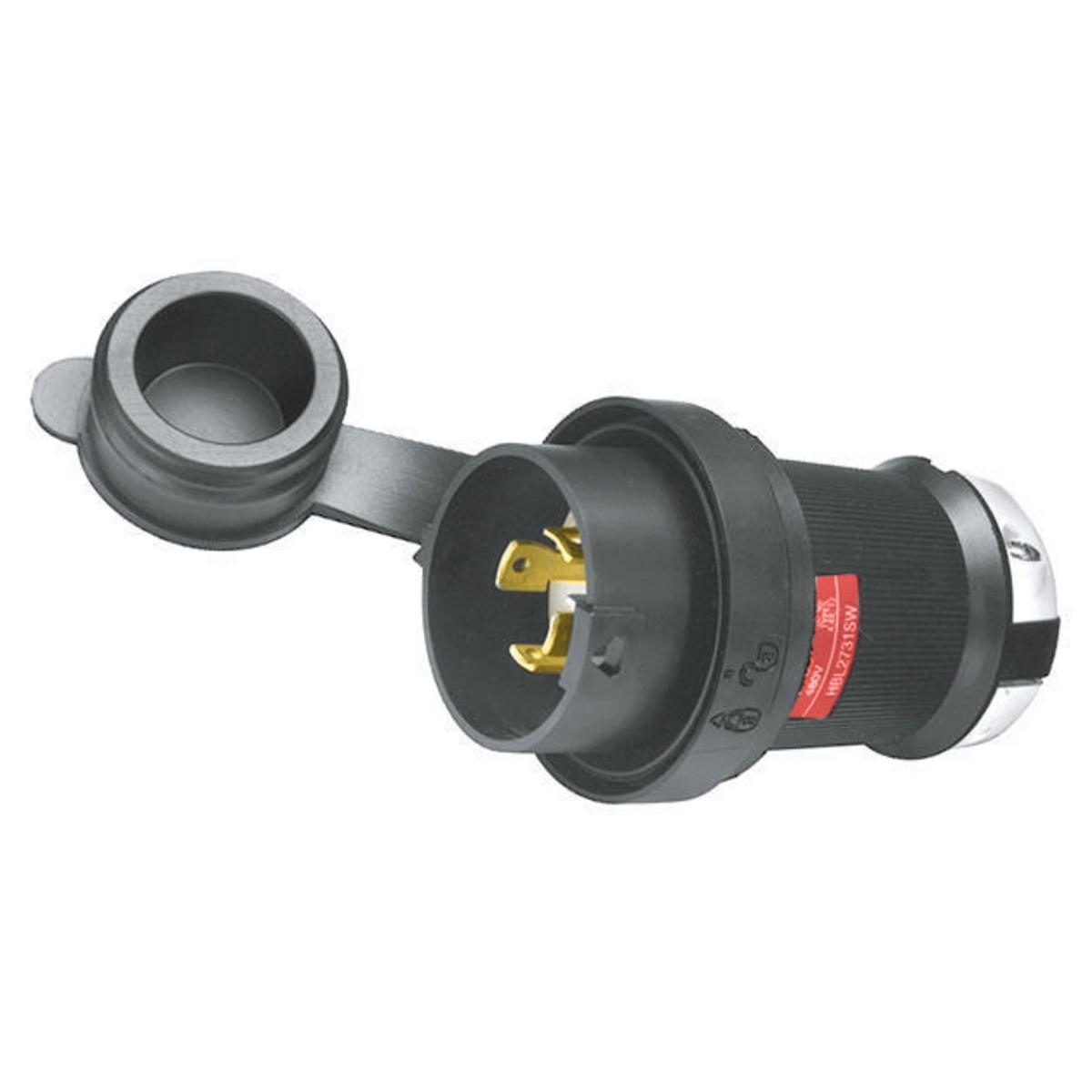

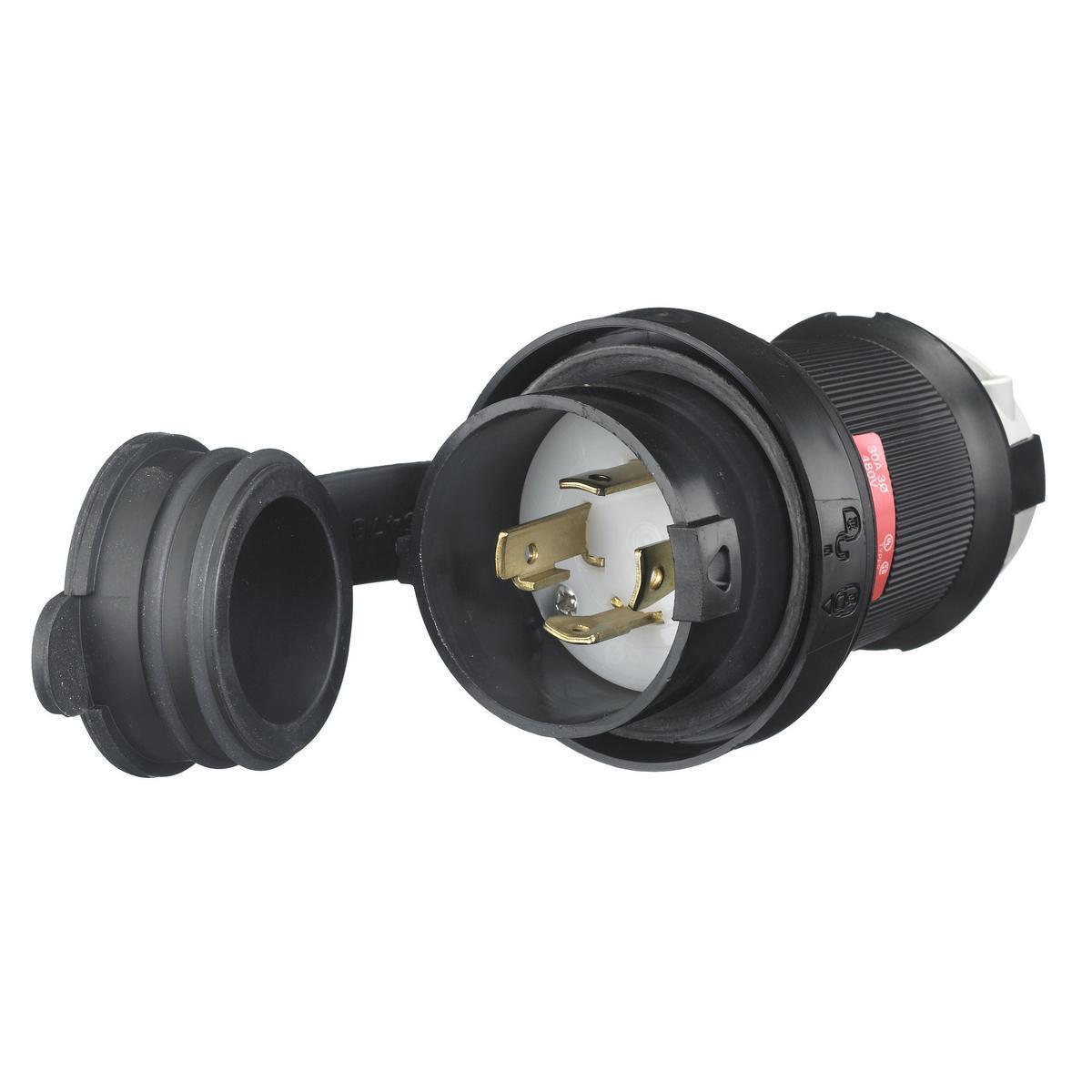

HBL2731SW HUB 3P 4W 3PH 480V 30A SHROUDED PLUG

Mouse over image to zoom, click to enlarge

  • HBL2731SW HUB 3P 4W 3PH 480V 30A SHROUDED PLUG
  • HBL2731SW HUB 3P 4W 3PH 480V 30A SHROUDED PLUG
  • HBL2731SW HUB 3P 4W 3PH 480V 30A SHROUDED PLUG
  • HBL2731SW HUB 3P 4W 3PH 480V 30A SHROUDED PLUG
  • HBL2731SW HUB 3P 4W 3PH 480V 30A SHROUDED PLUG

Description: Hubbell Wiring Device-Kellems, HBL2731SW, Locking Plug, 3-Phase Grounding Male Standard Watertight Cord Mount, Series: HBL®, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in Dimensions

Manufacturer PN: HBL2731SW

UPC:  78358523192

Kendall Electric Inc PN: 32503

Invoice Description:

HBL2731SW HUB 3P 4W 3PH 480V 30A SHROUDED PLUG


SPEC SHEET

▸ See All in Locking Plugs


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL2731SW HBL® 3-Phase Grounding Male Standard Watertight Cord Mount Locking Plug, 480 V AC, 30 A, 3 Poles, 4 Wires, Black/White

Log In for Pricing and Availability




Description

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-30P, Screw Terminal, Black PBT housing, White PBT clamps.
Hubbell Wiring Device-Kellems, HBL2731SW, Locking Plug, 3-Phase Grounding Male Standard Watertight Cord Mount, Series: HBL®, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in Dimensions

Specifications

 Amperage Rating 30 A
 Application Power Connection Applications
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.35 to 1.15 in
 Dimensions 2.94 x 2.94 x 4.40 in
 Enclosure NEMA 4/4X/12/IP66
 Grade Industrial
 Horsepower 10 hp
 Manufacturer Part Number HBL2731SW
 Material Composite
 NEMA Rating L16-30P
 Number of Poles 3
 Number of Wires 4
 Series HBL®
 Standards/Approvals RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL94 V-0 Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 3-Phase Grounding Male Standard Watertight Cord Mount
 Video Links
 Voltage Rating 480 V AC

Features

▪ UL Type 4X Environmental seal protects connection while in use
▪ Impact resistant shroud protects blades against bending and breaking
▪ Reduces exposure to arcing when connecting or disconnecting under load
▪ Superior cord grip design protects terminations from excess strain
