Hubbell

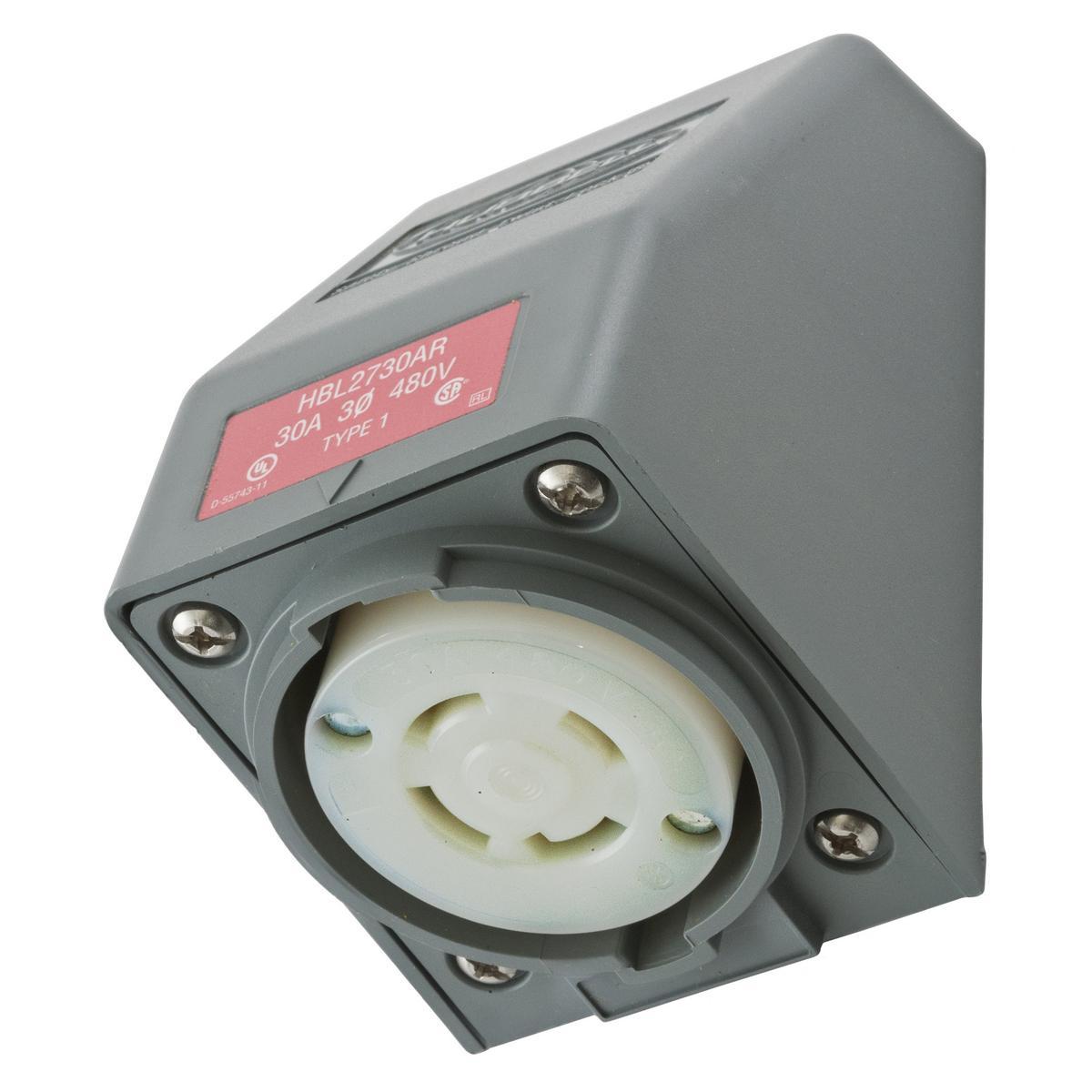

HBL2730AR HUB 3P 4W 3PH 480V 30A ANGLED SHROUDED RECPT..

Mouse over image to zoom, click to enlarge

  • HBL2730AR HUB 3P 4W 3PH 480V 30A ANGLED SHROUDED RECPT..
  • HBL2730AR HUB 3P 4W 3PH 480V 30A ANGLED SHROUDED RECPT..

Description: Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud®, HBL2730AR, Locking Receptacle, 3-Phase Heavy Duty Single Screw Mount, Series: HBL®, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Valox™ Gray/White, 4.77 x 2.85 x 3.14 in Dimensions

Manufacturer PN: HBL2730AR

UPC:  78358523480

Kendall Electric Inc PN: 32499

Invoice Description:

HBL2730AR HUB 3P 4W 3PH 480V 30A ANGLED SHROUDED RECPT..


SPEC SHEET

▸ See All in Locking Receptacles


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2730AR HBL® 3-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 V AC, 30 A, 3 Poles, 4 Wires, Gray/White

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud®, HBL2730AR, Locking Receptacle, 3-Phase Heavy Duty Single Screw Mount, Series: HBL®, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Valox™ Gray/White, 4.77 x 2.85 x 3.14 in Dimensions

Specifications

 Amperage Rating 30 A
 Brand Name Hubbell Premise Wiring
 Color Gray/White
 Dimensions 4.77 x 2.85 x 3.14 in
 Grade Industrial
 Horsepower 10 hp
 Manufacturer Part Number HBL2730AR
 Material Valox™
 NEMA Rating L16-30R
 Number of Poles 3
 Number of Wires 4
 Series HBL®
 Standards/Approvals UL 498|CSA C22.2 No. 42 Certified|NEMA WD1/WD5|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 3-Phase Heavy Duty Single Screw Mount
 Video Links
 Voltage Rating 480 V AC

Features

▪ Catalogue number and color coded voltage rating are visible even when in use
▪ Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
▪ Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
▪ Accepts Hubbell shrouded and standard NEMA locking plugs
