Hubbell

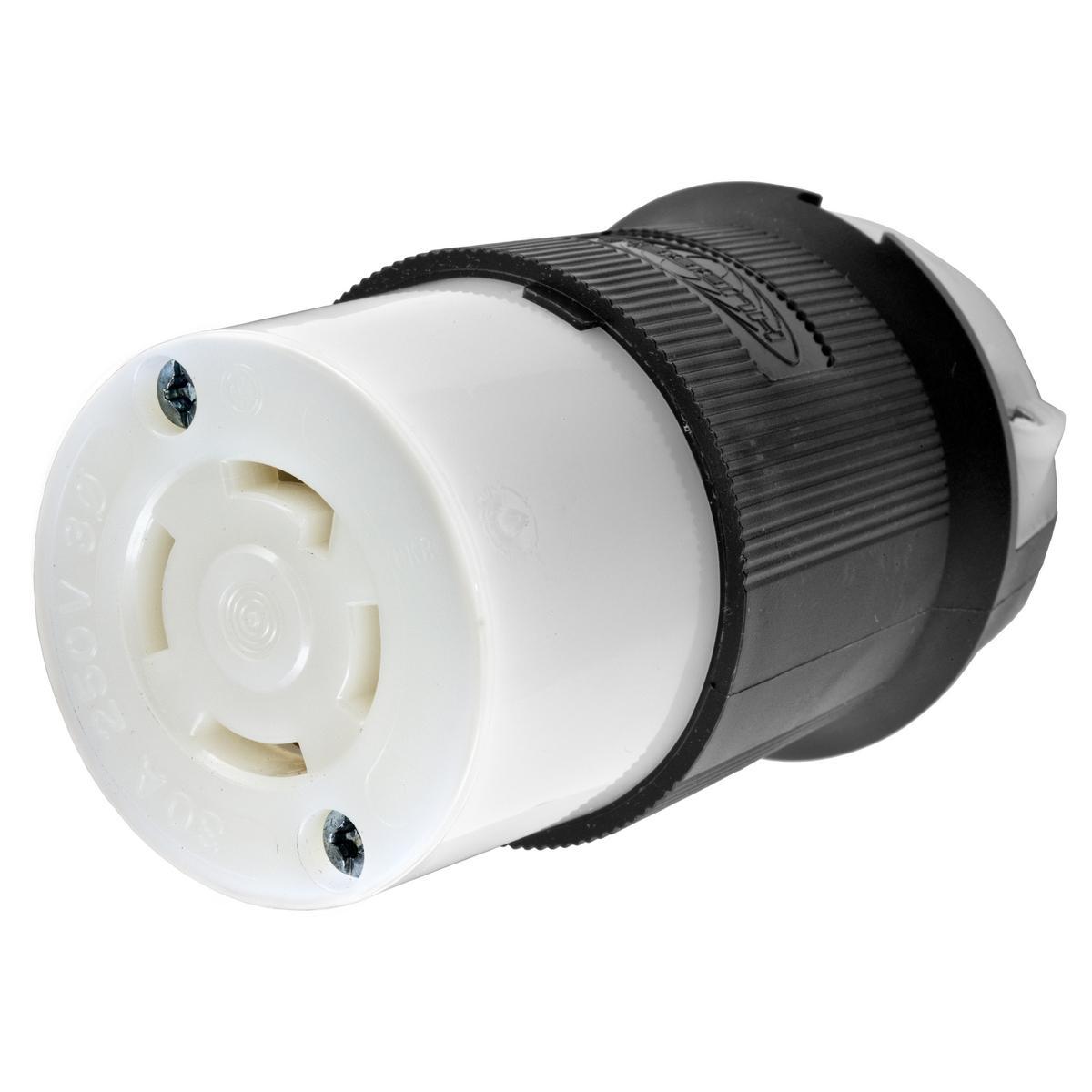

HBL2723 HUB GRD TL CONN BODY

Mouse over image to zoom, click to enlarge

  • HBL2723 HUB GRD TL CONN BODY
  • HBL2723 HUB GRD TL CONN BODY

Description: Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2723, Locking Connector, Heavy Duty Grounding Cord Mount, Series: HBL®, 250 V AC, 30 A, 3 hp, 3 Pole, 4 Wires, L15-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 3.86 in Dimensions

Manufacturer PN: HBL2723

UPC:  78358503925

Kendall Electric Inc PN: 32495

Invoice Description:

HBL2723 HUB GRD TL CONN BODY


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2723 HBL® Heavy Duty Grounding Cord Mount Locking Connector, 250 V AC, 30 A, 3 Poles, 4 Wires, Black/White

Log In for Pricing and Availability




Description

Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Screw Terminal, Black and White.
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2723, Locking Connector, Heavy Duty Grounding Cord Mount, Series: HBL®, 250 V AC, 30 A, 3 hp, 3 Pole, 4 Wires, L15-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 3.86 in Dimensions

Specifications

 Amperage Rating 30 A
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.35 to 1.15 in
 Dimensions 2.33 x 2.33 x 3.86 in
 Enclosure IP20
 Grade Industrial
 Horsepower 3 hp
 Manufacturer Part Number HBL2723
 Material Nylon
 NEMA Rating L15-30R
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS HBL2723 ; 11827239 ; 8958577 ; 783585039251 ; 78358503925 ; 00783585039251 ; 0783585039251
 Series HBL®
 Standards/Approvals UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Heavy Duty Grounding Cord Mount
 Video Links
 Voltage Rating 250 V AC

Features

▪ Superior cord grip design protects terminations from excess strain
▪ Clear, funnel shaped wire entry for ease of termination
▪ Integral dust shield protects wiring chamber from dust or contaminants
