Hubbell

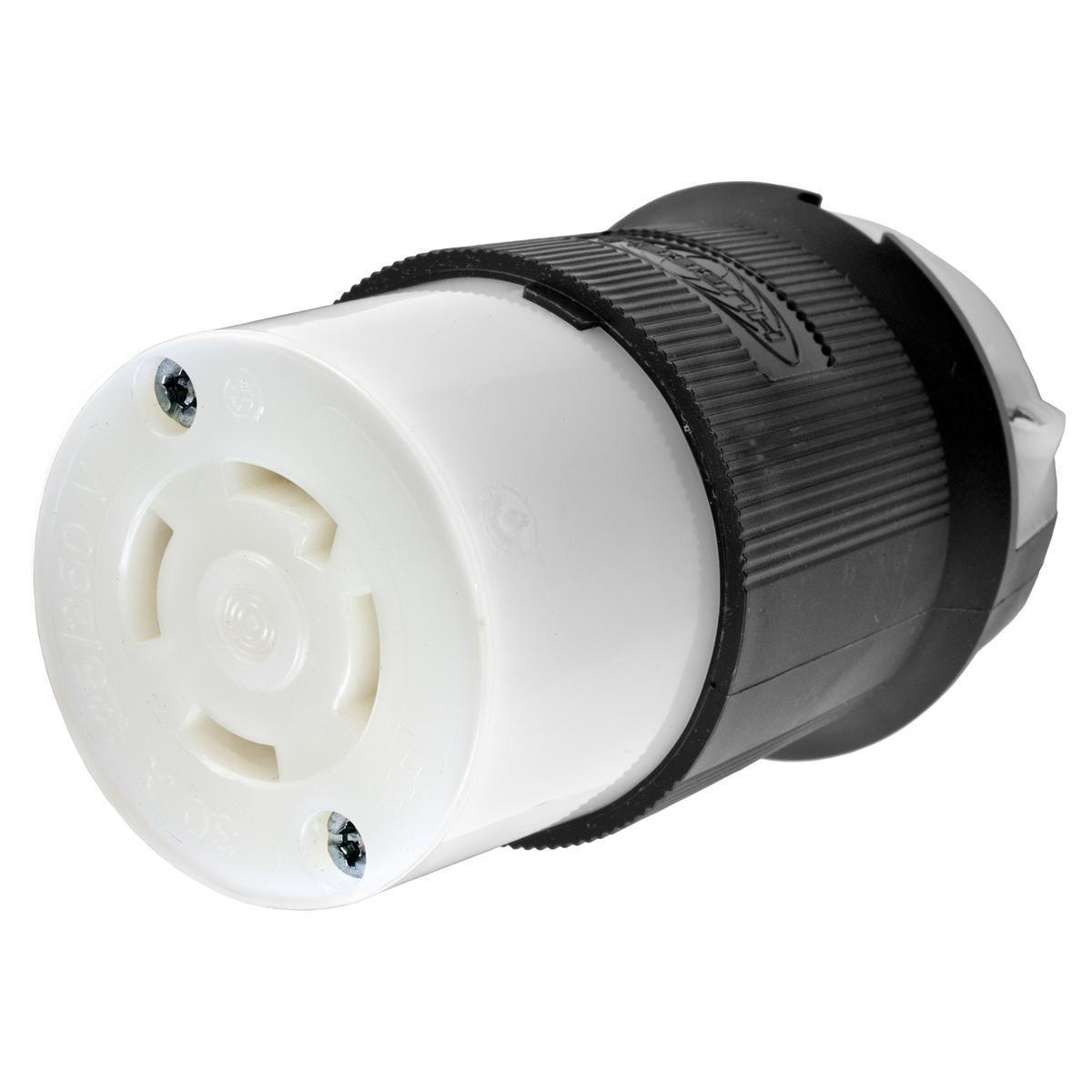

HBL2713 HUB GRD TL CONN BODY

Mouse over image to zoom, click to enlarge

  • HBL2713 HUB GRD TL CONN BODY
  • HBL2713 HUB GRD TL CONN BODY

Description: Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2713, Locking Connector, Grounding Heavy Duty Cord Mount, Series: HBL®, 125/250 V AC, 30 A, 2 hp, 3 Pole, 4 Wires, L14-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 3.86 in Dimensions

Manufacturer PN: HBL2713

UPC:  78358503917

Kendall Electric Inc PN: 32487

Invoice Description:

HBL2713 HUB GRD TL CONN BODY


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2713 HBL® Grounding Heavy Duty Cord Mount Locking Connector, 125/250 V AC, 30 A, 3 Poles, 4 Wires, Black/White

Log In for Pricing and Availability




Description

Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Black and White.
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2713, Locking Connector, Grounding Heavy Duty Cord Mount, Series: HBL®, 125/250 V AC, 30 A, 2 hp, 3 Pole, 4 Wires, L14-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 3.86 in Dimensions

Specifications

 Amperage Rating 30 A
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.35 to 1.15 in
 Dimensions 2.33 x 2.33 x 3.86 in
 Enclosure IP20
 Grade Industrial
 Horsepower 2 hp
 Manufacturer Part Number HBL2713
 Material Nylon
 NEMA Rating L14-30R
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS HBL2713 ; 8958548 ; 11827235 ; 783585039176 ; 78358503917 ; 00783585039176 ; 0783585039176
 Series HBL®
 Standards/Approvals Federal Specification W-C-596|RoHS Compliant|UL 498|CSA C22.2 No. 42|NEMA WD1/WD5
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Grounding Heavy Duty Cord Mount
 Video Links
 Voltage Rating 125/250 V AC

Features

▪ Superior cord grip design protects terminations from excess strain
▪ Clear, funnel shaped wire entry for ease of termination
▪ Integral dust shield protects wiring chamber from dust or contaminants

Resources

 Catalog Page
 Installation Instructions h
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
