Hubbell

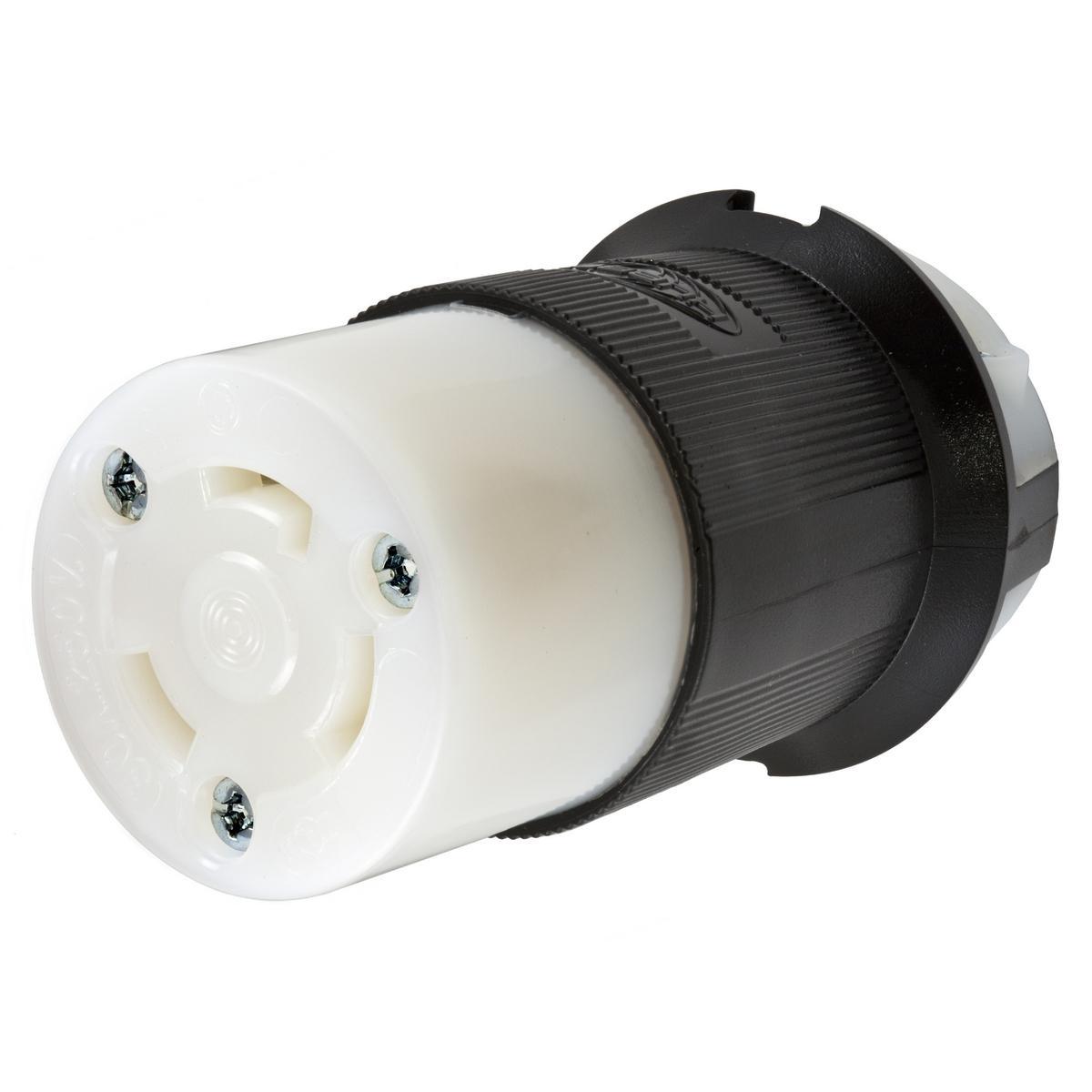

HBL2623 HUB 3W TL NYLON CONN 6344AH VALISE = 2623VY

Mouse over image to zoom, click to enlarge

  • HBL2623 HUB 3W TL NYLON CONN 6344AH VALISE = 2623VY
  • HBL2623 HUB 3W TL NYLON CONN 6344AH VALISE = 2623VY

Description: Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2623, Connector, Female Grounding Standard Cord Mount, Series: HBL®, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 3.86 in Dimensions

Manufacturer PN: HBL2623

UPC:  78358503886

Kendall Electric Inc PN: 32463

Invoice Description:

HBL2623 HUB 3W TL NYLON CONN 6344AH VALISE = 2623VY


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2623 HBL® Female Grounding Standard Cord Mount Connector, 250 V AC, 30 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Black and White.
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2623, Connector, Female Grounding Standard Cord Mount, Series: HBL®, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 3.86 in Dimensions

Specifications

 Amperage Rating 30 A
 Application Heavy Duty Industrial Applications and Indoor Dry Environment
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.36 to 0.93 in
 Dimensions 2.26 x 2.26 x 3.86 in
 Enclosure IP20
 Grade Industrial
 Horsepower 2 hp
 Manufacturer Part Number HBL2623
 Material Nylon
 NEMA Rating L6-30R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL2623 ; 8958436 ; 11827215 ; 783585038865 ; 78358503886 ; 00783585038865 ; 0783585038865
 Series HBL®
 Standards/Approvals RoHS Compliant|CSA C22.2 No. 42/0.6|Federal Specification W-C-596|NEMA WD1/WD5|UL 498
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Female Grounding Standard Cord Mount
 Video Links
 Voltage Rating 250 V AC

Features

▪ Integral dust shield protects wiring chamber from dust or contaminants
▪ Superior cord grip design protects terminations from excess strain
▪ Clear, funnel shaped wire entry for ease of termination
