Hubbell
HBL2621 HUB 3W TL NYLON CAP 6342AH VALISE = 2621VY

Mouse over image to zoom, click to enlarge

  • HBL2621 HUB 3W TL NYLON CAP 6342AH VALISE = 2621VY
  • HBL2621 HUB 3W TL NYLON CAP 6342AH VALISE = 2621VY
  • HBL2621 HUB 3W TL NYLON CAP 6342AH VALISE = 2621VY
  • HBL2621 HUB 3W TL NYLON CAP 6342AH VALISE = 2621VY
  • HBL2621 HUB 3W TL NYLON CAP 6342AH VALISE = 2621VY

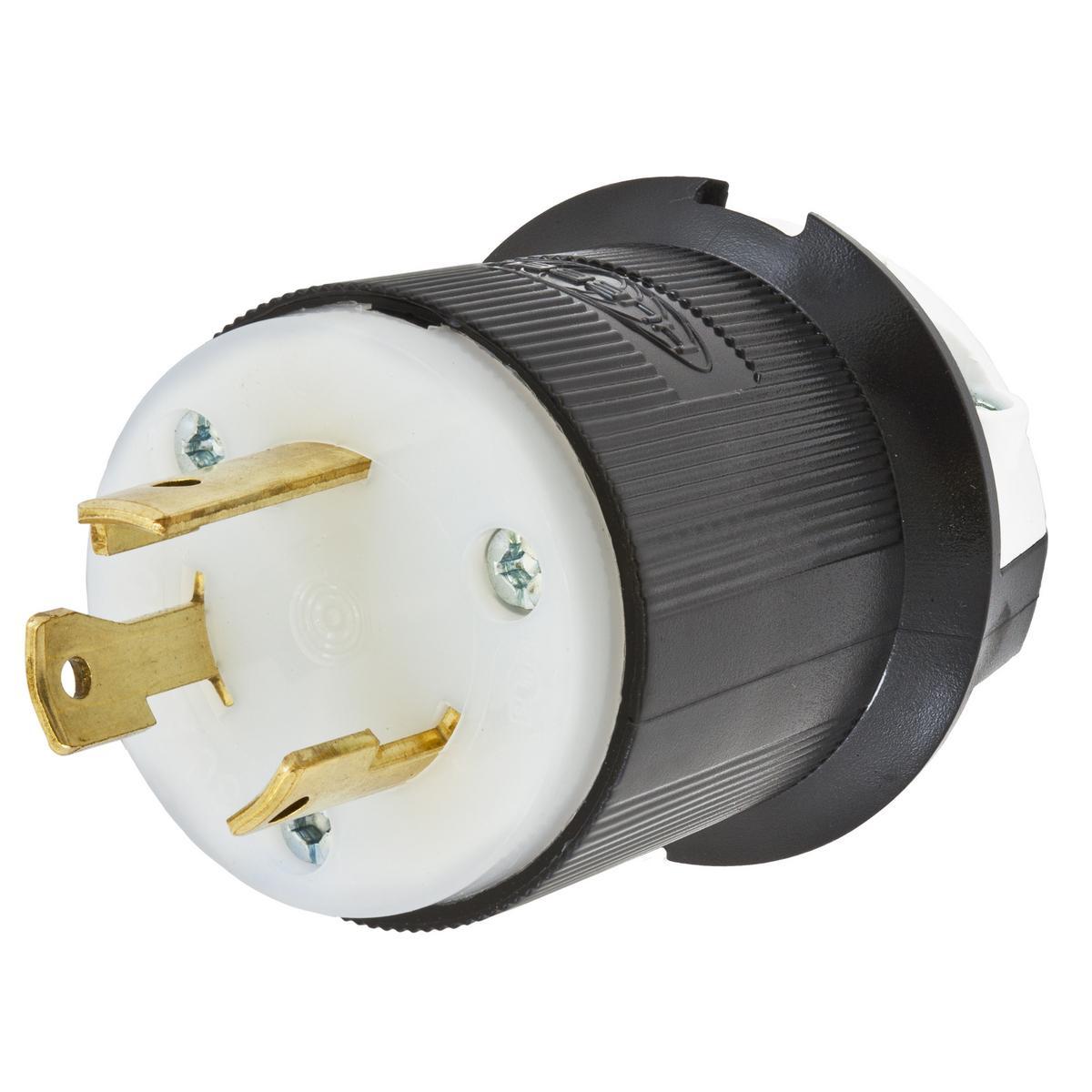

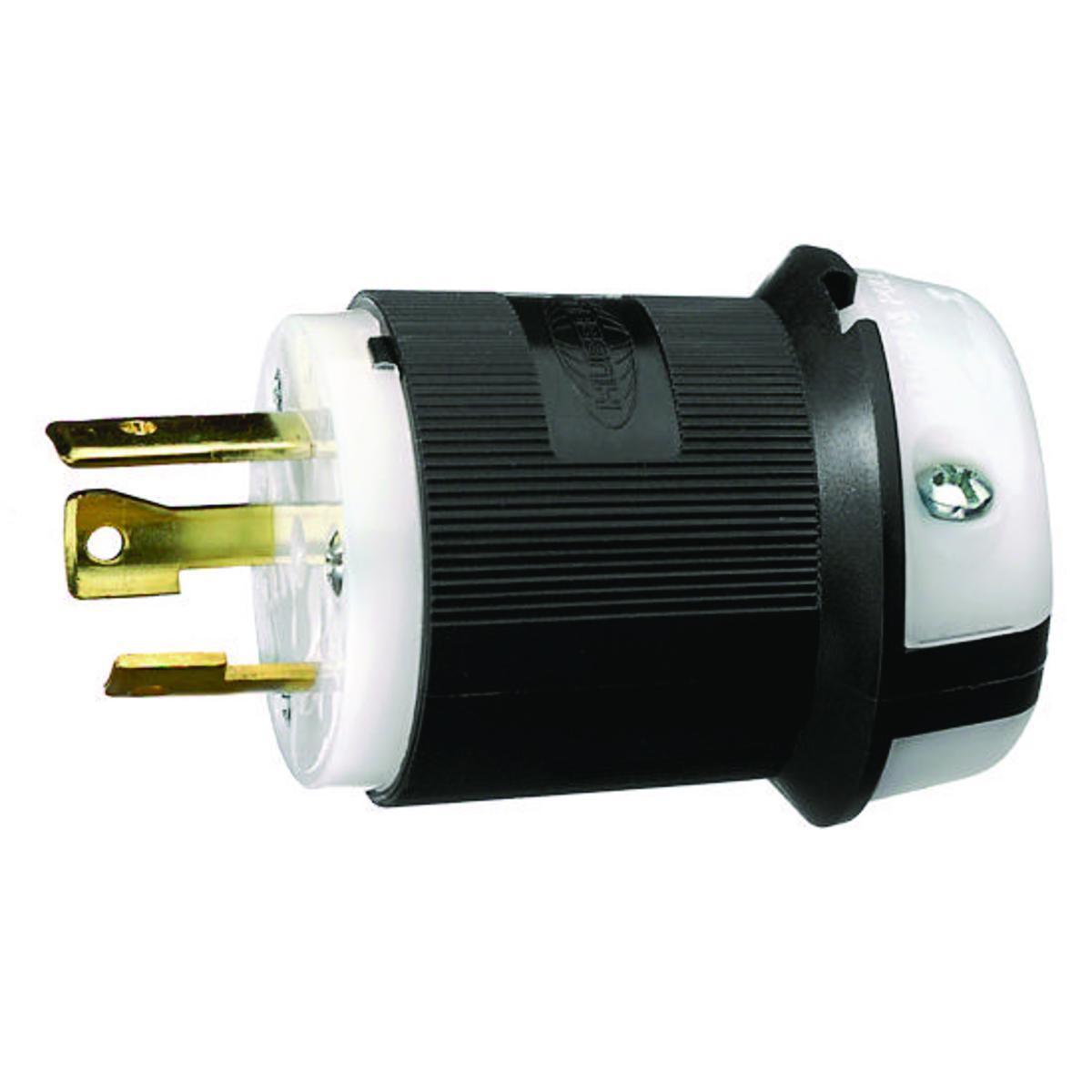

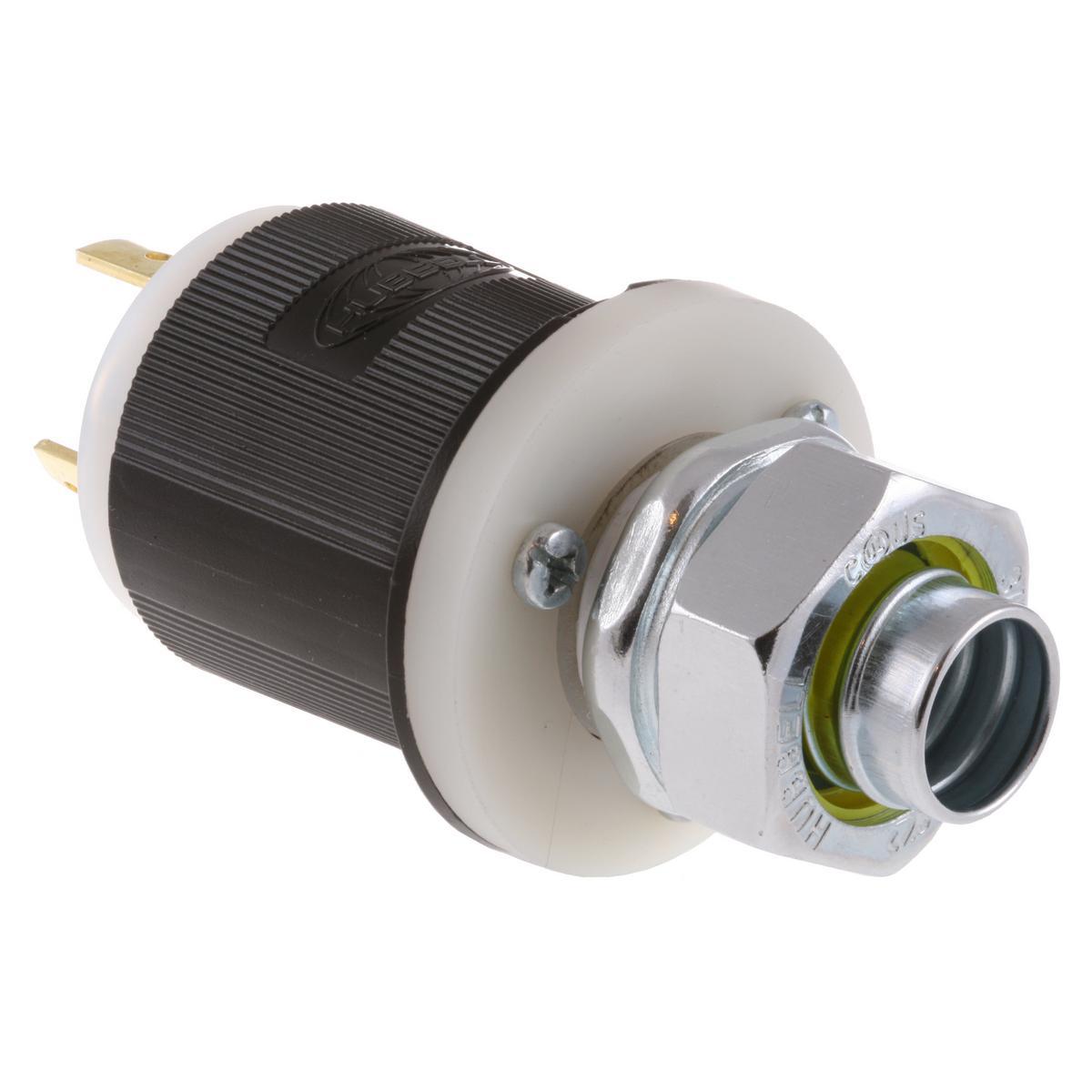

Description: Hubbell Wiring Device-Kellems, HBL2621, Locking Plug, 1-Phase Cord Male Mounted Grounding, Series: HBL®, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 2.75 in Dimensions

Manufacturer PN: HBL2621

UPC:  78358503883

Kendall Electric Inc PN: 32459

Invoice Description:

HBL2621 HUB 3W TL NYLON CAP 6342AH VALISE = 2621VY


SPEC SHEET

▸ See All in Locking Connectors


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL2621 HBL® 1-Phase Cord Male Mounted Grounding Locking Plug, 250 V AC, 30 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Black and White.
Hubbell Wiring Device-Kellems, HBL2621, Locking Plug, 1-Phase Cord Male Mounted Grounding, Series: HBL®, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 2.75 in Dimensions

Specifications

 Amperage Rating 30 A
 Application Power Connection Applications
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.36 to 0.93 in
 Dimensions 2.26 x 2.26 x 2.75 in
 Enclosure IP20
 Grade Industrial
 Horsepower 2 hp
 Manufacturer Part Number HBL2621
 Material Nylon
 NEMA Rating L6-30P
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL2621 ; 8958425 ; 11827214 ; 783585038834 ; 78358503883 ; 00783585038834 ; 0783585038834
 Series HBL®
 Standards/Approvals UL 498|CSA C22.2 No.42|Federal Specification W-C-596|RoHS Compliant|CSA Certified|NEMA WD1/WD5
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 1-Phase Cord Male Mounted Grounding
 Video Links
 Voltage Rating 250 V AC

Features

▪ Superior cord grip design protects terminations from excess strain
▪ Clear, funnel shaped wire entry for ease of termination
▪ Integral dust shield protects wiring chamber from dust or contaminants
