Hubbell

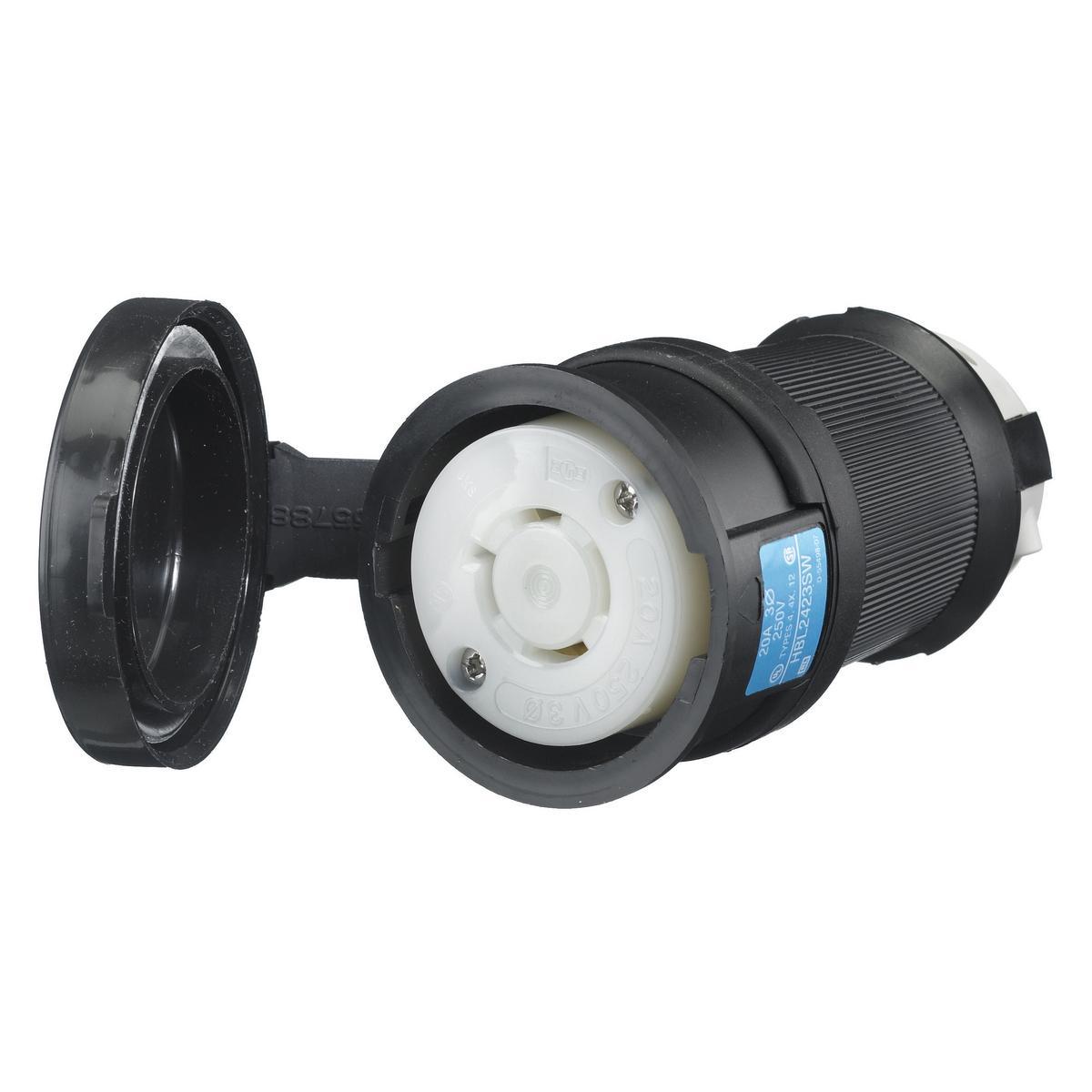

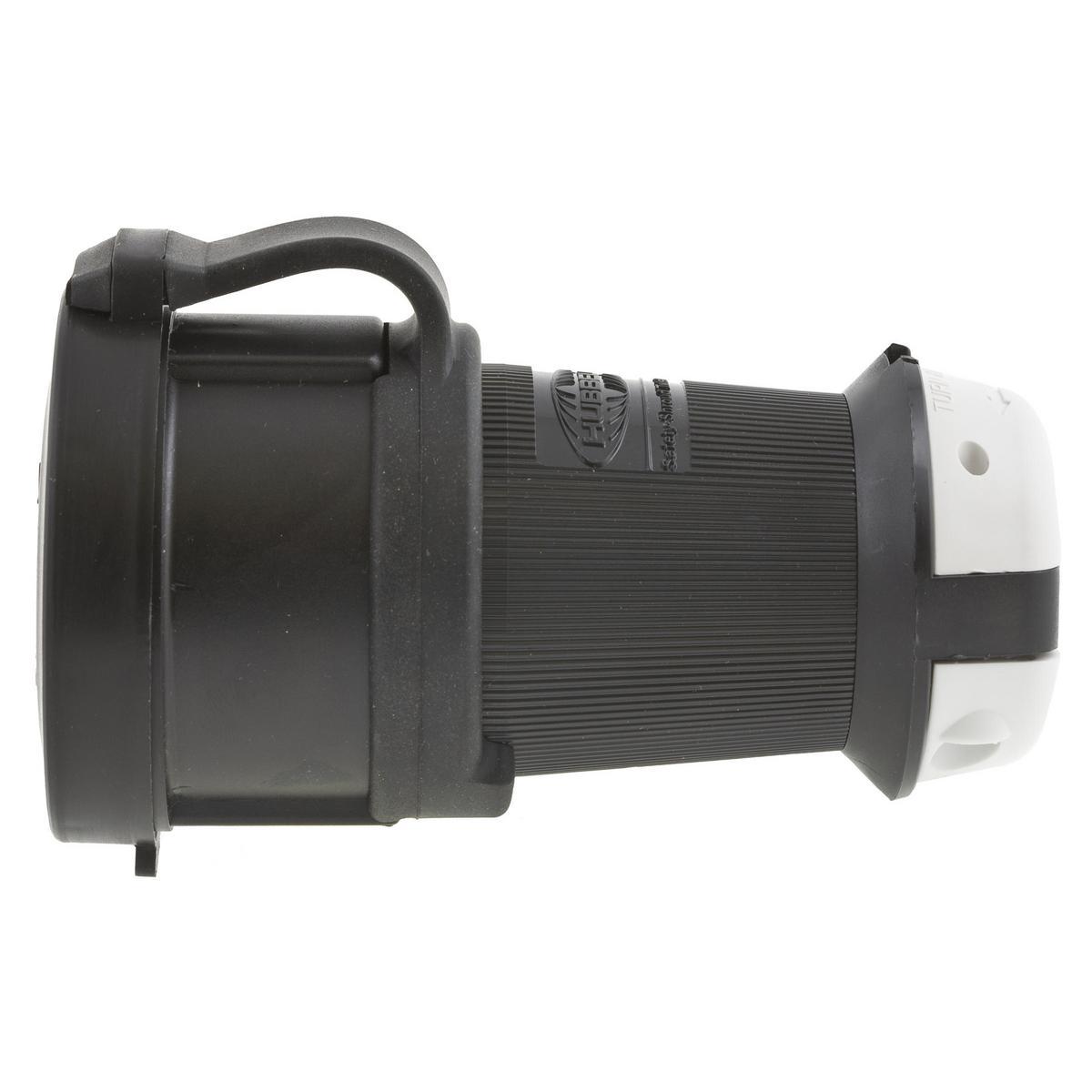

HBL2423SW HUB 3P 4W 3PH 250V 20A SHROUDED CONN

Mouse over image to zoom, click to enlarge

  • HBL2423SW HUB 3P 4W 3PH 250V 20A SHROUDED CONN
  • HBL2423SW HUB 3P 4W 3PH 250V 20A SHROUDED CONN
  • HBL2423SW HUB 3P 4W 3PH 250V 20A SHROUDED CONN

Description: Hubbell Wiring Device-Kellems, HBL2423SW, Female Connector, 3-Phase Isolated Grounding Heavy Duty Shrouded Standard Sized Watertight Cord Mount, 250 Delta V AC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20R/WD1/WD5 NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.75 x 2.75 x 4.4 in Dimensions

Manufacturer PN: HBL2423SW

UPC:  78358523138

Kendall Electric Inc PN: 32416

Invoice Description:

HBL2423SW HUB 3P 4W 3PH 250V 20A SHROUDED CONN


SPEC SHEET

▸ See All in Locking Connectors


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL2423SW 3-Phase Isolated Grounding Heavy Duty Shrouded Standard Sized Watertight Cord Mount Female Connector, 250 Delta V AC, 20 A, 3 Poles, 4 Wires, Black/White

Log In for Pricing and Availability




Description

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20R, Screw Terminal, Black PBT housing, White PBT clamps.
Hubbell Wiring Device-Kellems, HBL2423SW, Female Connector, 3-Phase Isolated Grounding Heavy Duty Shrouded Standard Sized Watertight Cord Mount, 250 Delta V AC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20R/WD1/WD5 NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.75 x 2.75 x 4.4 in Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.35 to 1.15 in
 Dimensions 2.75 x 2.75 x 4.4 in
 Enclosure NEMA 4/4X/12/IP66
 Grade Industrial
 Horsepower 3 hp
 Manufacturer Part Number HBL2423SW
 Material Composite
 NEMA Rating L15-20R/WD1/WD5
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS HBL2423SW ; 8914926 ; 11829316 ; 783585231389 ; 78358523138 ; 00783585231389 ; 0783585231389
 Standards/Approvals RoHS Compliant|UL 498|Federal Specification W-C-596|CSA C22.2 No. 42/0.17|NEMA WD1/WD5|UL94 V-0 Flammability Rating
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type 3-Phase Isolated Grounding Heavy Duty Shrouded Standard Sized Watertight Cord Mount
 Video Links
 Voltage Rating 250 Delta V AC

Features

▪ One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
▪ Closure cap is for environmental seal when device is not in use
▪ Superior cord grip design protects terminations from excess strain

Resources

 Catalog
 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
