Hubbell
HBL2323 HUB 2P-3W-20A-250V CONN 6214AH VALISE = 2323VY

Mouse over image to zoom, click to enlarge

  • HBL2323 HUB 2P-3W-20A-250V CONN 6214AH VALISE = 2323VY
  • HBL2323 HUB 2P-3W-20A-250V CONN 6214AH VALISE = 2323VY
  • HBL2323 HUB 2P-3W-20A-250V CONN 6214AH VALISE = 2323VY
  • HBL2323 HUB 2P-3W-20A-250V CONN 6214AH VALISE = 2323VY

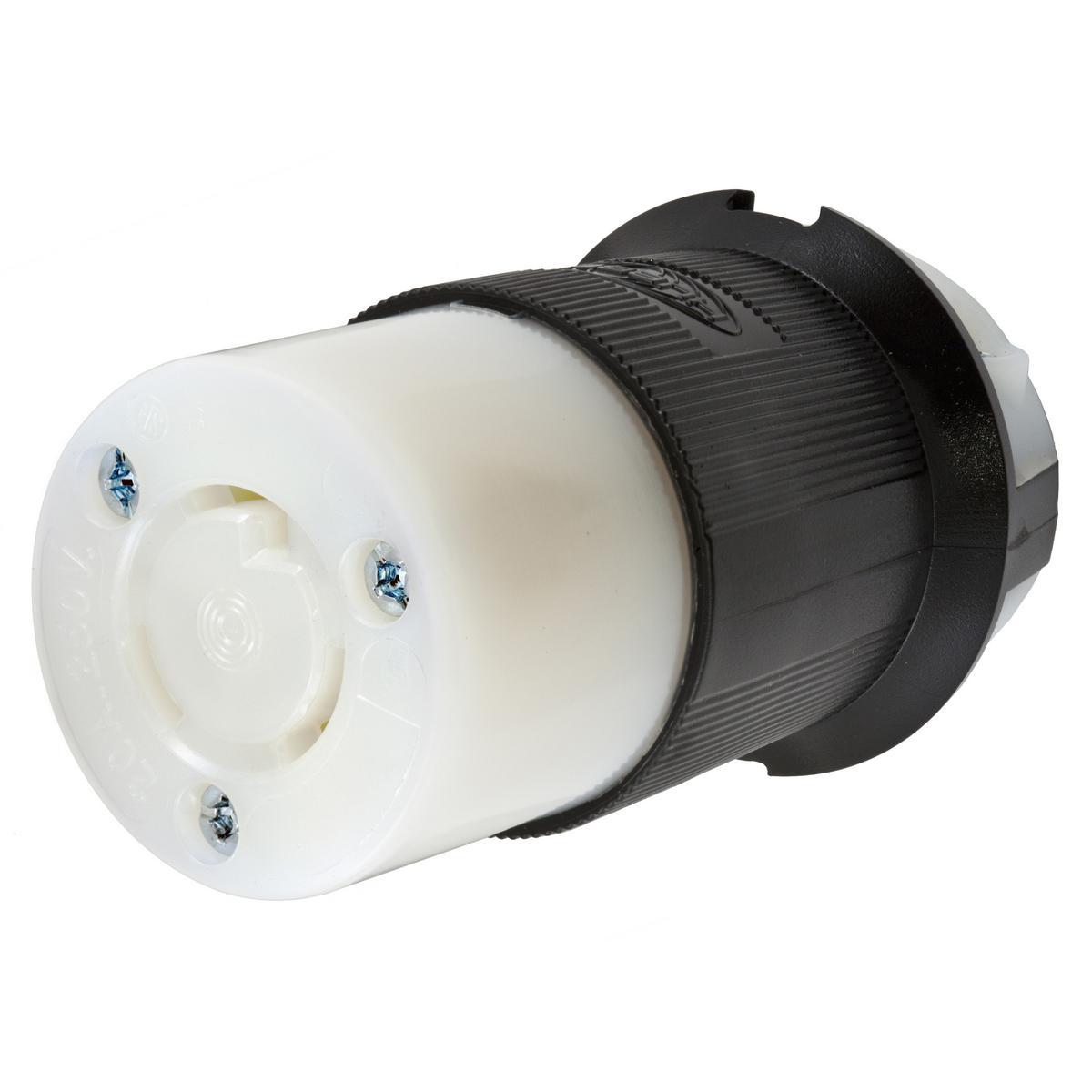

Description: Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2323, Locking Connector, Grounding Heavy Duty Cord Mount, Series: HBL®, 250 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.26 x 2.26 x 3.86 in Dimensions

Manufacturer PN: HBL2323

UPC:  78358503784

Kendall Electric Inc PN: 32383

Invoice Description:

HBL2323 HUB 2P-3W-20A-250V CONN 6214AH VALISE = 2323VY


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2323 HBL® Grounding Heavy Duty Cord Mount Locking Connector, 250 V AC, 20 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 250V, 2-Pole 3-Wire Grounding, NEMA L6-20R, Screw Terminal, Black and White Nylon.
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2323, Locking Connector, Grounding Heavy Duty Cord Mount, Series: HBL®, 250 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.26 x 2.26 x 3.86 in Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.36 to 0.93 in
 Dimensions 2.26 x 2.26 x 3.86 in
 Enclosure IP20
 Grade Commercial/Industrial
 Horsepower 2 hp
 Manufacturer Part Number HBL2323
 Material Composite
 NEMA Rating L6-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL2323 ; 11827147 ; 8958054 ; 783585037844 ; 78358503784 ; 00783585037844 ; 0783585037844
 Series HBL®
 Standards/Approvals UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Pressure Screw
 Type Grounding Heavy Duty Cord Mount
 Video Links
 Voltage Rating 250 V AC

Features

▪ Ribbed nylon housing provides a secure grip and impact and chemical resistance
▪ Superior cord grip design protects terminations from excess strain
▪ Clear, funnel shaped wire entry for ease of termination
▪ Integral dust shield protects wiring chamber from dust or contaminants

Resources

 Catalog Page
 Installation Instructions h
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
