Hubbell

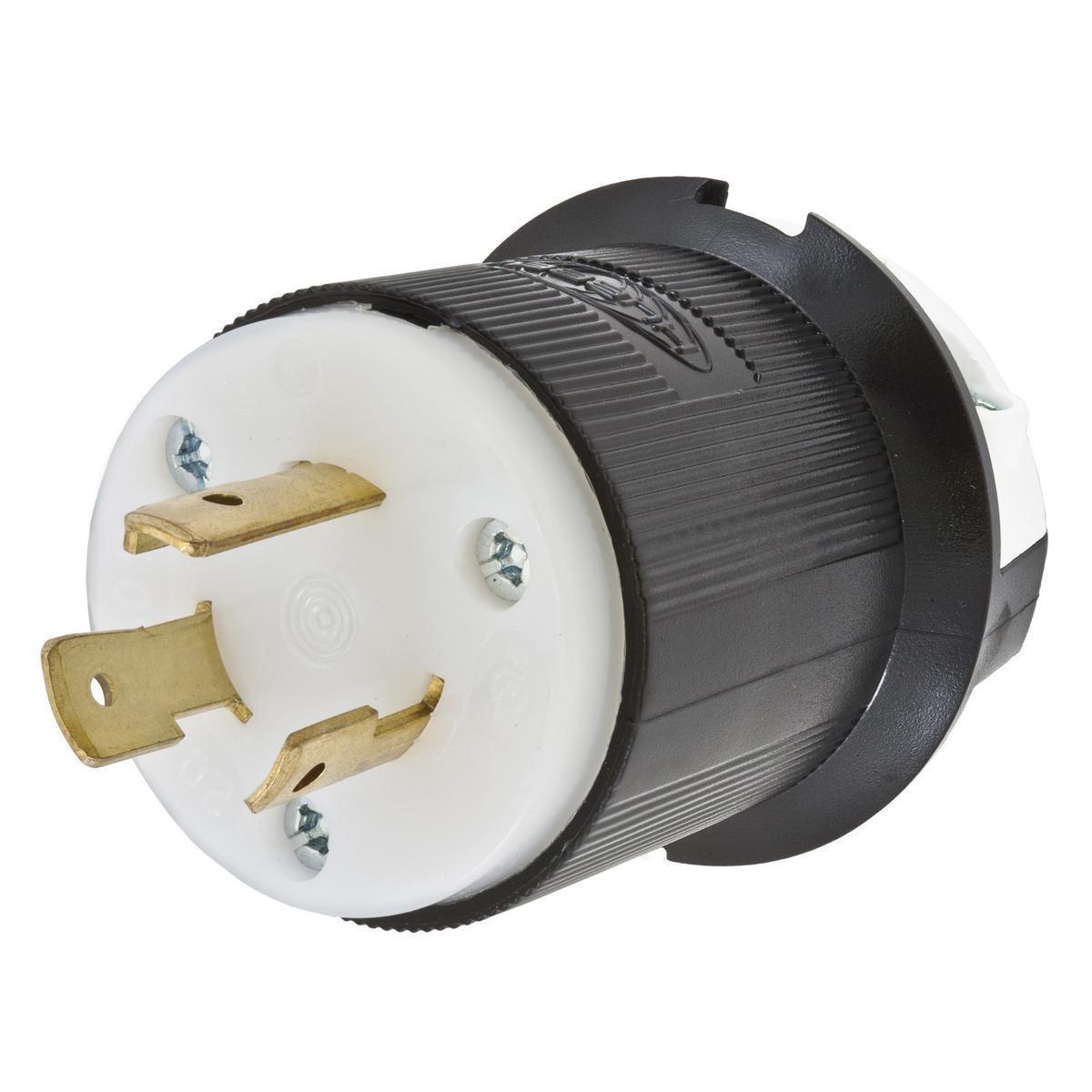

HBL2321 HUB 2P-3W-20A-250V PLUG 6212AH VALISE = 2321VY

Mouse over image to zoom, click to enlarge

  • HBL2321 HUB 2P-3W-20A-250V PLUG 6212AH VALISE = 2321VY
  • HBL2321 HUB 2P-3W-20A-250V PLUG 6212AH VALISE = 2321VY
  • HBL2321 HUB 2P-3W-20A-250V PLUG 6212AH VALISE = 2321VY
  • HBL2321 HUB 2P-3W-20A-250V PLUG 6212AH VALISE = 2321VY

Description: Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2321, Locking Plug, 1-Phase Grounding Cord Mount, Series: HBL®, 250 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 2.75 in Dimensions

Manufacturer PN: HBL2321

UPC:  78358503782

Kendall Electric Inc PN: 32379

Invoice Description:

HBL2321 HUB 2P-3W-20A-250V PLUG 6212AH VALISE = 2321VY


SPEC SHEET

▸ See All in Locking Plugs


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2321 HBL® 1-Phase Grounding Cord Mount Locking Plug, 250 V AC, 20 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20P, Screw Terminal, Black and White Nylon.
Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip®, HBL2321, Locking Plug, 1-Phase Grounding Cord Mount, Series: HBL®, 250 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 2.75 in Dimensions

Specifications

 Amperage Rating 20 A
 Application Power Connection Applications
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.36 to 0.93 in
 Dimensions 2.26 x 2.26 x 2.75 in
 Enclosure IP20
 Grade Industrial
 Horsepower 2 hp
 Manufacturer Part Number HBL2321
 Material Nylon
 NEMA Rating L6-20P
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL2321 ; 11827146 ; 8958046 ; 783585037820 ; 78358503782 ; 00783585037820 ; 0783585037820
 Series HBL®
 Standards/Approvals NEMA WD1/WD5|UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 1-Phase Grounding Cord Mount
 Video Links
 Voltage Rating 250 V AC

Features

▪ Integral dust shield protects wiring chamber from dust or contaminants
▪ Clear, funnel shaped wire entry for ease of termination
▪ Ribbed nylon housing provides a secure grip and impact and chemical resistance
▪ Superior cord grip design protects terminations from excess strain
