Hubbell

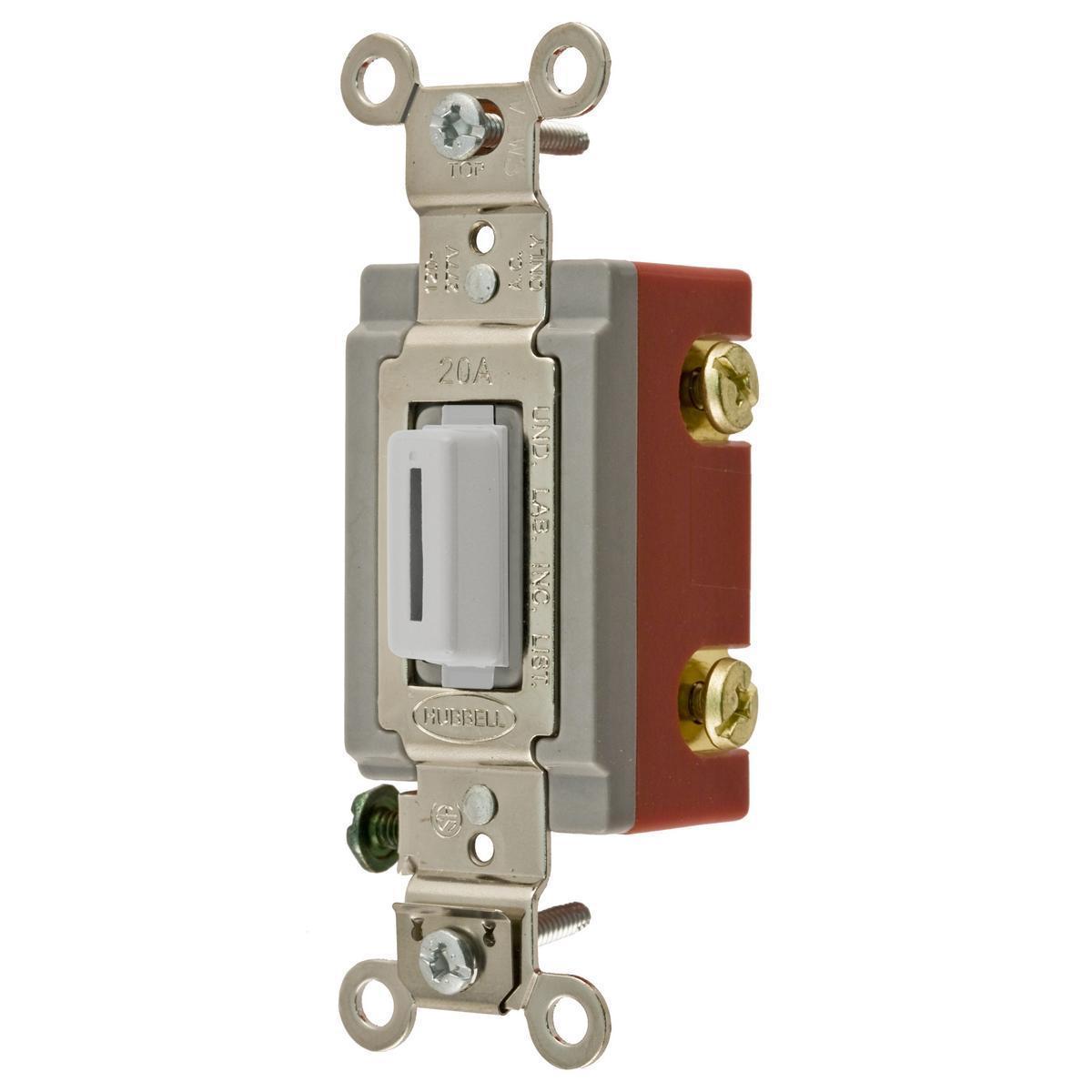

HBL1222LW HUBBELL DP TOG, IND GRD, 20A 120/277V, LK, WH

Mouse over image to zoom, click to enlarge

  • HBL1222LW HUBBELL DP TOG, IND GRD, 20A 120/277V, LK, WH
  • HBL1222LW HUBBELL DP TOG, IND GRD, 20A 120/277V, LK, WH

Description: Hubbell Wiring Device-Kellems, HBL1222LW, AC Keylock Switch, Extra Heavy Duty Industrial Grade Locking Standard, Series: HBL, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 2 Pole, Inductive/Resistive, Non-Cylindrical Lock, Double Ended Key Actuator, Screw Terminal Connection, Threaded Mounting, Composite, White, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.31 x 1.13 in Dimensions

Manufacturer PN: HBL1222LW

UPC:  78358518861

Kendall Electric Inc PN: 4175287

Invoice Description:

HBL1222LW HUBBELL DP TOG, IND GRD, 20A 120/277V, LK, WH


SPEC SHEET

▸ See All in Keylock Switches


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL1222LW HBL Extra Heavy Duty Industrial Grade Locking Standard AC Keylock Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2-Position Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems, HBL1222LW, AC Keylock Switch, Extra Heavy Duty Industrial Grade Locking Standard, Series: HBL, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 2 Pole, Inductive/Resistive, Non-Cylindrical Lock, Double Ended Key Actuator, Screw Terminal Connection, Threaded Mounting, Composite, White, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.31 x 1.13 in Dimensions

Specifications

 Actuator Double Ended Key
 Amperage Rating 20 A
 Application General Purpose Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Connection Screw Terminal
 Contact Configuration 2-Position
 Dimensions 4.06 x 1.31 x 1.13 in
 Environmental Conditions -40 to 75 deg C
 Includes Key Guide
 Load Inductive/Resistive
 Lock Type Non-Cylindrical
 Manufacturer Part Number HBL1222LW
 Material Composite
 Mounting Threaded
 Number of Poles 2
 Power Rating 5540 W
 Series HBL
 Standards/Approvals CSA Certified|Federal Specification WS896|UL 20|UL94 V-2 Flammability Rating|UL Listed|NEMA WD1
 Type Extra Heavy Duty Industrial Grade Locking Standard
 Voltage Rating 120 to 277 V AC

Features

▪ Large brass binding head screws with deep slots
▪ Lock circuits On or Off
▪ Strip gauge for accurate wiring
