Hubbell
HBL1221RKL HUB 20A 120-277V SP BARREL KEY LOCK 78358543157

Mouse over image to zoom, click to enlarge

  • HBL1221RKL HUB 20A 120-277V SP BARREL KEY LOCK 78358543157
  • HBL1221RKL HUB 20A 120-277V SP BARREL KEY LOCK 78358543157
  • HBL1221RKL HUB 20A 120-277V SP BARREL KEY LOCK 78358543157
  • HBL1221RKL HUB 20A 120-277V SP BARREL KEY LOCK 78358543157
  • HBL1221RKL HUB 20A 120-277V SP BARREL KEY LOCK 78358543157

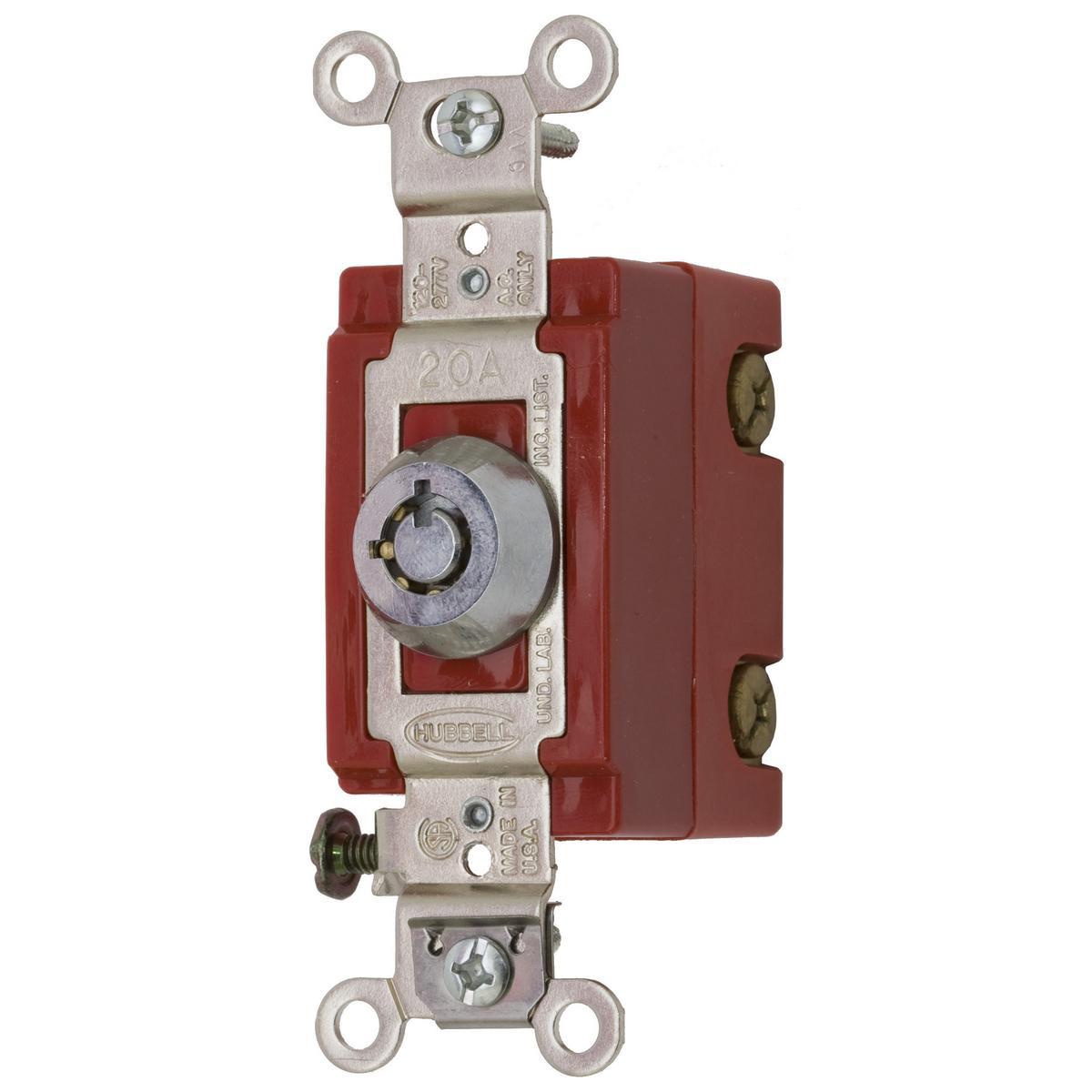

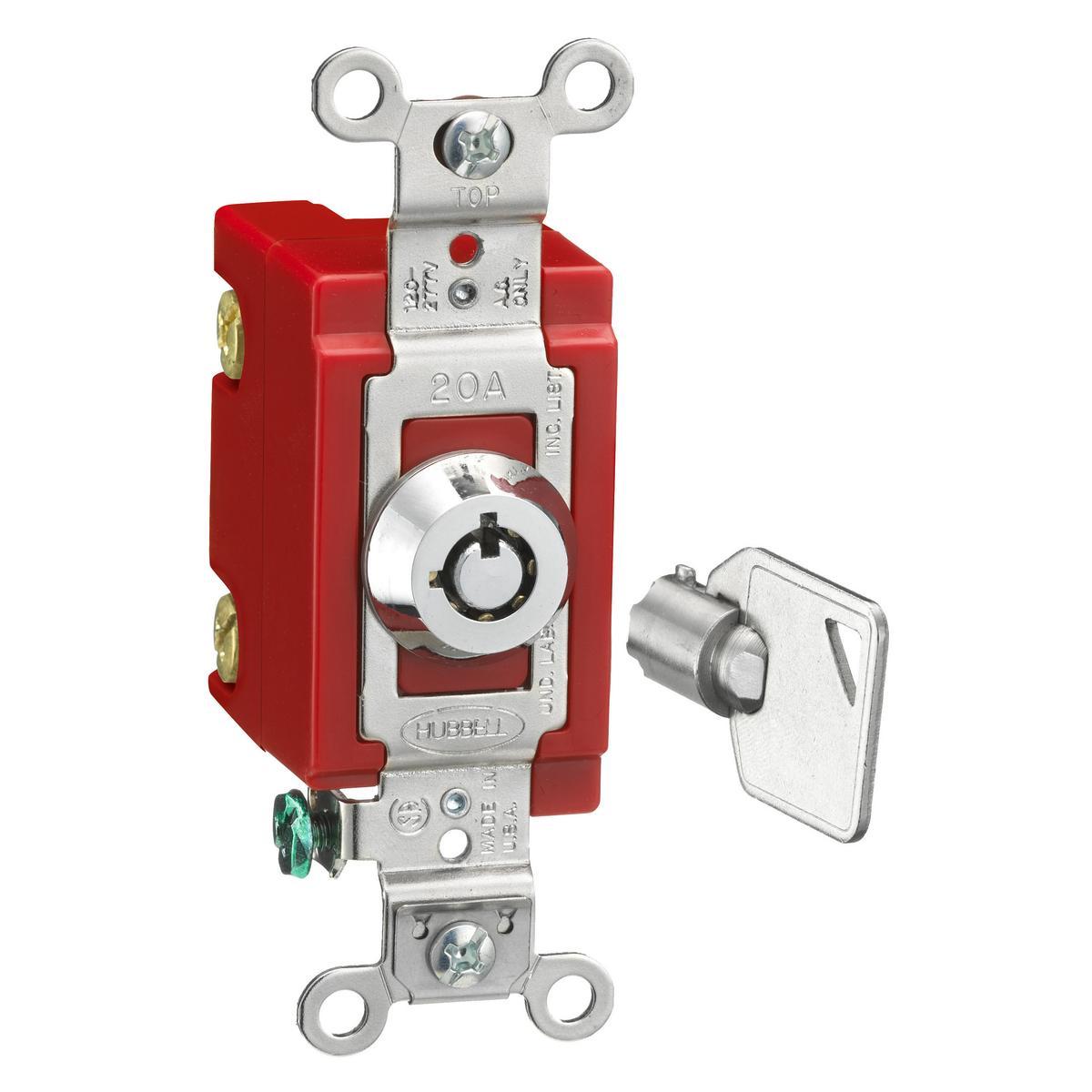

Description: Hubbell Wiring Device-Kellems HBL®, HBL1221RKL, Locking Switch, Standard AC Barrel Key Extra Heavy Duty General Purpose, Series: HBL®, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Inductive/Resistive, Cylindrical Key Actuator, Screw Terminal Connection, Threaded Mounting, Composite, Polished Chrome, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.25 x 2.02 in Dimensions

Manufacturer PN: HBL1221RKL

UPC:  78358543157

Kendall Electric Inc PN: 2117072

Invoice Description:

HBL1221RKL HUB 20A 120-277V SP BARREL KEY LOCK 78358543157


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL® HBL1221RKL HBL® Standard AC Barrel Key Extra Heavy Duty General Purpose Locking Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2-Position Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

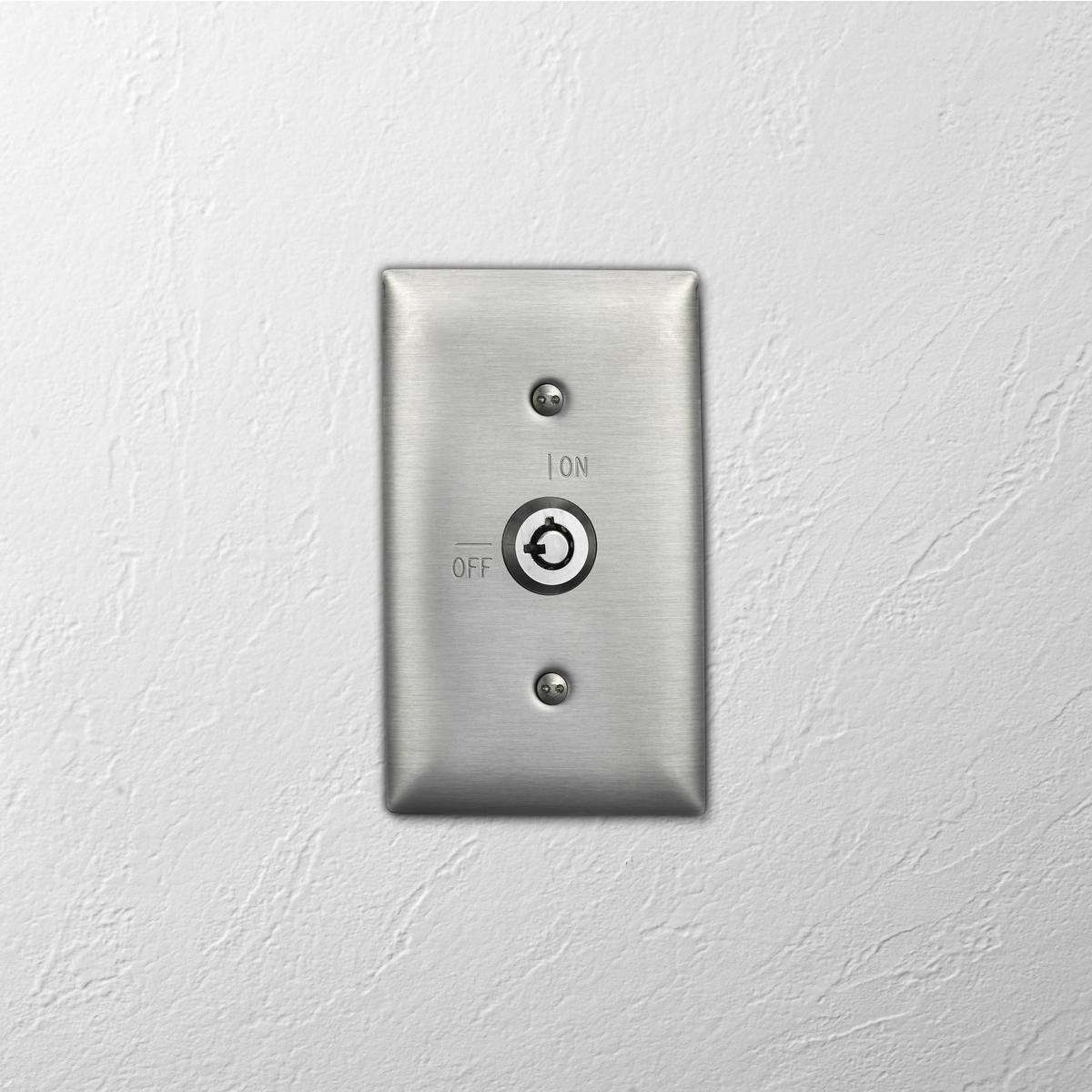

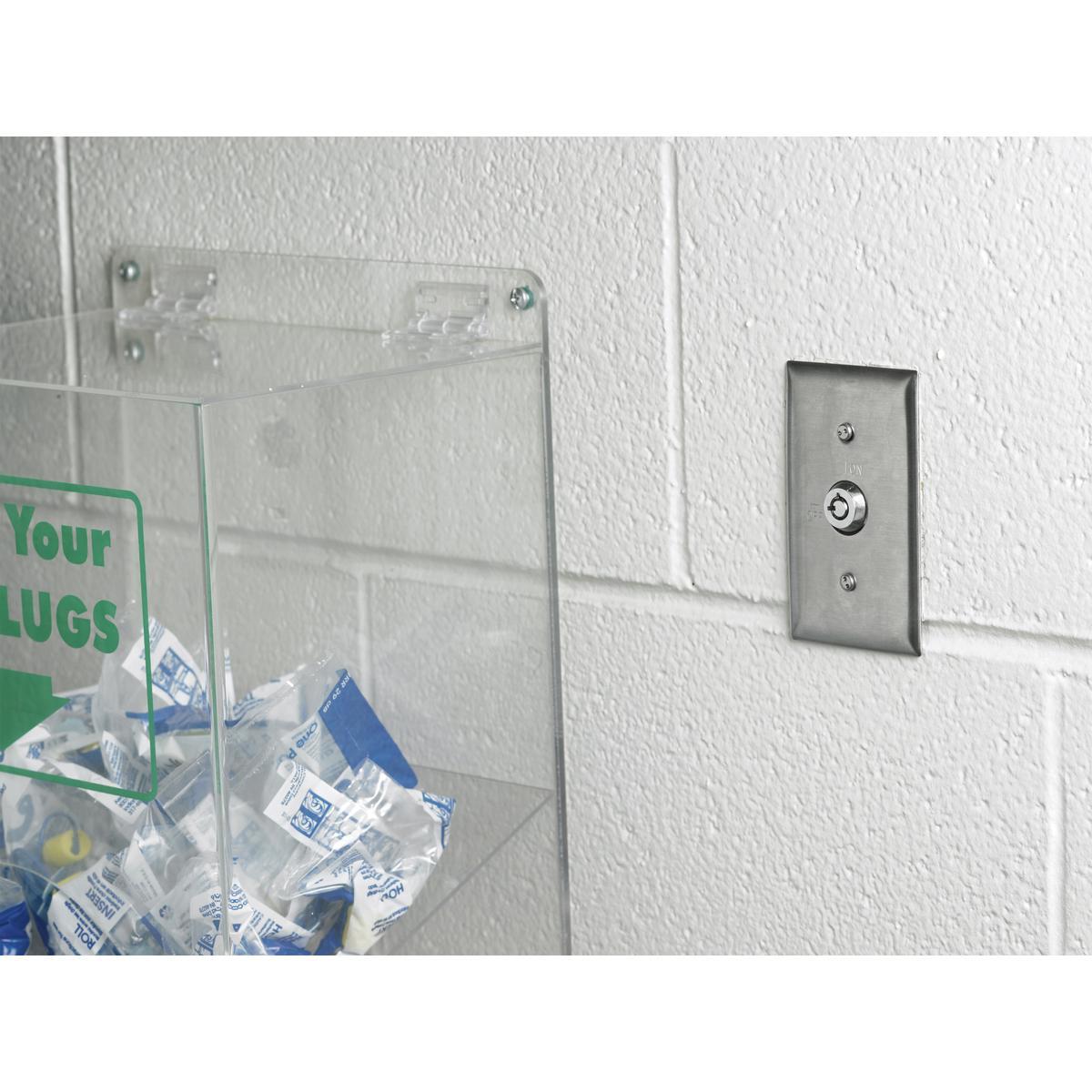

Barrel locking switches offer maximum tamper resistance for demanding security needs. Hubbell® offers the best in pick-resistant switches. The 6-point tumbler cylinder provides added security to supply override protection from unwarranted access. Barrel locks have been commonly used for fire system control, restricted access and security equipment. Now, Hubbell® has designed the barrel lock into its industrial line of AC switches to put you in control.
Hubbell Wiring Device-Kellems HBL®, HBL1221RKL, Locking Switch, Standard AC Barrel Key Extra Heavy Duty General Purpose, Series: HBL®, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Inductive/Resistive, Cylindrical Key Actuator, Screw Terminal Connection, Threaded Mounting, Composite, Polished Chrome, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.25 x 2.02 in Dimensions

Specifications

 Actuator Cylindrical Key
 Amperage Rating 20 A
 Application Industrial Applications
 Brand Name Hubbell Premise Wiring
 Color Polished Chrome
 Connection Screw Terminal
 Contact Configuration 2-Position
 Dimensions 4.06 x 1.25 x 2.02 in
 Environmental Conditions -40 to 75 deg C
 Load Inductive/Resistive
 Lock Type Cylindrical
 Manufacturer Part Number HBL1221RKL
 Material Composite
 Mounting Threaded
 Number of Poles 1
 PART NUMBER KEYWORDS HBL1221RKL ; 8942817 ; 11830680 ; 783585431574 ; 78358543157 ; 00783585431574 ; 0783585431574
 Power Rating 5540 W
 Series HBL®
 Standards/Approvals CSA Certified|UL 20|Federal Specification W-S-896|UL94 V-2 Flammability Rating
 Type Standard AC Barrel Key Extra Heavy Duty General Purpose
 Voltage Rating 120 to 277 V AC

Features

▪ Lock circuits On or Off
▪ Large brass binding head screws with deep slots
▪ Strip gauge for accurate wiring

Resources

 Catalog
 Catalog Page
 Full Engineering Drawing
 Line Drawing
 Line Drawing URL
 MSDS URL None Required
 Product Data Sheet
