Hubbell

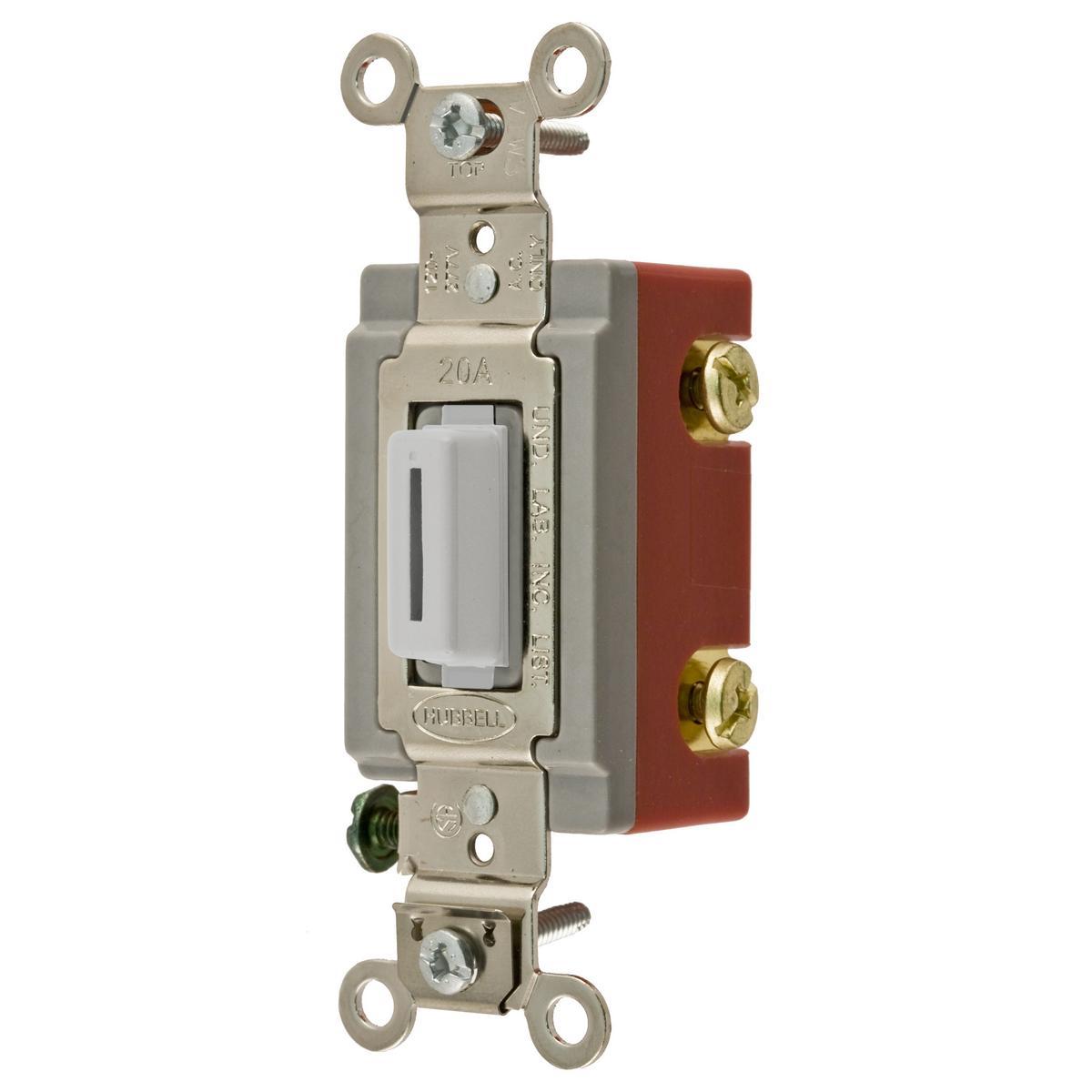

HBL1221LW HUBBELL SP TOG, IND GRD, 20A 120/277V, LK, WH 78358518858

Mouse over image to zoom, click to enlarge

  • HBL1221LW HUBBELL SP TOG, IND GRD, 20A 120/277V, LK, WH 78358518858
  • HBL1221LW HUBBELL SP TOG, IND GRD, 20A 120/277V, LK, WH 78358518858

Description: Wiring Device-Kellems HBL® Locking Switch, Standard Extra Heavy Duty General Purpose, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Inductive/Resistive, Non-Cylindrical Lock, Double Ended Key Actuator, Screw Terminal Connection, Composite, White, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.31 x 1.13 in

Manufacturer PN: HBL1221LW

UPC:  78358518858

Kendall Electric Inc PN: 2936625

Invoice Description:

HBL1221LW HUBBELL SP TOG, IND GRD, 20A 120/277V, LK, WH 78358518858


SPEC SHEET

▸ See All in Locking Switches


How Can We Make This Page Better?

Wiring Device-Kellems HBL® HBL1221LW Standard Extra Heavy Duty General Purpose Locking Switch With Key, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Wiring Device-Kellems HBL® Locking Switch, Standard Extra Heavy Duty General Purpose, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Inductive/Resistive, Non-Cylindrical Lock, Double Ended Key Actuator, Screw Terminal Connection, Composite, White, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.31 x 1.13 in

Specifications

 Actuator Double Ended Key
 Amperage Rating 20 A
 Application Industrial Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Connection Screw Terminal
 Contact Configuration 2-Position
 Dimensions 4.06 x 1.31 x 1.13 in
 Environmental Conditions -40 to 75 deg C
 Load Inductive/Resistive
 Lock Type Non-Cylindrical
 Manufacturer Part Number HBL1221LW
 Material Composite
 Number of Poles 1
 Power Rating 5540 W
 Standards/Approvals CSA Certified|UL 20|Federal Specification W-S-896|UL94 V-2 Flammability Rating
 Type Standard Extra Heavy Duty General Purpose
 Voltage Rating 120 to 277 VAC
