Hubbell

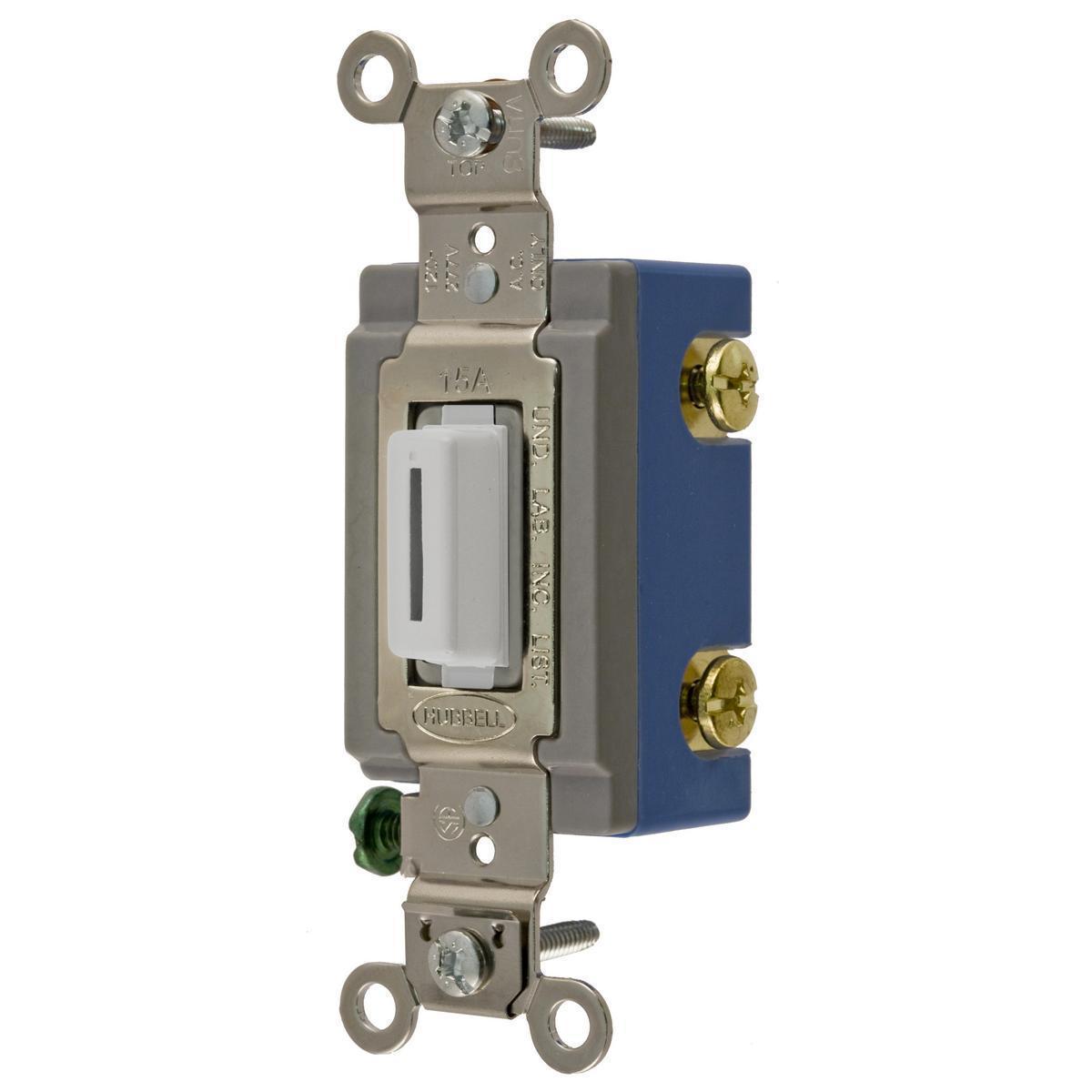

HBL1201LW HUBBELL SP TOG, IND GRD, 15A 120/277V, LK, WH 78358518846

Mouse over image to zoom, click to enlarge

  • HBL1201LW HUBBELL SP TOG, IND GRD, 15A 120/277V, LK, WH 78358518846
  • HBL1201LW HUBBELL SP TOG, IND GRD, 15A 120/277V, LK, WH 78358518846

Description: Hubbell Wiring Device-Kellems, HBL1201LW, AC Keylock Switch, Extra Heavy Duty Industrial Grade Locking, Series: HBL, 120/277 V AC, 15 A, 2 hp, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Inductive/Resistive, Double Ended Key Lock, Threaded Mounting, Composite/Thermoset, White, Environmental Conditions: -40 to 75 deg C Temperature, 4.06 in H x 1.31 in W x 1.12 in D Dimensions

Manufacturer PN: HBL1201LW

UPC:  78358518846

Kendall Electric Inc PN: 2908611

Invoice Description:

HBL1201LW HUBBELL SP TOG, IND GRD, 15A 120/277V, LK, WH 78358518846


SPEC SHEET

▸ See All in Keylock Switches


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL1201LW HBL Extra Heavy Duty Industrial Grade Locking AC Keylock Switch, 120/277 V AC, 15 A, 2 hp, 4155 W Power Rating, 2-Position Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems, HBL1201LW, AC Keylock Switch, Extra Heavy Duty Industrial Grade Locking, Series: HBL, 120/277 V AC, 15 A, 2 hp, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Inductive/Resistive, Double Ended Key Lock, Threaded Mounting, Composite/Thermoset, White, Environmental Conditions: -40 to 75 deg C Temperature, 4.06 in H x 1.31 in W x 1.12 in D Dimensions

Specifications

 Actuator Key Operated
 Amperage Rating 15 A
 Application General Purpose Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Connection Thread
 Contact Configuration 2-Position
 Dimensions 4.06 in H x 1.31 in W x 1.12 in D
 Environmental Conditions -40 to 75 deg C Temperature
 Includes Key Guide
 Load Inductive/Resistive
 Lock Type Double Ended Key
 Manufacturer Part Number HBL1201LW
 Material Composite/Thermoset
 Mounting Threaded
 Number of Poles 1
 Power Rating 2 hp, 4155 W
 Series HBL
 Standards/Approvals CSA Certified|Federal Specification WS896|UL 20 Listed|UL94 V-2 Flammability Rating|NEMA WD1
 Type Extra Heavy Duty Industrial Grade Locking
 Voltage Rating 120/277 V AC

Features

▪ Large brass binding head screws with deep slots
▪ Lock circuits On or Off
▪ Strip gauge for accurate wiring
