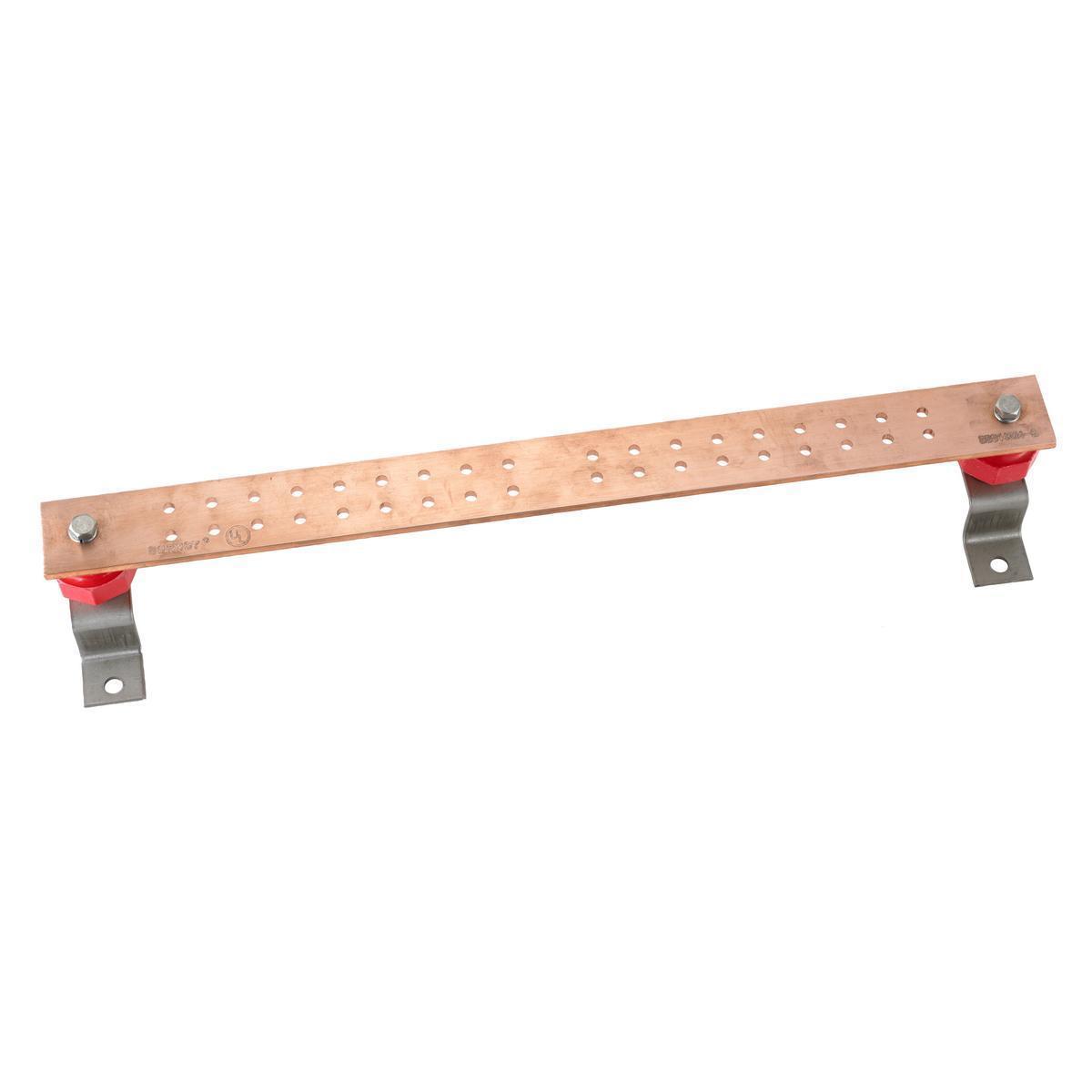

HBBB14224BTP HUBBELL BUSBAR, 2"X 24",16D, 3DB, INSLTR,TN PLTD

Mouse over image to zoom, click to enlarge

  • HBBB14224BTP HUBBELL BUSBAR, 2"X 24",16D, 3DB, INSLTR,TN PLTD
  • HBBB14224BTP HUBBELL BUSBAR, 2"X 24",16D, 3DB, INSLTR,TN PLTD
  • HBBB14224BTP HUBBELL BUSBAR, 2"X 24",16D, 3DB, INSLTR,TN PLTD

Description: PREMISE WIRING, HBBB14224BTP, Bus Bar, Wall Mount, 2 in Bar Width, 24 in Bar Length, 1/4 in Bar Thickness, 38 Holes, 1/4 in Diameter Hole, 18 Lugs, 600 V AC, Copper, Tin Plated

Manufacturer PN: HBBB14224BTP

UPC:  66262031089

Kendall Electric Inc PN: 4730684

Invoice Description:

HBBB14224BTP HUBBELL BUSBAR, 2"X 24",16D, 3DB, INSLTR,TN PLTD


SPEC SHEET

▸ See All in Busbars


How Can We Make This Page Better?

PREMISE WIRING HBBB14224BTP Wall Mount Bus Bar, 24 in L 2 in W, (38) Holes, 600 V AC, Copper

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

PREMISE WIRING, HBBB14224BTP, Bus Bar, Wall Mount, 2 in Bar Width, 24 in Bar Length, 1/4 in Bar Thickness, 38 Holes, 1/4 in Diameter Hole, 18 Lugs, 600 V AC, Copper, Tin Plated

Specifications

 Application Grounding and Bonding
 Bar Length 24 in
 Bar Thickness 1/4 in
 Bar Width 2 in
 Brand Name Hubbell Premise Wiring
 Finish Tin Plated
 Hole Diameter 1/4 in
 Includes Insulator Standoffs, Mounting Bracket
 Manufacturer Part Number HBBB14224BTP
 Material Copper
 Number Of Lugs 18
 Number of Holes 38
 PART NUMBER KEYWORDS HBBB14224BTP ; 12060951 ; 12058479 ; 662620310893 ; 66262031089 ; 00662620310893 ; 0662620310893
 Standards/Approvals TIA-607 Compliant|RoHS Compliant|NEC 250|UL Listed
 Type Wall Mount
 Voltage Rating 600 V AC

Features

▪ For all connections to busbars, oxidation must be scrubbed away and the application of an antioxidant is required
▪ Tin Plated
