Schneider Electric
  • H365R SQD SWITCH FUSIBLE HD 600V
  • H365R SQD SWITCH FUSIBLE HD 600V
  • H365R SQD SWITCH FUSIBLE HD 600V
  • H365R SQD SWITCH FUSIBLE HD 600V

Description: Square D™ Safety Switch, Heavy Duty Fusible Iceproof Rainproof, 600 V AC/DC, 400 A, 50 hp, 125 hp, 3 ph, 3 Pole, 3 Wires, 10/200 kA Short Circuit Current, 3PST, Handle Actuator, NEMA 3R, Surface Mount, Lug Terminal, 27.88 in W x 10.13 in D x 50.31 in H, Steel, Hot Dipped Galvanized

Manufacturer PN: H365R

UPC:  78590145187

Kendall Electric Inc PN: 3959551

Invoice Description:

H365R SQD SWITCH FUSIBLE HD 600V


SPEC SHEET

How Can We Make This Page Better?

Square D™ H365R Heavy Duty Fusible Iceproof Rainproof Safety Switch, 600 V AC/DC, 400 A, 50 hp, 125 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
Square D™ Safety Switch, Heavy Duty Fusible Iceproof Rainproof, 600 V AC/DC, 400 A, 50 hp, 125 hp, 3 ph, 3 Pole, 3 Wires, 10/200 kA Short Circuit Current, 3PST, Handle Actuator, NEMA 3R, Surface Mount, Lug Terminal, 27.88 in W x 10.13 in D x 50.31 in H, Steel, Hot Dipped Galvanized

Specifications

 Actuator Type Handle
 Amperage Rating 400 A
 Application Commercial, Industrial and Indoor/Outdoor Applications
 Brand Name Square D
 Contact Form 3PST

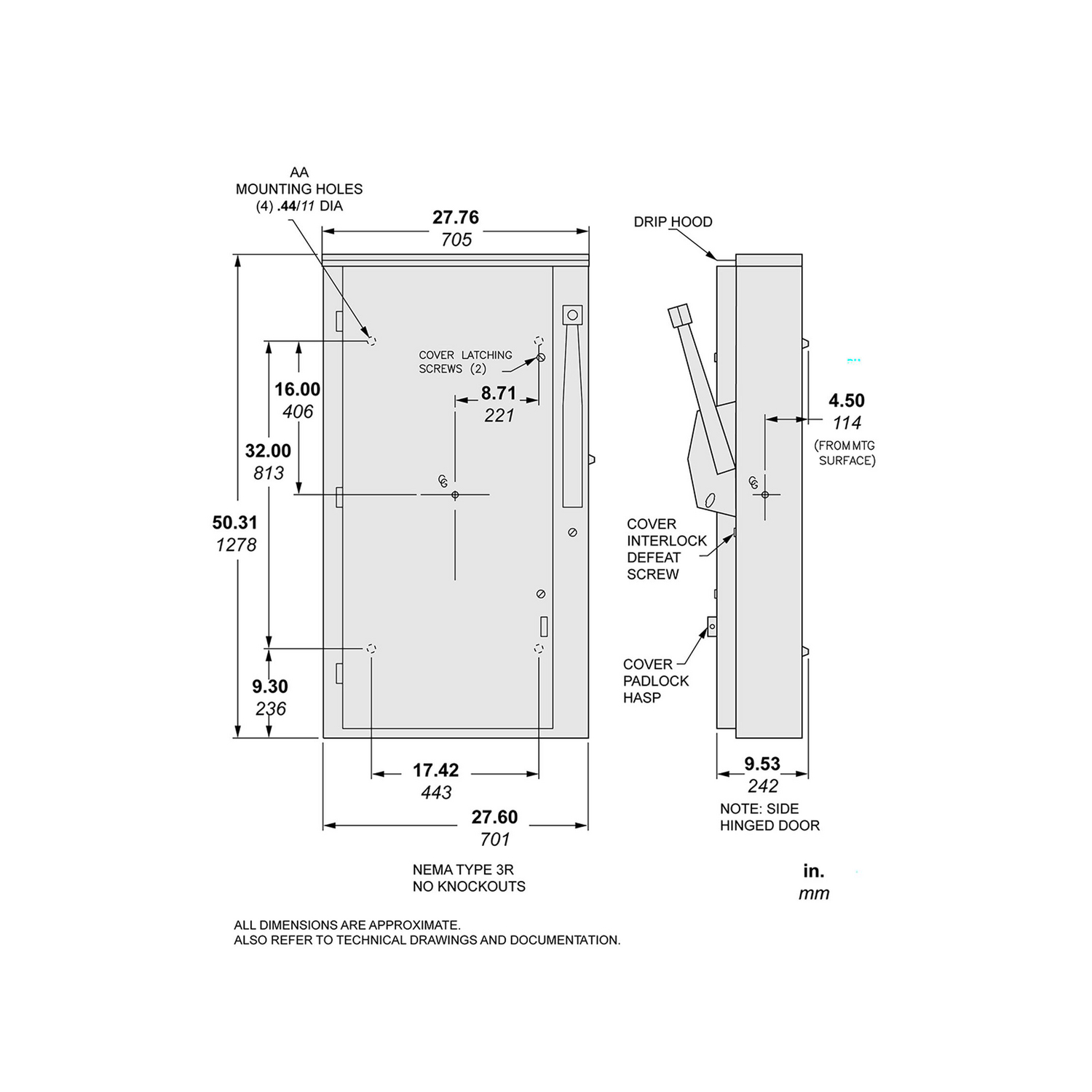

 Dimensions 27.88 in W x 10.13 in D x 50.31 in H
 Enclosure NEMA 3R
 Finish Hot Dipped Galvanized
 Horsepower 50 hp, 125 hp
 Manufacturer Part Number H365R
 Material Steel
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS H365R ; 8051577 ; 785901451877 ; 78590145187 ; 00785901451877 ; 0785901451877
 Phase 3
 Short Circuit Current Rating 10/200 kA
 Standards/Approvals RoHS Compliant|Federal Specifications WS865C|UL 98 File No. E2875/E154828|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Lug
 Type Heavy Duty Fusible Iceproof Rainproof
 Video Links
 Voltage Rating 600 V AC/DC

Features

▪ Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
▪ Quick make, quick break operating mechanism
▪ Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
▪ Red and black handle indicates the ON (red) or OFF (black) condition of the switch
