Schneider Electric

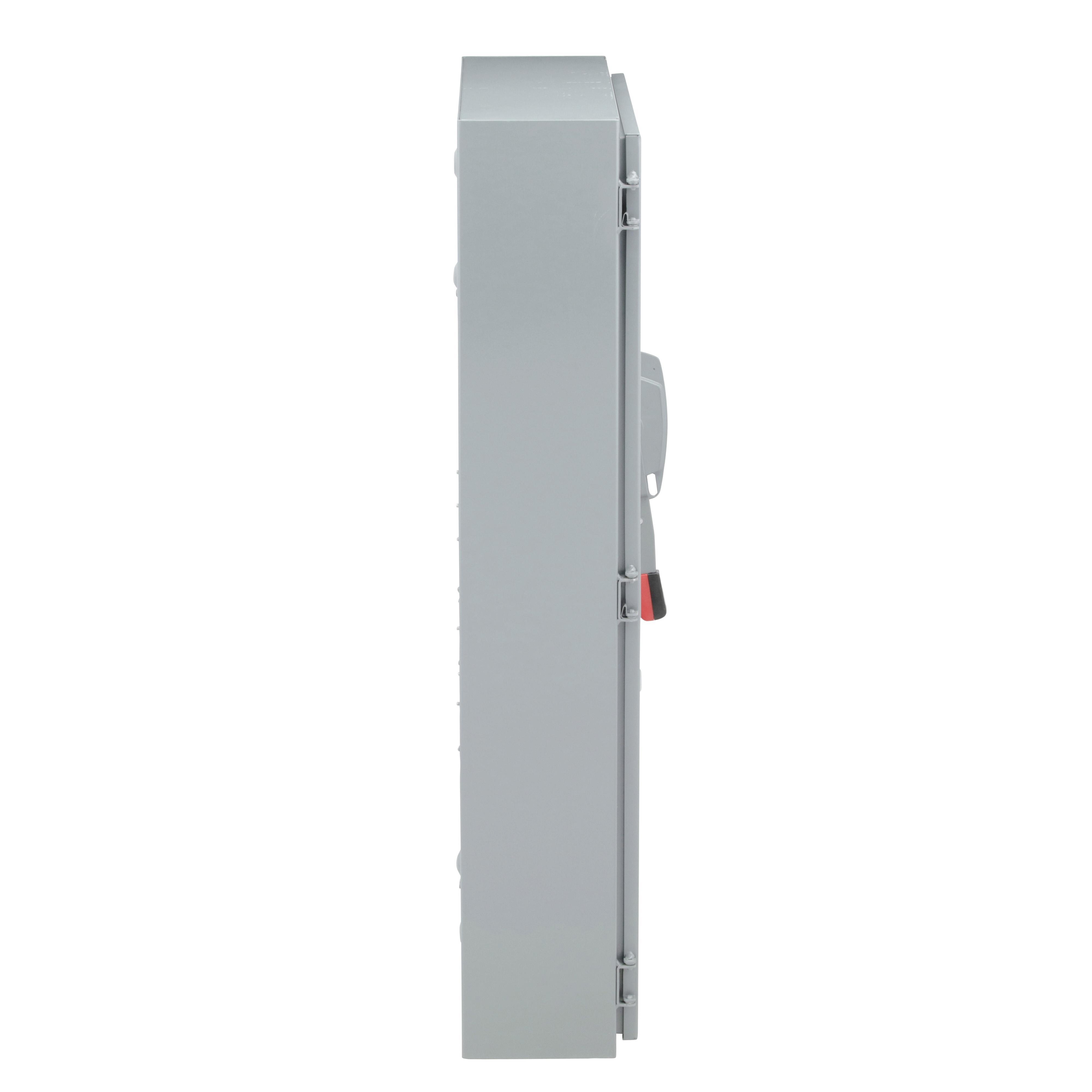

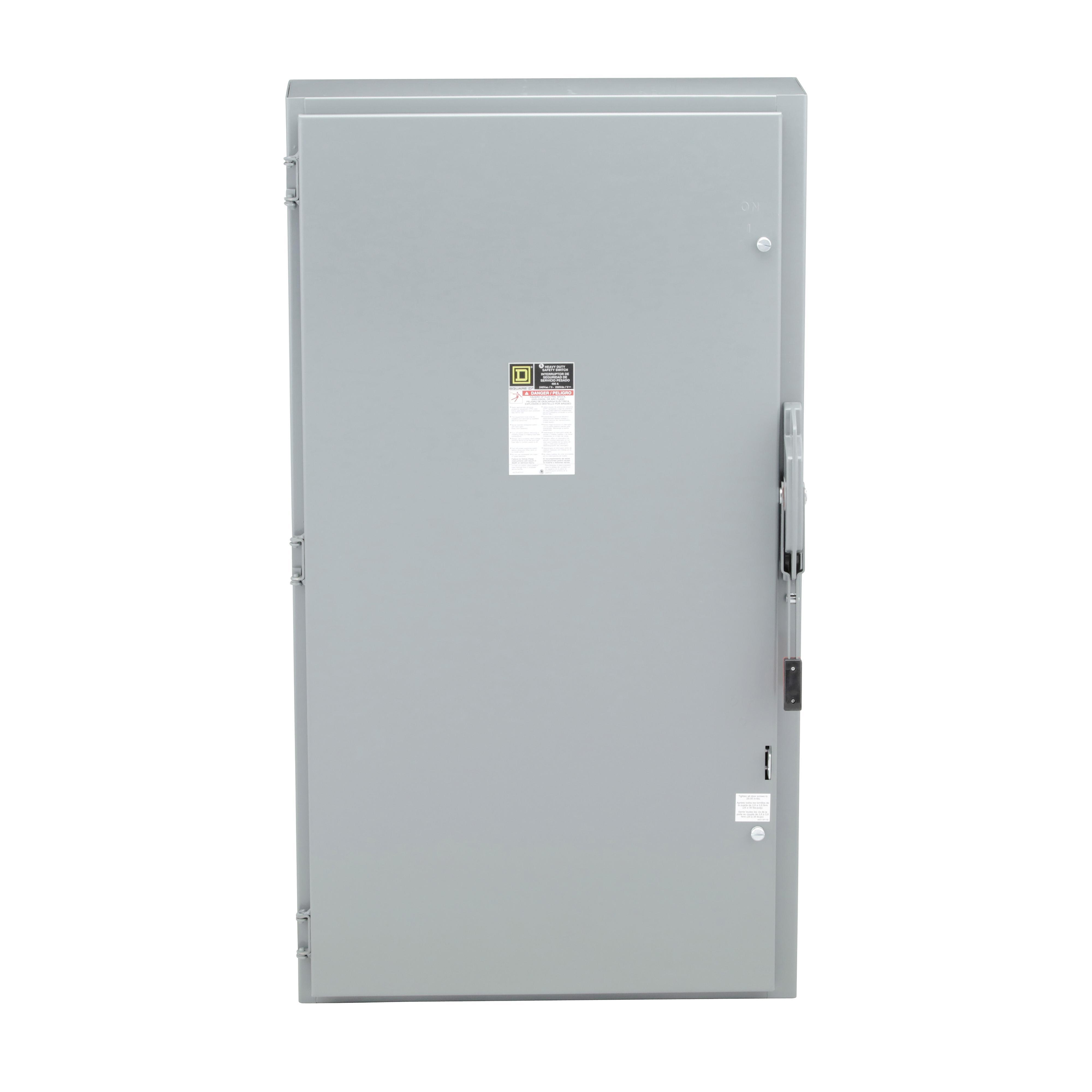

  • H325N SQD SW FUSIBLE HD 240V 400A
  • H325N SQD SW FUSIBLE HD 240V 400A
  • H325N SQD SW FUSIBLE HD 240V 400A
  • H325N SQD SW FUSIBLE HD 240V 400A

Description: Square D™ Safety Switch, Heavy Duty Fusible, Series: E4 Series, 240 V AC/250 V DC, 400 A, 50 hp, 125 hp, 1/2/3 ph, 3 Pole, 4 Wires, 200 kA Short Circuit, 3PST Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 26.25 in W x 10.13 in D x 46.25 in H Dimensions, Cold Rolled Steel, Gray, Painted

Manufacturer PN: H325N

UPC:  78590145036

Kendall Electric Inc PN: 4004361

Invoice Description:

H325N SQD SW FUSIBLE HD 240V 400A


SPEC SHEET

▸ See All in Heavy Duty Safety Switches


How Can We Make This Page Better?

Square D™ H325N E4 Series Heavy Duty Fusible Safety Switch With Factory Installed Neutral, 240 V AC/250 V DC, 400 A, 50 hp, 125 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 240VAC & 250VDC. The enclosure is made of steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
Square D™ Safety Switch, Heavy Duty Fusible, Series: E4 Series, 240 V AC/250 V DC, 400 A, 50 hp, 125 hp, 1/2/3 ph, 3 Pole, 4 Wires, 200 kA Short Circuit, 3PST Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 26.25 in W x 10.13 in D x 46.25 in H Dimensions, Cold Rolled Steel, Gray, Painted

Specifications

 Actuator Type Handle
 Amperage Rating 400 A
 Application Commercial Buildings, Educational Campuses, Healthcare Facilities, Industrial Buildings, Indoor, General Purpose, Mining, Mineral, Manufacturing and Water Wastewater Applications
 Brand Name Square D
 Color Gray
 Contact Form 3PST
 Dimensions 26.25 in W x 10.13 in D x 46.25 in H
 Enclosure NEMA 1
 Finish Painted
 Horsepower 50 hp, 125 hp
 Manufacturer Part Number H325N
 Material Cold Rolled Steel
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 4
 Phase 1/2/3
 Series E4 Series
 Short Circuit Current Rating 200 kA
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E2875/E154828|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating -22 to 104 deg F
 Terminal Type Lug
 Type Heavy Duty Fusible
 Video Links
 Voltage Rating 240 V AC/250 V DC

Features

▪ Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
▪ Factory installed neutral
▪ Quick make, quick break operating mechanism
▪ Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
