American Lighting

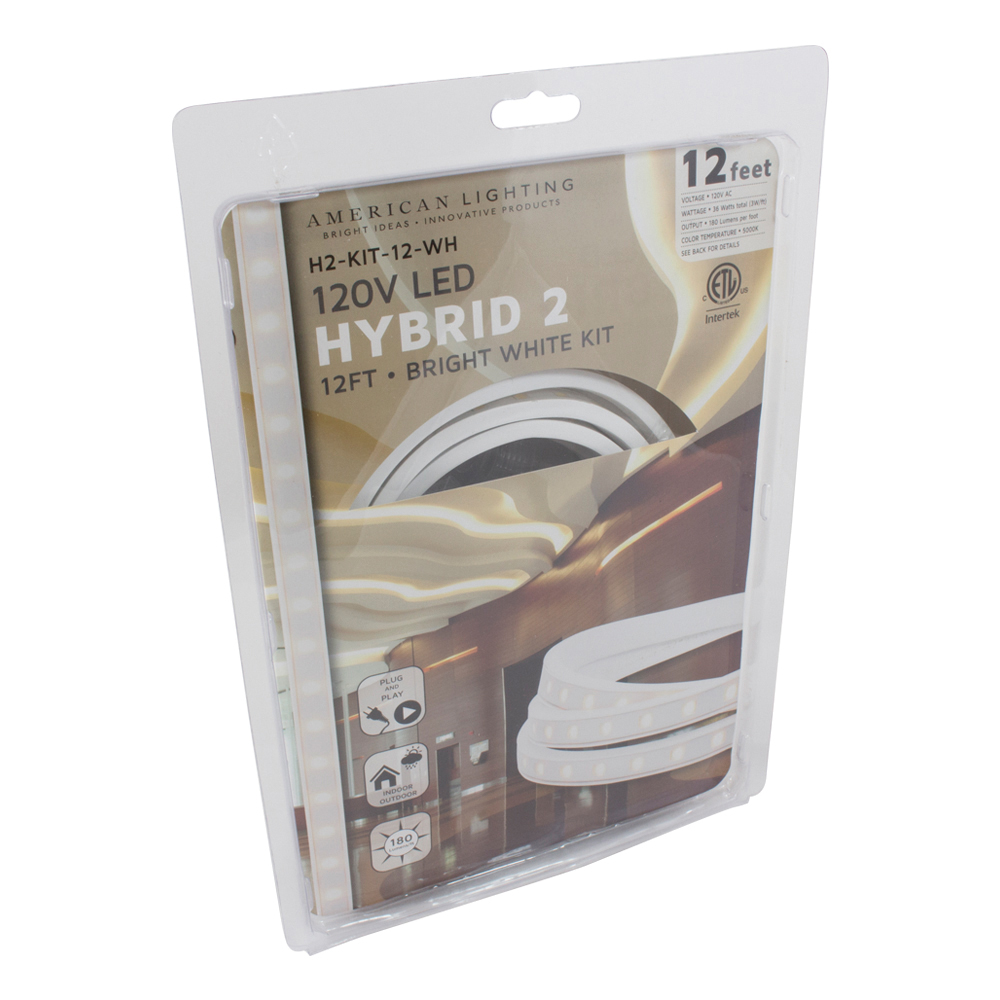

H2KIT12WH H2 KIT 12 WH HYBRID ROPE 5000K 12

Mouse over image to zoom, click to enlarge

  • H2KIT12WH H2 KIT 12 WH HYBRID ROPE 5000K 12
  • H2KIT12WH H2 KIT 12 WH HYBRID ROPE 5000K 12

Description: American Lighting Linear Reel Kit, Dimmable Economical Flexible Linkable Low Profile Non-Cuttable, Series: H2-KIT Tape Rope Hybrid Collection, 120 V AC, LED Lamp, 36 W Lamp, 30000 hr Average Life, Bright White Light, 5000 K Color Temperature, 82 CRI, 10 to 100% Dimmable Ballast, Clear PVC Lens, 180 Lumens, 5 ft Removable Power Cord, IP65 Enclosure, Clip Mounting, Rubber Housing Material, White Housing Finish, 12 ft L x 9/16 in W x 1/4 in H Dimensions

Manufacturer PN: H2-KIT-12-WH

UPC:  71417600004

Kendall Electric Inc PN: 3915340

Invoice Description:

H2KIT12WH H2 KIT 12 WH HYBRID ROPE 5000K 12


SPEC SHEET

▸ See All in Outdoor Strip & Tape Lighting


How Can We Make This Page Better?

American Lighting H2-KIT-12-WH Dimmable Economical Flexible Linkable Low Profile Non-Cuttable Linear Reel Kit, LED Lamp, 120 V AC, White Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Superb light output for indoor and outdoor use. Warm white and bright white interconnectable kits emit 145 and 180 Lumens/ft of light, respectively, while maintaining ETL listing. Parallel wiring ensures that if one LED goes out, the rest of the LEDs continue to operate. Tool-free interconnection of kits and practical linking cables and various mounting accessories make installation fast and straightforward.
American Lighting Linear Reel Kit, Dimmable Economical Flexible Linkable Low Profile Non-Cuttable, Series: H2-KIT Tape Rope Hybrid Collection, 120 V AC, LED Lamp, 36 W Lamp, 30000 hr Average Life, Bright White Light, 5000 K Color Temperature, 82 CRI, 10 to 100% Dimmable Ballast, Clear PVC Lens, 180 Lumens, 5 ft Removable Power Cord, IP65 Enclosure, Clip Mounting, Rubber Housing Material, White Housing Finish, 12 ft L x 9/16 in W x 1/4 in H Dimensions

Specifications

 Application Coves, Accent Lighting, Ledges, Shelves and Indoor/Outdoor Applications
 Average Life 30000 hr
 Ballast Type 10 to 100% Dimmable
 Brand Name American Lighting
 Color Rendering Index CRI 82
 Color Temperature 5000 K
 Cord Type 5 ft Removable Power
 Dimensions 12 ft L x 9/16 in W x 1/4 in H
 Enclosure IP65
 Housing Finish White
 Housing Material Rubber
 Includes 5 ft Removable Power Cord with H2-CONKIT-8A 8 A Inverter, Removable End Cap and 1 ft Mounting Clip
 Lamp Wattage 36 W
 Light Color Bright White
 Lumens 180 Lumens
 Manufacturer Part Number H2-KIT-12-WH
 Mounting Type Clip
 Series H2-KIT Tape Rope Hybrid Collection
 Standards/Approvals ETL Listed|cETLus Listed|RoHS Compliant
 Type Dimmable Economical Flexible Linkable Low Profile Non-Cuttable
 Video Links
 Voltage Rating 120 V AC

Features

▪ Up to 180 Lumens/ft and 82+ CRI for 2700 K (WW) and 5000 K (WH) reels
▪ 120 VAC kits consume only 3 W/ft
▪ Dimmable with most CL and ELV dimmers
▪ Economical create long run distances without the need for a driver ( up to 150 ft)
