Cooper Lighting Solutions

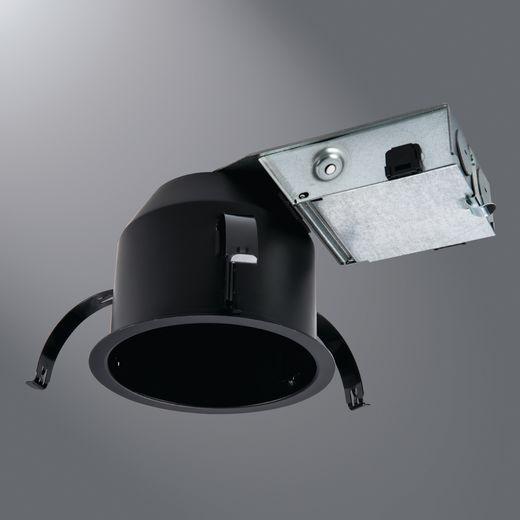

  • H245RICAT HALO 4" ICAT ULTRA-SHALLOW REMOLDER, 120V
  • H245RICAT HALO 4" ICAT ULTRA-SHALLOW REMOLDER, 120V
  • H245RICAT HALO 4" ICAT ULTRA-SHALLOW REMOLDER, 120V

Description: Halo AIR-TITE® Lamp Housing, Ultra-Shallow, 120 to 277 V AC, 4-1/16 in Ceiling Opening, LED Lamp, 15 W Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use With: Halo LED Integrated Trim, 4 in Dia, 2.3 in Height, 6-1/2 in Width, Aluminum Housing

Manufacturer PN: H245RICAT

UPC:  08008375652

Kendall Electric Inc PN: 3636384

Invoice Description:

H245RICAT HALO 4" ICAT ULTRA-SHALLOW REMOLDER, 120V


SPEC SHEET

▸ See All in Recessed Lighting Housings


How Can We Make This Page Better?

Halo AIR-TITE® H245RICAT Ultra-Shallow Lamp Housing, LED Lamp, IC Insulation, 120 to 277 V AC, 4-1/16 in Ceiling Opening, Aluminum Housing

Log In for Pricing and Availability




Description

Suitable for 2x4 framing or shallow plenum construction. Suitable for below-the-ceiling installation. Retractable mounting springs designed for easy installation or removal. Quick Connect remodel wiring tray. Hinged and captive door on junction box allows for easy access. Insulated ceiling listed and Air-Tite
Halo AIR-TITE® Lamp Housing, Ultra-Shallow, 120 to 277 V AC, 4-1/16 in Ceiling Opening, LED Lamp, 15 W Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use With: Halo LED Integrated Trim, 4 in Dia, 2.3 in Height, 6-1/2 in Width, Aluminum Housing

Specifications

 Application For 2x4 framing/shallow plenum construction and lighting applications
 Brand Name Halo
 Ceiling Opening 4-1/16 in
 Enclosure IP56
 Height 2.3 in
 Housing Material Aluminum
 Lamp Type LED
 Lamp Wattage 15 W
 Manufacturer Part Number H245RICAT
 Mounting Type Ceiling
 Number of Lamps 1
 PART NUMBER KEYWORDS H245RICAT ; 13834066 ; 080083756520 ; 80083756520 ; 08008375652 ; 00080083756520
 Standards/Approvals cUL Listed|ASTM E283|ECCN EAR99NLR|cULus Listed for Damp Locations|Wet Locations Listed
 Suitable For Use With Halo LED Integrated Trim
 Type Ultra-Shallow
 Voltage Rating 120 to 277 V AC
 Width 6-1/2 in

Features

▪ Got-Nail™ bar hangers
▪ Pass-N-Thru™ toolless shortening of bar hangers
▪ Slide-N-Side™ wire traps
▪ Die formed housing and plaster frame
▪ Housing may be removed from plaster frame for junction box access
▪ Retractable mounting springs designed for easy installation or removal
▪ Hinged and captive door on junction box allows for easy access
▪ Insulated ceiling listed and Air-Tite™
