Leviton

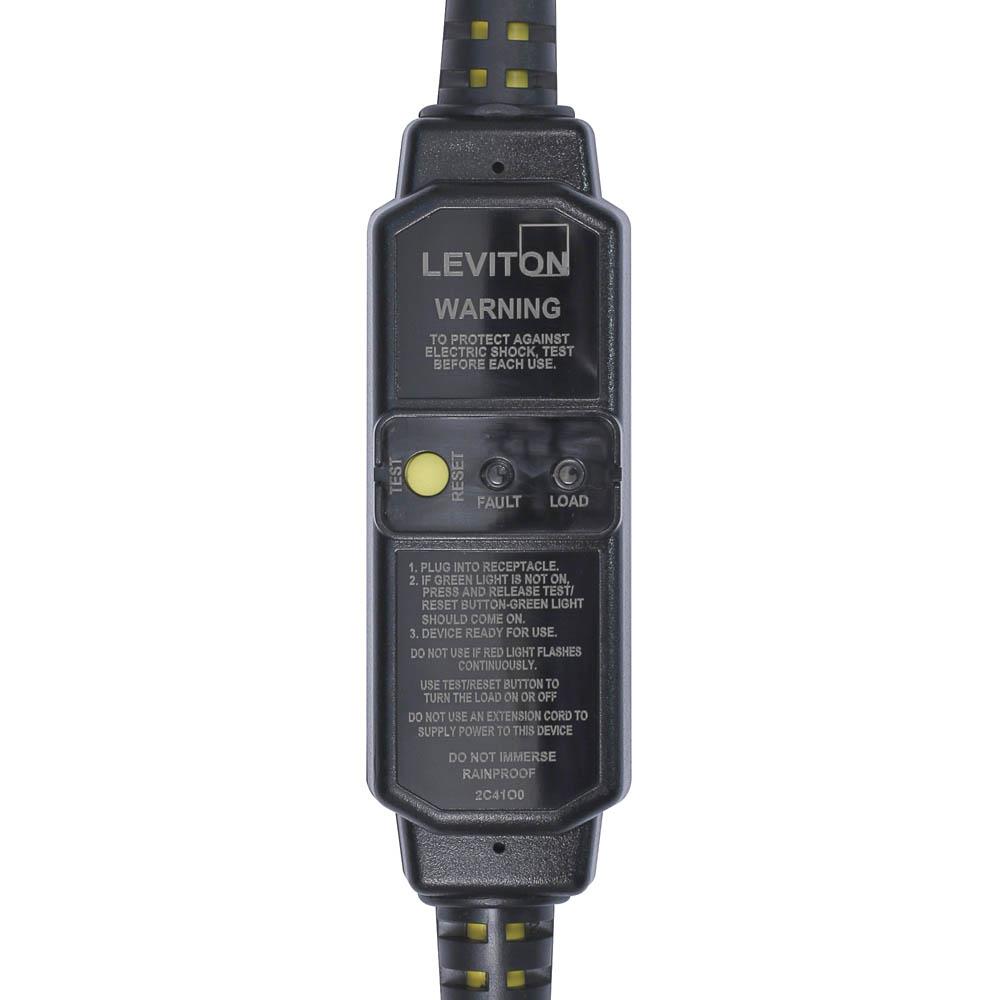

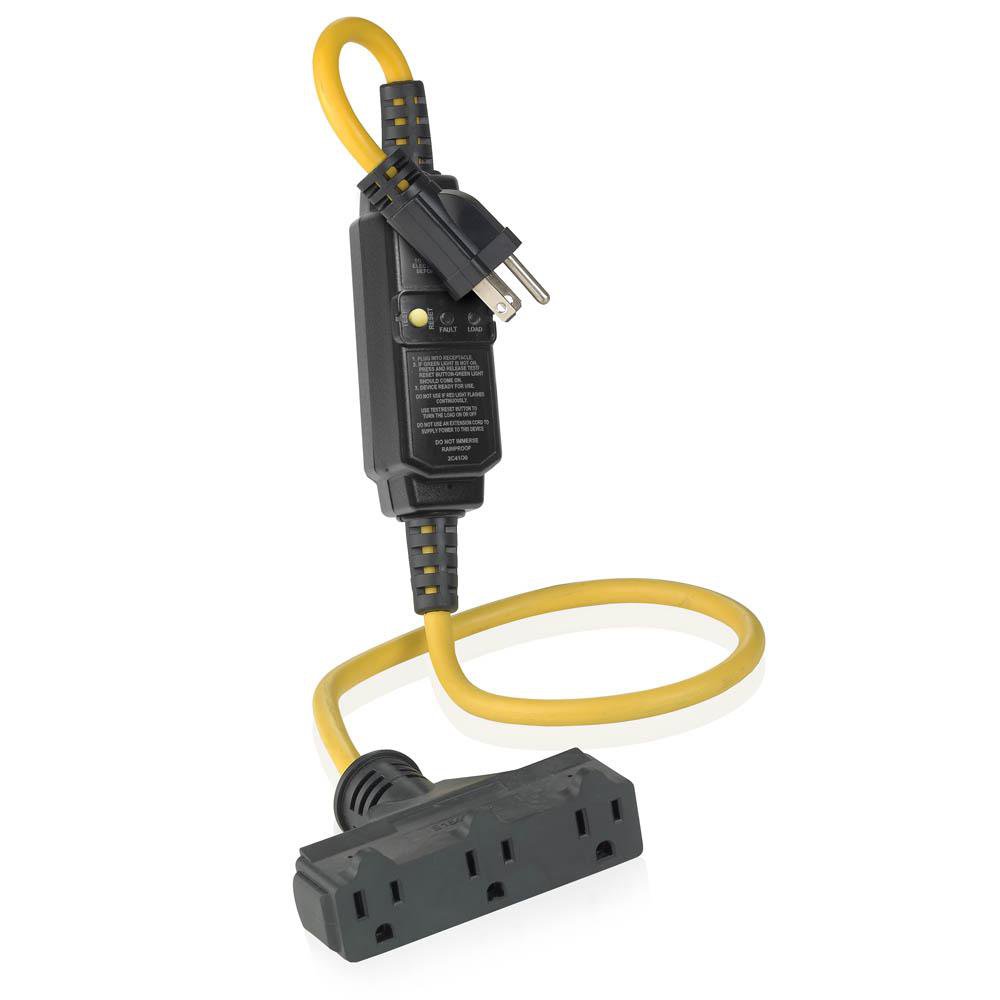

GSCA1-3TC LEVITON GFI PIGTAIL

Mouse over image to zoom, click to enlarge

  • GSCA1-3TC LEVITON GFI PIGTAIL
  • GSCA1-3TC LEVITON GFI PIGTAIL

Description: Leviton®, GSCA1-3TC, Self Test, Cord Set, Series: GSCA, 120 V AC, 15 A, 3/4 hp Power, 14/3 SJTW Cord, NEMA 5-15R Receptacle, NEMA 5-15P Plug, -35 to 66 deg C, Polycarbonate Jacket

Manufacturer PN: GSCA1-3TC

UPC:  07847768296

Kendall Electric Inc PN: 4571946

Invoice Description:

GSCA1-3TC LEVITON GFI PIGTAIL


SPEC SHEET

▸ See All in GFCI Receptacles


How Can We Make This Page Better?

Leviton® GSCA1-3TC GSCA Cord Set Self Test, 120 V AC, 15 A, 14/3 SJTW Cord, NEMA 5-15R Receptacle, NEMA 5-15P Plug

Log In for Pricing and Availability




Description

Leviton®, GSCA1-3TC, Self Test, Cord Set, Series: GSCA, 120 V AC, 15 A, 3/4 hp Power, 14/3 SJTW Cord, NEMA 5-15R Receptacle, NEMA 5-15P Plug, -35 to 66 deg C, Polycarbonate Jacket

Specifications

 Amperage Rating 15 A
 Brand Name Leviton®
 Cord Type 14/3 SJTW
 Jacket Material Polycarbonate
 Manufacturer Part Number GSCA1-3TC
 PART NUMBER KEYWORDS GSCA1-3TC ; GSCA13TC
 Plug Type NEMA 5-15P
 Power Rating 3/4 hp
 Receptacle NEMA 5-15R
 Series GSCA
 Standards/Approvals File E-48380 UL 498|Class A (GFCI) UL 943|File LR-57811 CSA C22.2|C-73 ANSI|UL94
 Temperature Rating -35 to 66 deg C
 Type Cord Set
 Voltage Rating 120 V AC

Features

▪ Weather-resistant SJTW cables
▪ Equipped with Industrial Grade plugs and connectors to provide long service life in heavy-duty applications
▪ Power Indicator lights go OFF if GFCI trips, power is interrupted or line cord is unplugged
▪ Polycarbonate, ultrasonically welded bodies provide long service life and excellent resistance to harsh weather
▪ RTV injected at cord entrance and exit of the housings for better protection against moisture intrusion

Resources

 Catalog Page
 Product Data Sheet
