Eaton

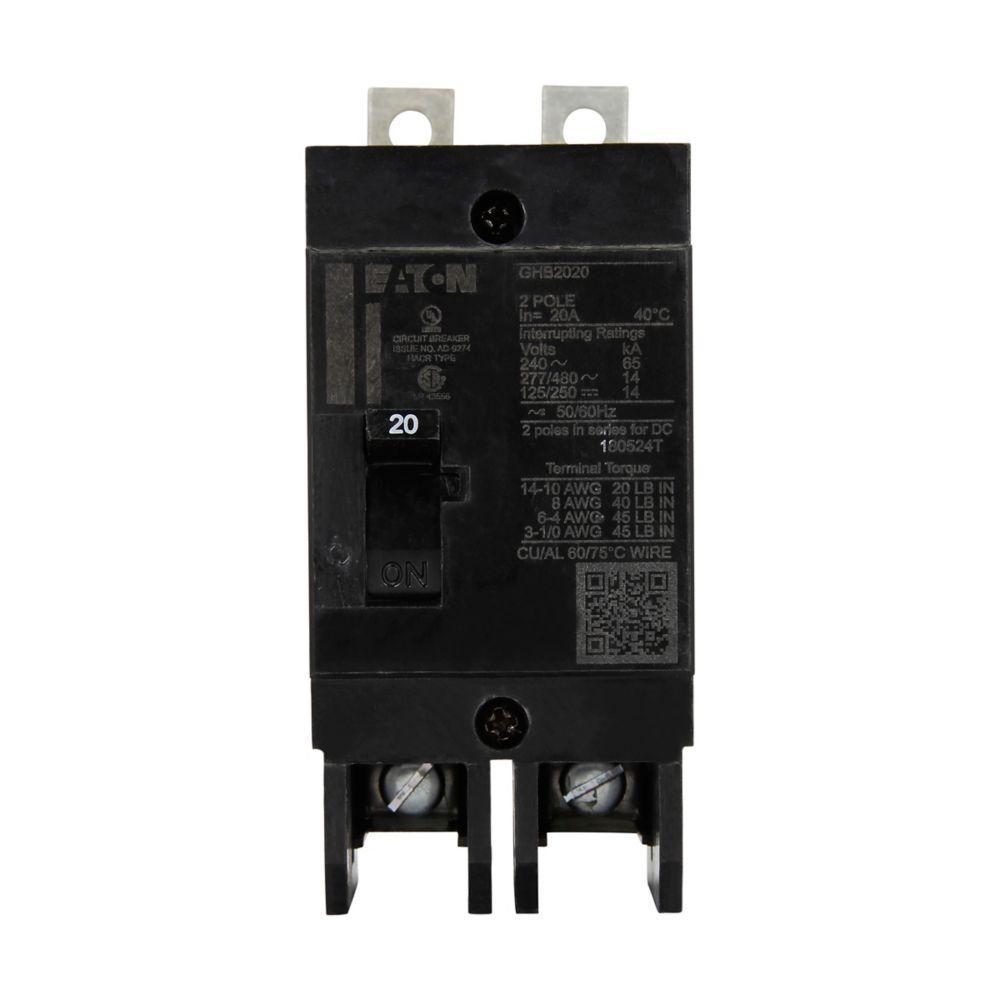

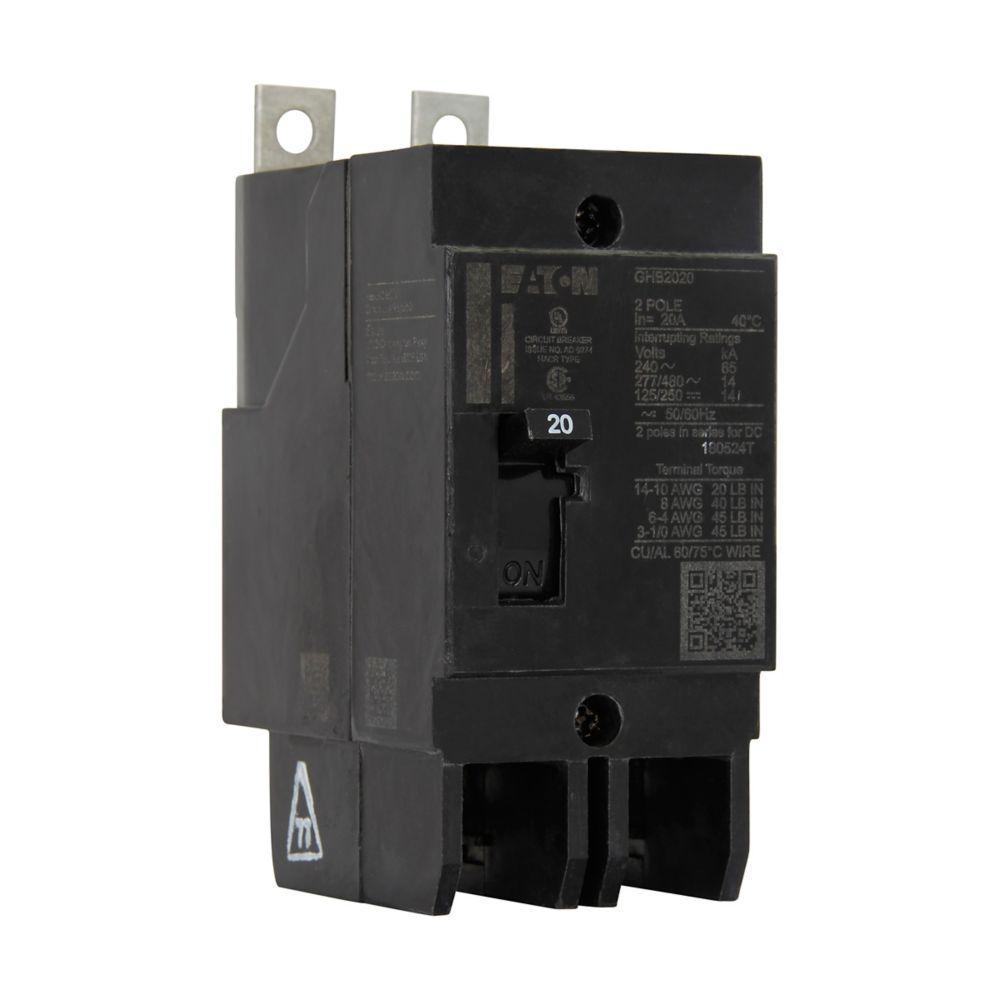

GHB2020 CH SERIES C, G-FRAME MCCB 2P 20 AMP..

Mouse over image to zoom, click to enlarge

  • GHB2020 CH SERIES C, G-FRAME MCCB 2P 20 AMP..
  • GHB2020 CH SERIES C, G-FRAME MCCB 2P 20 AMP..
  • GHB2020 CH SERIES C, G-FRAME MCCB 2P 20 AMP..

Description: EATON Molded Case Circuit Breaker, Type GHB, Series: C Series, 480Y/277 V AC/125/250 V DC, 20 A, 50/60 Hz Frequency, 65/14 kA Interrupt, G Frame, Thermal Magnetic Trip, 2 Pole, 3 ph, Line/Load Connection, 14 to 10 AWG Wire, NEMA 4 Enclosure, Bolted-On Mounting, 40 deg C, 4.7 in L x 2.1 in W x 2.8 in H Dimensions

Manufacturer PN: GHB2020

UPC:  78667991120

Kendall Electric Inc PN: 2020601

Invoice Description:

GHB2020 CH SERIES C, G-FRAME MCCB 2P 20 AMP..


SPEC SHEET

▸ See All in Molded Case Circuit Breakers


How Can We Make This Page Better?

EATON GHB2020 C Series Type GHB Molded Case Circuit Breaker, 480Y/277 V AC/125/250 V DC, 20 A, 65/14 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Description

Experience the superior quality of the Eaton Series C Molded Case Circuit Breaker.  The Series C circuit breaker is ideal for panelboards, switchboards, motor control centers, and busway applications. Choose from a premier selection of trip units including thermal magnetic, electronic, and magnetic only switches. Available for systems up to 600 VAC or 250 VDC with current ratings up to 800A.
EATON Molded Case Circuit Breaker, Type GHB, Series: C Series, 480Y/277 V AC/125/250 V DC, 20 A, 50/60 Hz Frequency, 65/14 kA Interrupt, G Frame, Thermal Magnetic Trip, 2 Pole, 3 ph, Line/Load Connection, 14 to 10 AWG Wire, NEMA 4 Enclosure, Bolted-On Mounting, 40 deg C, 4.7 in L x 2.1 in W x 2.8 in H Dimensions

Specifications

 Amperage Rating 20 A
 Application Circuit Protection Applications
 Brand Name EATON
 Connection Type Line/Load
 Dimensions 4.7 in L x 2.1 in W x 2.8 in H
 Enclosure NEMA 4
 Frame G
 Frequency Rating 50/60 Hz
 Manufacturer Part Number GHB2020
 Mounting Type Bolted-On
 Number of Poles 2
 Phase 3
 Series C Series
 Standards/Approvals UL Listed,Federal Specifications Classification W-C375B
 Temperature Rating 40 deg C
 Type Type GHB
 Video Links
 Voltage Rating 480Y/277 V AC/125/250 V DC

Features

▪ Patented contact design features high speed "blow open" action, resulting in superior performance
▪ Circuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584-2002, guide for performing arc flash hazard calculations
▪ Choose from a complete family of trip units including thermal magnetic, electronic and magnetic only switches
