Leviton

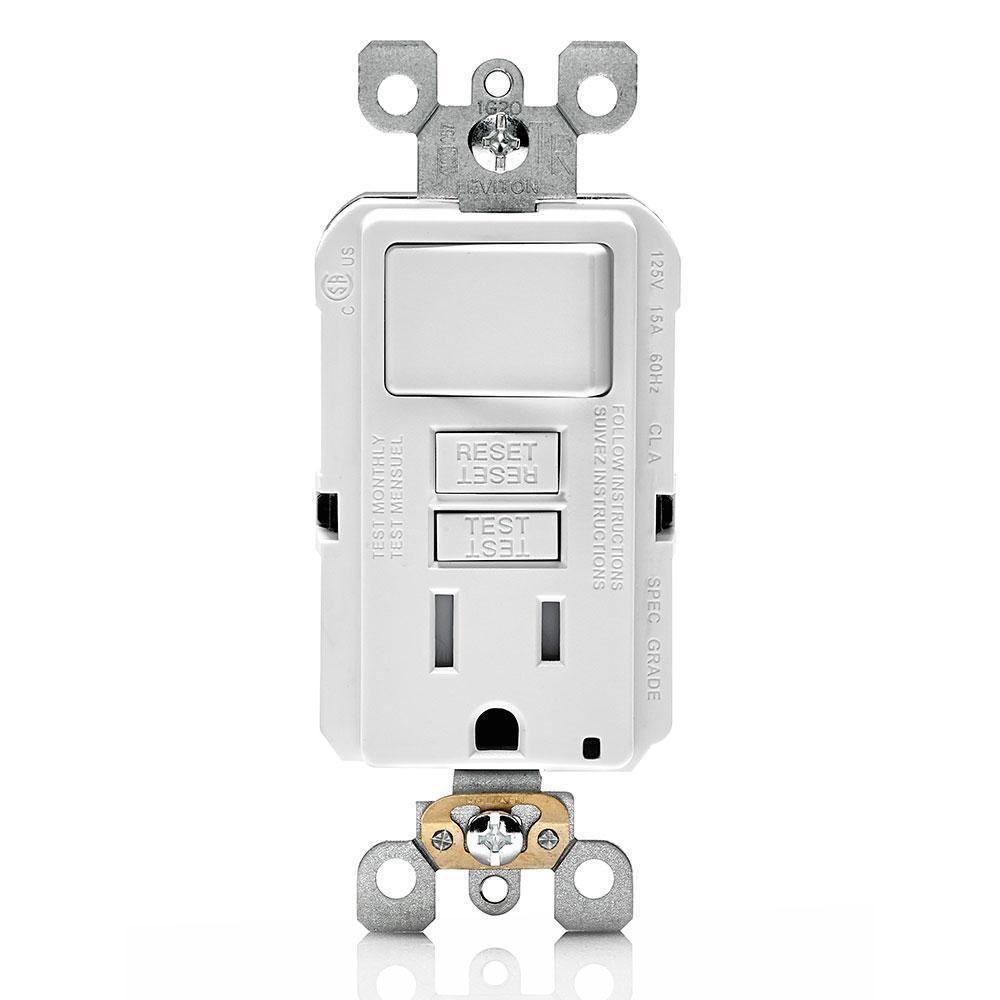

GFSW1-W LEV 15A/125V GFCI /SWITCH TAMP RES WHITE

Mouse over image to zoom, click to enlarge

Description: Leviton® SmartlockPro® Slim® Combination Switch and Receptacle, GFCI Monochromatic Self-Test Single Slim, 15 A, 125 V AC Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, NEMA 5-15R Enclosure, Wall Mounting, Self-Grounding Grounding Style, Commercial Grade, Screw Terminal, 1250 VAC Dielectric Strength, Polycarbonate/Thermoplastic, White, 1.69 in W x 1.32 in D x 4.21 in H Dimensions

Manufacturer PN: GFSW1-W

UPC:  07847771476

Kendall Electric Inc PN: 3493280

Invoice Description:

GFSW1-W LEV 15A/125V GFCI /SWITCH TAMP RES WHITE


SPEC SHEET

▸ See All in Switches & Receptacles


How Can We Make This Page Better?

Leviton® SmartlockPro® Slim® GFSW1-W GFCI Monochromatic Self-Test Single Slim Combination Switch and Receptacle With LED Indicator, 15 A, 125 V AC, 2 Poles, 3 Wires, 14 to 10 AWG Wire

Log In for Pricing and Availability




Description

The SmartlockPro® self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile ON the market, the device allows for fast and easy installation, while Leviton® patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro® self-test GFCI is the smart choice in ground fault circuit interrupter protection.
Leviton® SmartlockPro® Slim® Combination Switch and Receptacle, GFCI Monochromatic Self-Test Single Slim, 15 A, 125 V AC Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, NEMA 5-15R Enclosure, Wall Mounting, Self-Grounding Grounding Style, Commercial Grade, Screw Terminal, 1250 VAC Dielectric Strength, Polycarbonate/Thermoplastic, White, 1.69 in W x 1.32 in D x 4.21 in H Dimensions

Specifications

 Application Commercial Applications
 Brand Name Leviton®
 Color White
 Dielectric Strength 1250 V AC
 Dimensions 1.69 in W x 1.32 in D x 4.21 in H
 Electrical Ratings 15 A, 125 V AC
 Enclosure NEMA 5-15R
 Grade Commercial
 Grounding Style Self-Grounding
 Manufacturer Part Number GFSW1-W
 Material Polycarbonate/Thermoplastic
 Mounting Wall
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS GFSW1-W ; GFSW1W
 Standards/Approvals cCSAus File No. LR57811|CSA C22.2 File No. 144.1-06 Class A/42/111|NOM 057|UL 20|UL 498|UL 943
 Terminal Type Screw
 Type GFCI Monochromatic Self-Test Single Slim
 Video Links

Features

▪ Terminals allow for easy wiring options - back and side wire capable
▪ External back wire clamps provide visual indication of proper wire seating
▪ Withstands high torque and resists wire pullout
▪ Standard brass self-grounding clip
▪ Improved immunity to high frequency noise reduces nuisance tripping
▪ Advanced electronics design provides superior resistance to electrical surges and over voltages
▪ Without wallplate/faceplate
▪ Tamper-resistant
▪ Single receptacle GFCI with switch saves space and adds convenience
▪ Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
▪ On initial power up, tests the GFCI circuit within 3 sec
▪ Auto-monitoring exceeds the UL requirement
▪ Auto adapts and shifts to more frequent testing if potential problem is detected
▪ Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal for at a glance analysis
▪ Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
▪ Electronics are designed to minimize any false triggers
▪ Reduced depth makes it easier to install in any electrical box, even shallow ones
