Hubbell

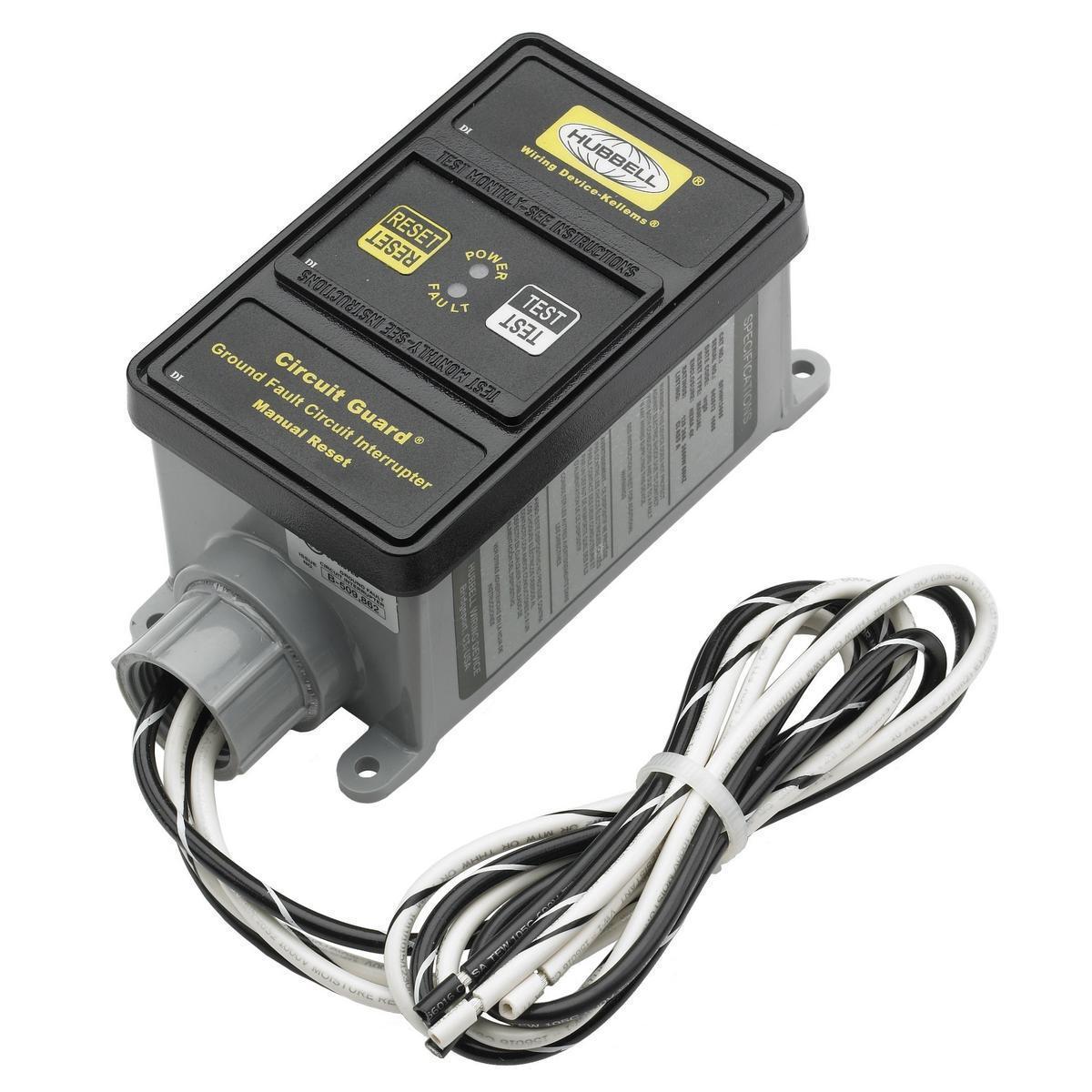

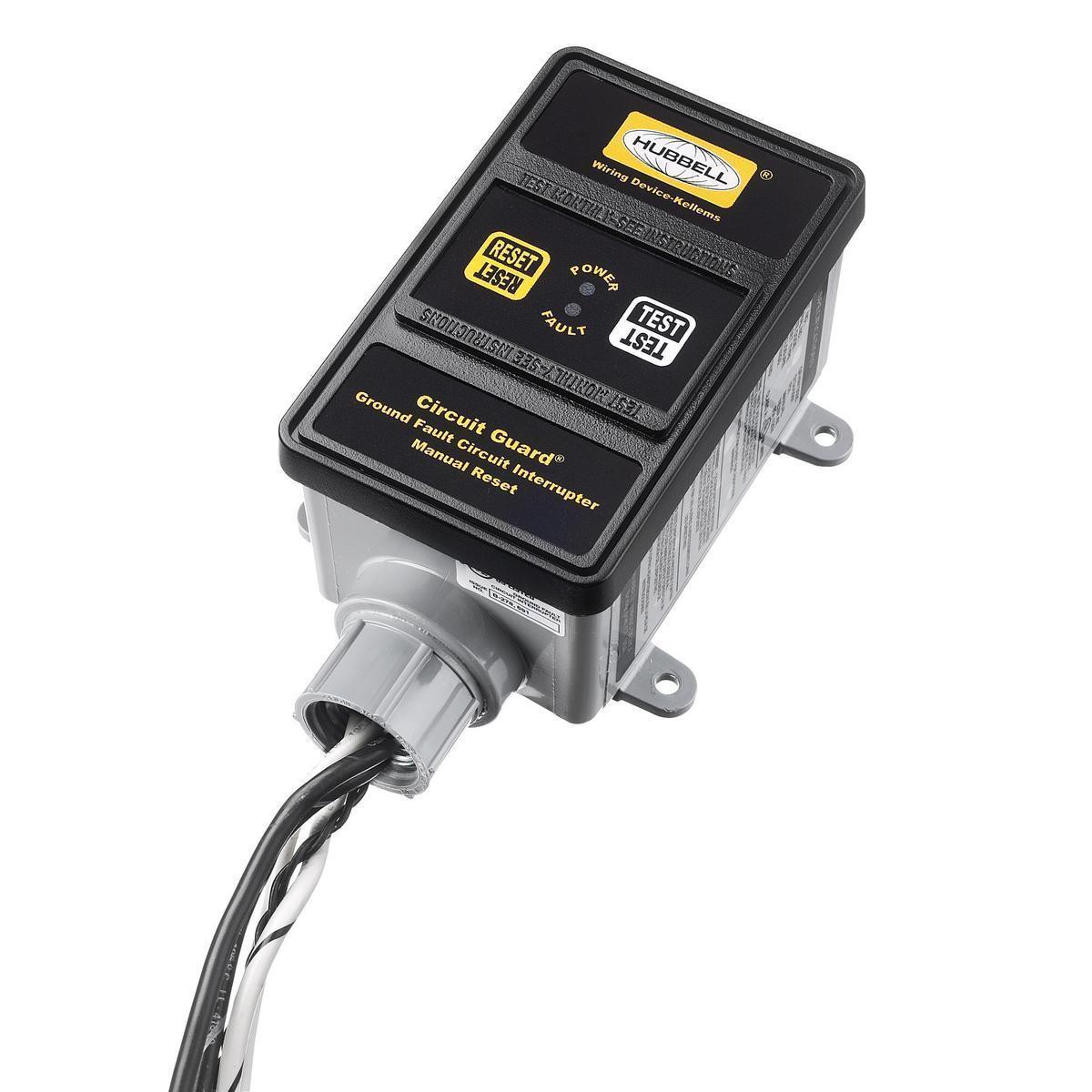

GFHW23005 HUBBELL HW GFCI, 30A 240V, MAN 78358500521

Mouse over image to zoom, click to enlarge

  • GFHW23005 HUBBELL HW GFCI, 30A 240V, MAN 78358500521
  • GFHW23005 HUBBELL HW GFCI, 30A 240V, MAN 78358500521
  • GFHW23005 HUBBELL HW GFCI, 30A 240V, MAN 78358500521

Description: Wiring Device-Kellems, GFHW23005, 3-Wire Manual Multi-Strand Fabricated Hard Wired Gfci, 1-Phase Corrosion Resistant Grounding Male Standard Cord Mount, 28 VDC, 30 A, 7200 W Power, 60 Hz Frequency, -30 to 150 deg F, 0.025 s Response, NEMA 4X Enclosure, Composite, Yellow, 24 in L Dimensions

Manufacturer PN: GFHW23005

UPC:  78358500521

Kendall Electric Inc PN: 2290108

Invoice Description:

GFHW23005 HUBBELL HW GFCI, 30A 240V, MAN 78358500521


SPEC SHEET

▸ See All in Hard Wired GFCI


How Can We Make This Page Better?

Wiring Device-Kellems GFHW23005 1-Phase Corrosion Resistant Grounding Male Standard Cord Mount 3-Wire Manual Multi-Strand Fabricated Hard Wired Gfci, 28 VDC, 30 A, 7200 W Power Rating, NEMA 4X Enclosure, Composite

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Wiring Device-Kellems, GFHW23005, 3-Wire Manual Multi-Strand Fabricated Hard Wired Gfci, 1-Phase Corrosion Resistant Grounding Male Standard Cord Mount, 28 VDC, 30 A, 7200 W Power, 60 Hz Frequency, -30 to 150 deg F, 0.025 s Response, NEMA 4X Enclosure, Composite, Yellow, 24 in L Dimensions

Specifications

 Amperage Rating 30 A
 Application Industrial, Commercial and Wire into Circuit Applications
 Brand Name Hubbell Premise Wiring
 Color Yellow
 Dimensions 24 in L
 Enclosure NEMA 4X
 Frequency Rating 60 Hz
 Includes Foam Gasket, Mounting Template and Detailed Instructions
 Manufacturer Part Number GFHW23005
 Material Composite
 Power Rating 7200 W
 Response Time 0.025 s
 Standards/Approvals cULus Listed|UL 943
 Temperature Rating -30 to 150 deg F
 Type 1-Phase Corrosion Resistant Grounding Male Standard Cord Mount
 Voltage Rating 28 VDC

Features

▪ Class A GFCI, 10000 cycles (6000 with load and 4000 without load) life
▪ Green light on power on, red blinking light plus optional audible alarm power off indicator
▪ Copper conductor
▪ 0.95 maximum humidity
▪ Panel/surface mounting
▪ Trips if ground and neutral touch at load side
▪ Open neutral protection Trips upon loss of neutral
▪ Requires the GFCI to be manually reset for use by pressing the reset button after the loss of primary power
▪ Must be also manually reset after a ground fault condition
▪ Manual reset is ideal for applications where operator injury might occur if equipment were to restart after a power failure
▪ Offers a 4 to 6 mA trip level
▪ Red light begins blinking when a ground fault is detected and the output power is interrupted
▪ Thermoplastic insulation
▪ 6 Ohm or less grounded neutral detection
▪ Double insulated switch interface, electromagnetic latching mechanism
▪ Black background with yellow lettering label color
