Hubbell

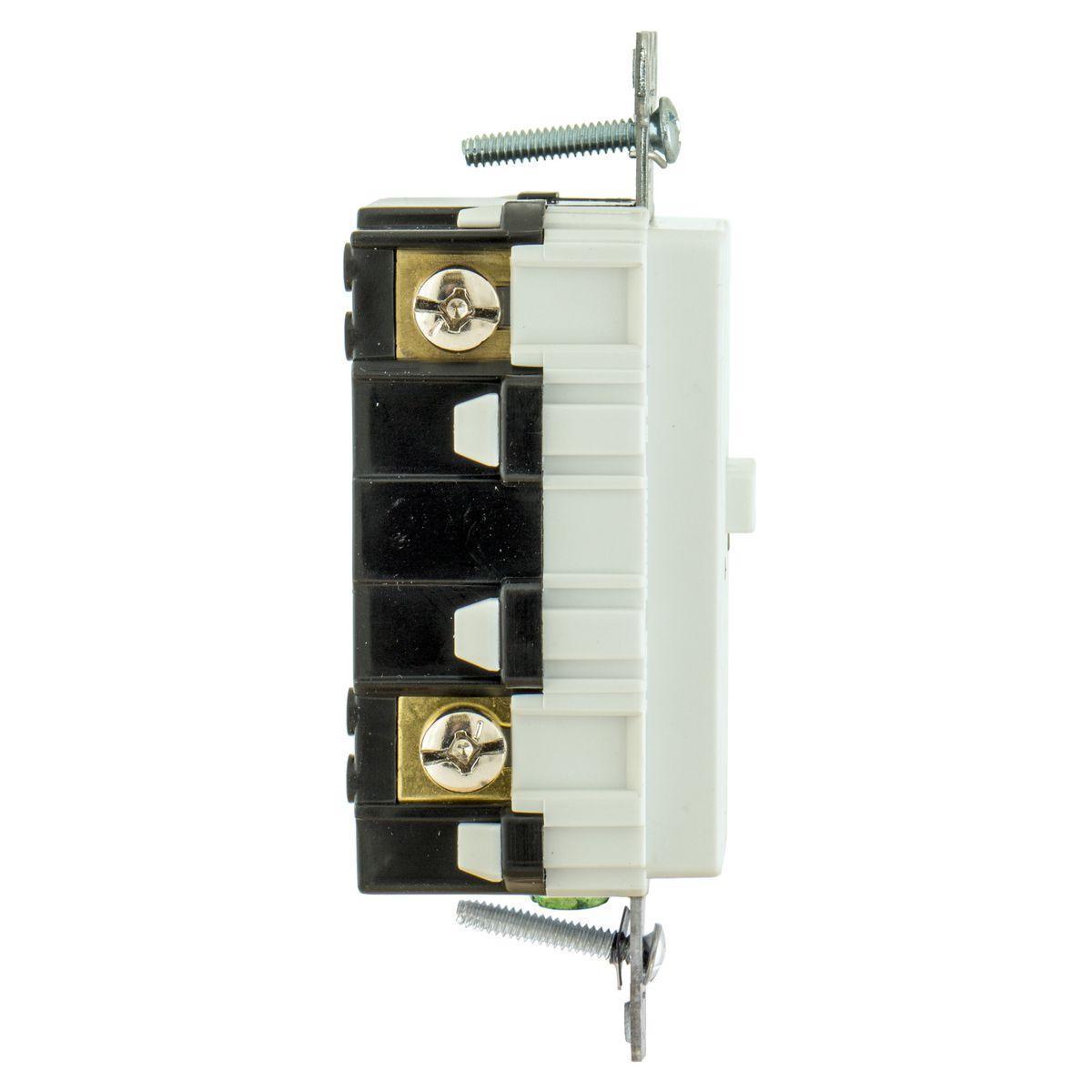

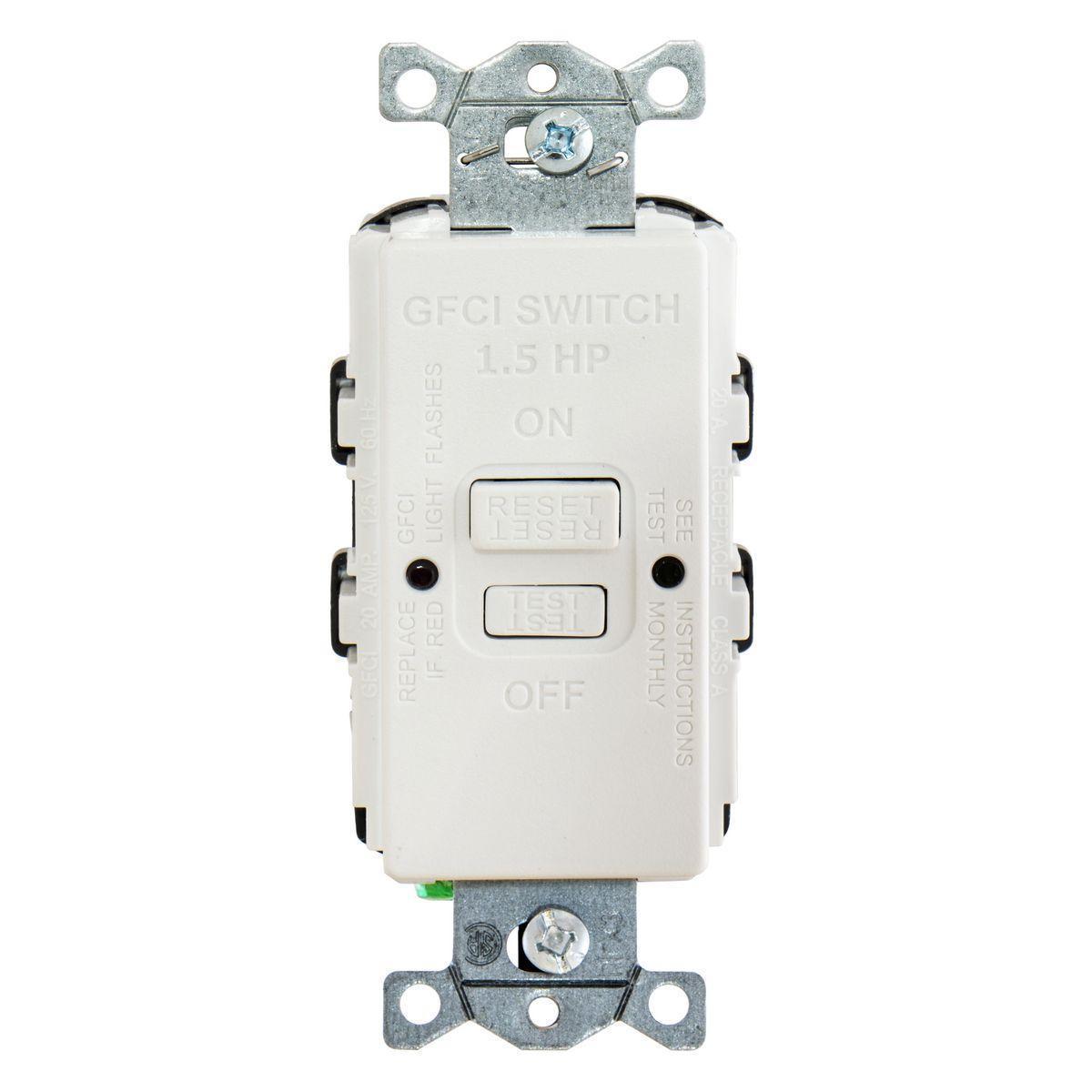

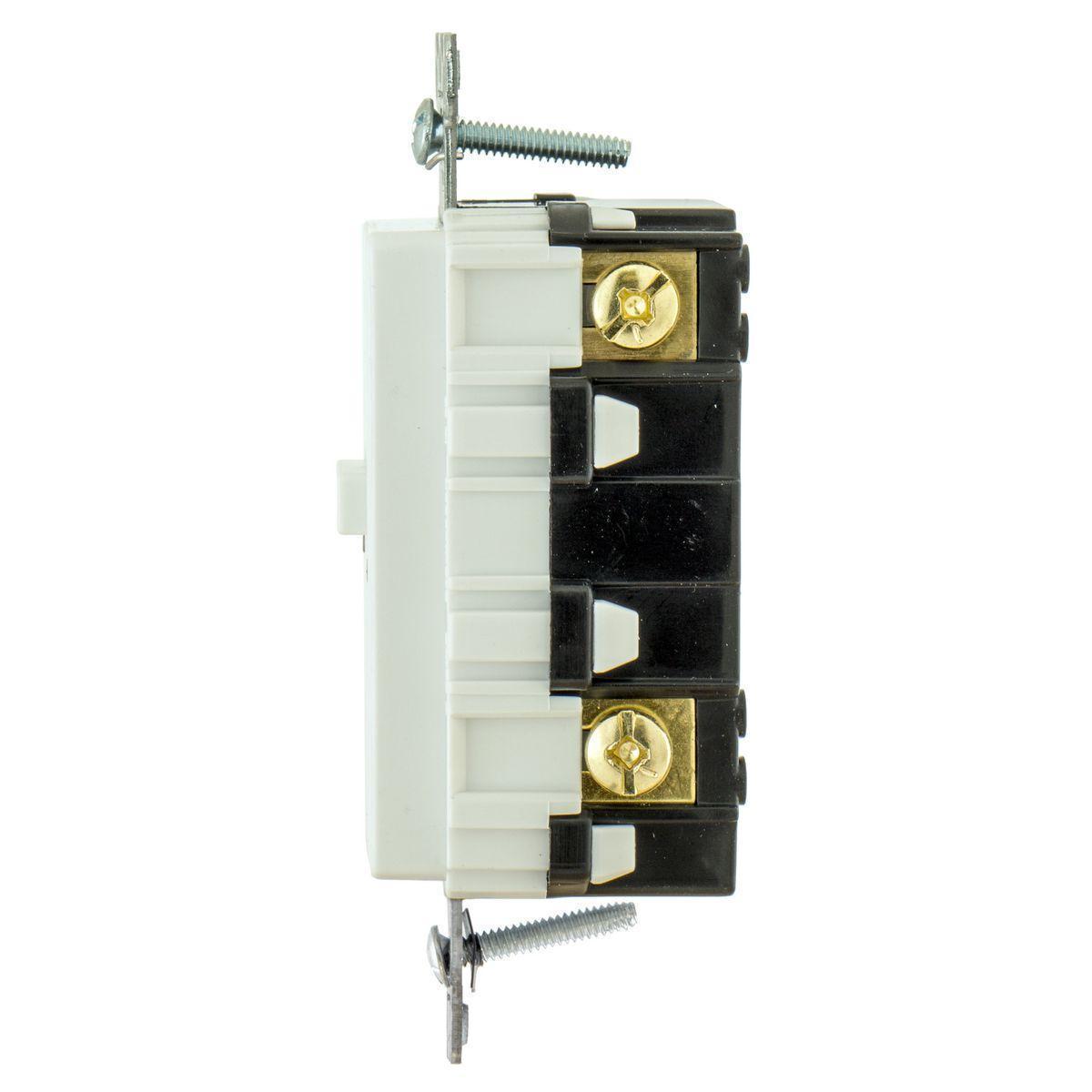

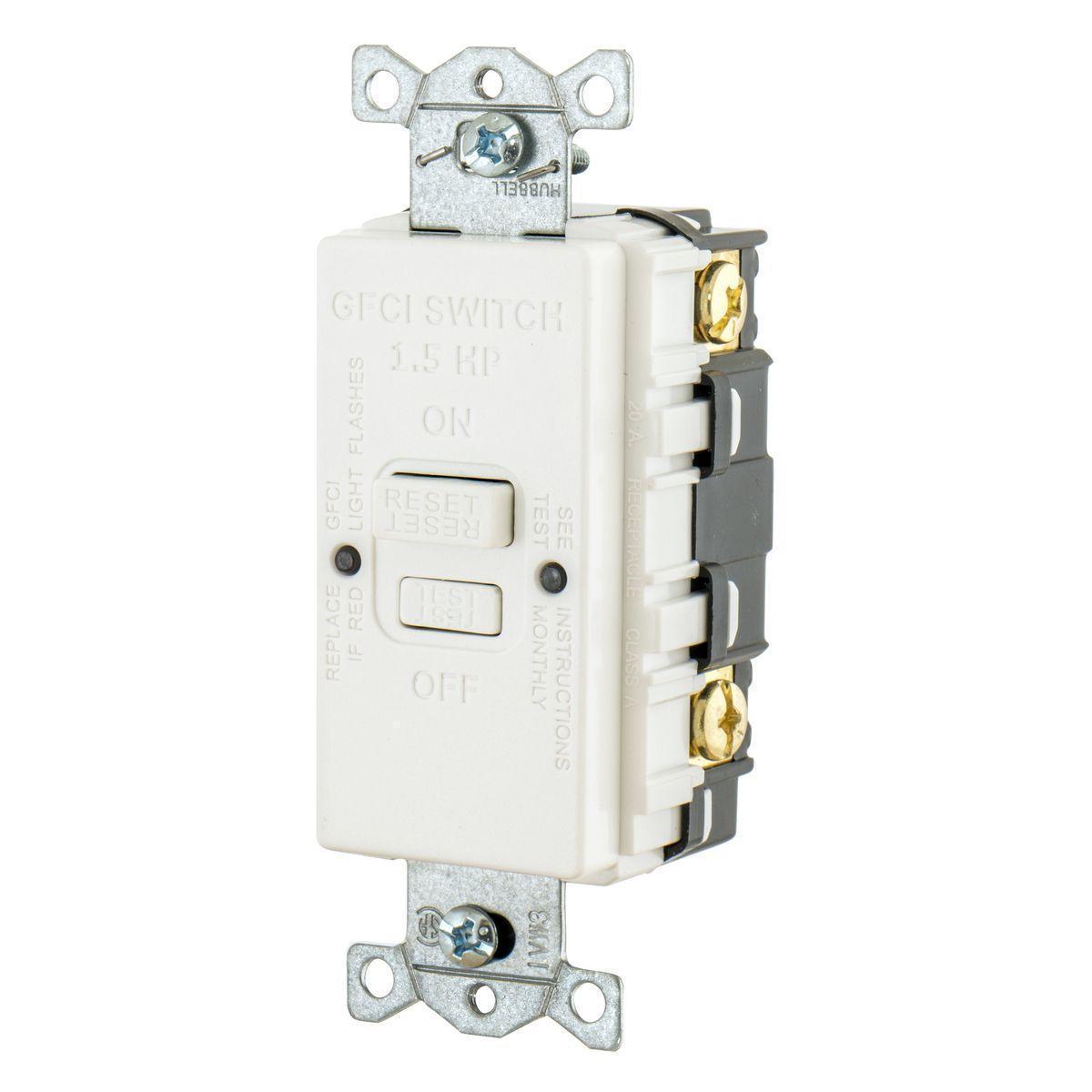

GFBFHP20W HUBBELL 20A 125V BLANK FACE GFCI HP WHITE

Mouse over image to zoom, click to enlarge

  • GFBFHP20W HUBBELL 20A 125V BLANK FACE GFCI HP WHITE
  • GFBFHP20W HUBBELL 20A 125V BLANK FACE GFCI HP WHITE
  • GFBFHP20W HUBBELL 20A 125V BLANK FACE GFCI HP WHITE
  • GFBFHP20W HUBBELL 20A 125V BLANK FACE GFCI HP WHITE
  • GFBFHP20W HUBBELL 20A 125V BLANK FACE GFCI HP WHITE

Description: Hubbell Wiring Device-Kellems AUTOGUARD® GFCI Receptacle, 1-Phase Blank Face Insulated Standard, 125 V AC, 20 A, 1-1/2 hp, 60 Hz, 3 Wires, -40 to 75 deg C, Screw Terminal, Composite, White, 1.75 in W x 1.47 in D

Manufacturer PN: GFBFHP20W

UPC:  88377845007

Kendall Electric Inc PN: 3803519

Invoice Description:

GFBFHP20W HUBBELL 20A 125V BLANK FACE GFCI HP WHITE


SPEC SHEET

▸ See All in Blank Face GFCI Receptacles


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems AUTOGUARD® GFBFHP20W 1-Phase Blank Face Insulated Standard GFCI Receptacle, 125 V AC, 20 A, 3 Wires, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell® AUTOGUARD® GFR products continually test and monitor for "people protection capability" automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. Also, visual indicators are clearly provided on the device face representing "power status", "trip condition", "ground fault condition" and "end of life status".
Hubbell Wiring Device-Kellems AUTOGUARD® GFCI Receptacle, 1-Phase Blank Face Insulated Standard, 125 V AC, 20 A, 1-1/2 hp, 60 Hz, 3 Wires, -40 to 75 deg C, Screw Terminal, Composite, White, 1.75 in W x 1.47 in D

Specifications

 Amperage Rating 20 A
 Application Dry Location and Indoor Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Dimensions 1.75 in W x 1.47 in D
 Frequency Rating 60 Hz
 Horsepower 1-1/2 hp
 Manufacturer Part Number GFBFHP20W
 Material Composite
 Number of Wires 3
 PART NUMBER KEYWORDS GFBFHP20W ; 13856287 ; 883778450075 ; 88377845007 ; 00883778450075
 Standards/Approvals ANSI 73|UL 498/508/943|UL File No. E41978|CSA Certified|NEMA WD6|NEC|CEC Approved
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 1-Phase Blank Face Insulated Standard
 Voltage Rating 125 V AC

Features

▪ If wired incorrectly there will be no power to the face or to downstream receptacles for added safety
▪ (2) LED indicators provide immediate status of power, trip condition and ability to provide GFCI protection
▪ In addition to providing Class A GFCI protection, the HP series includes a 1.5 HP rating for motor control switching
