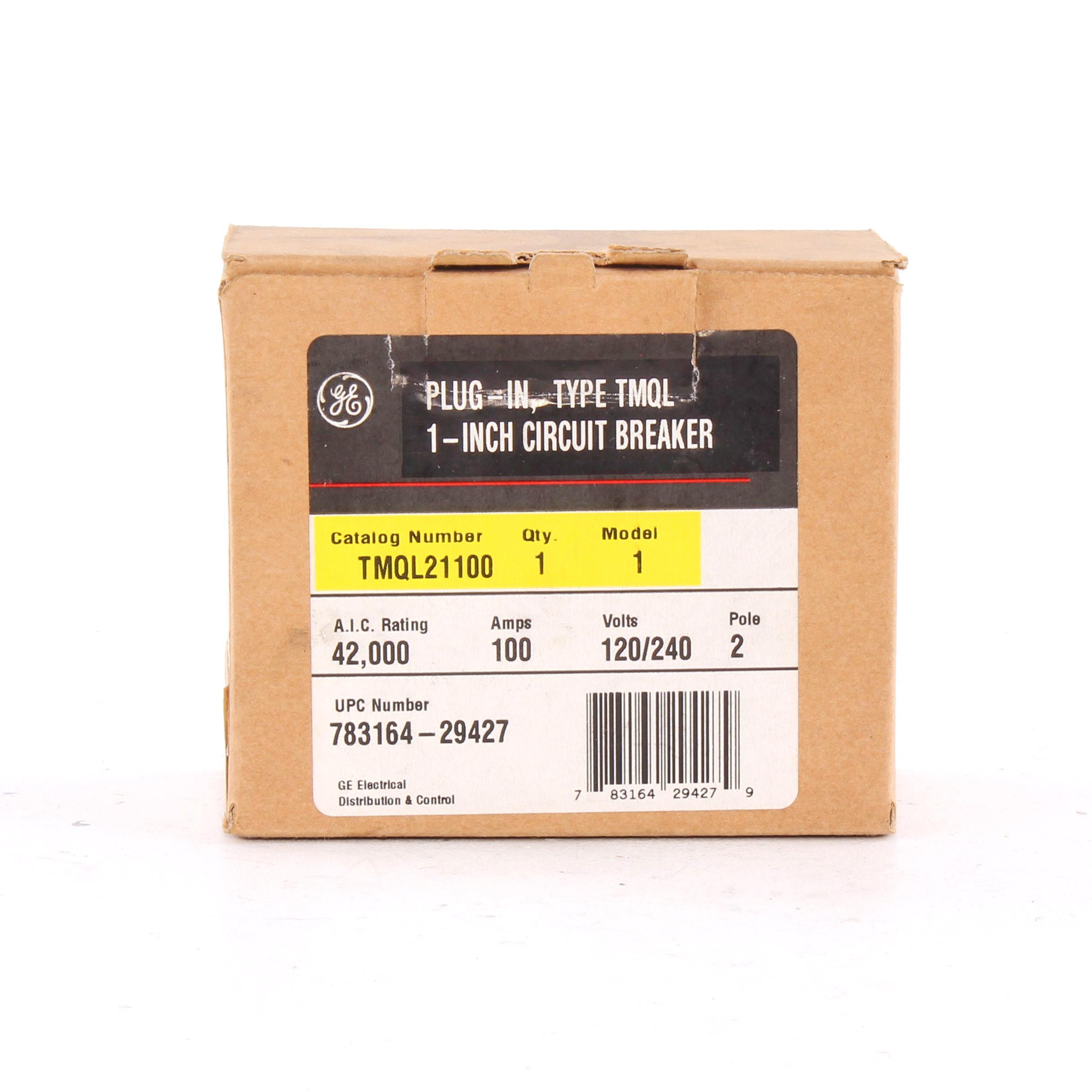

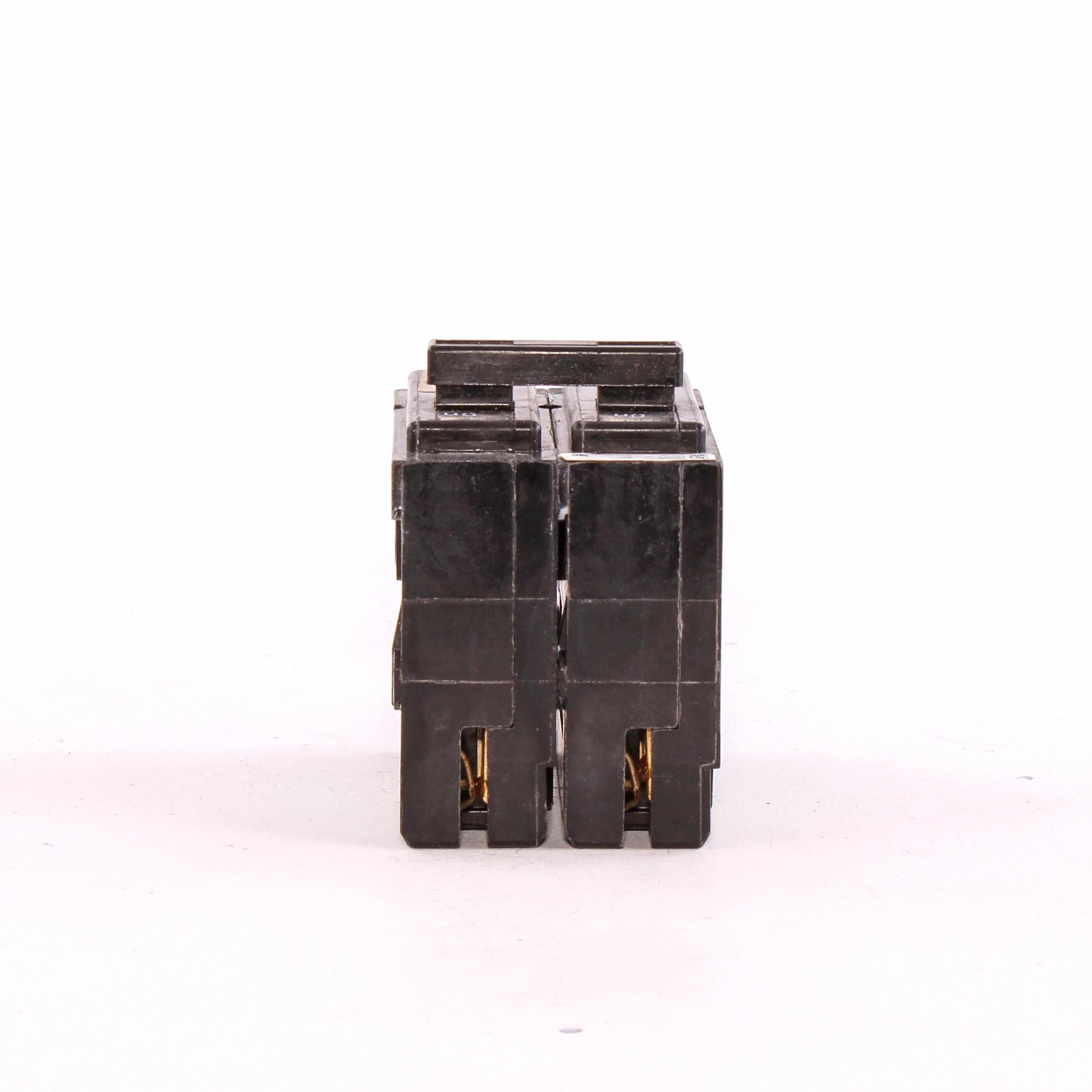

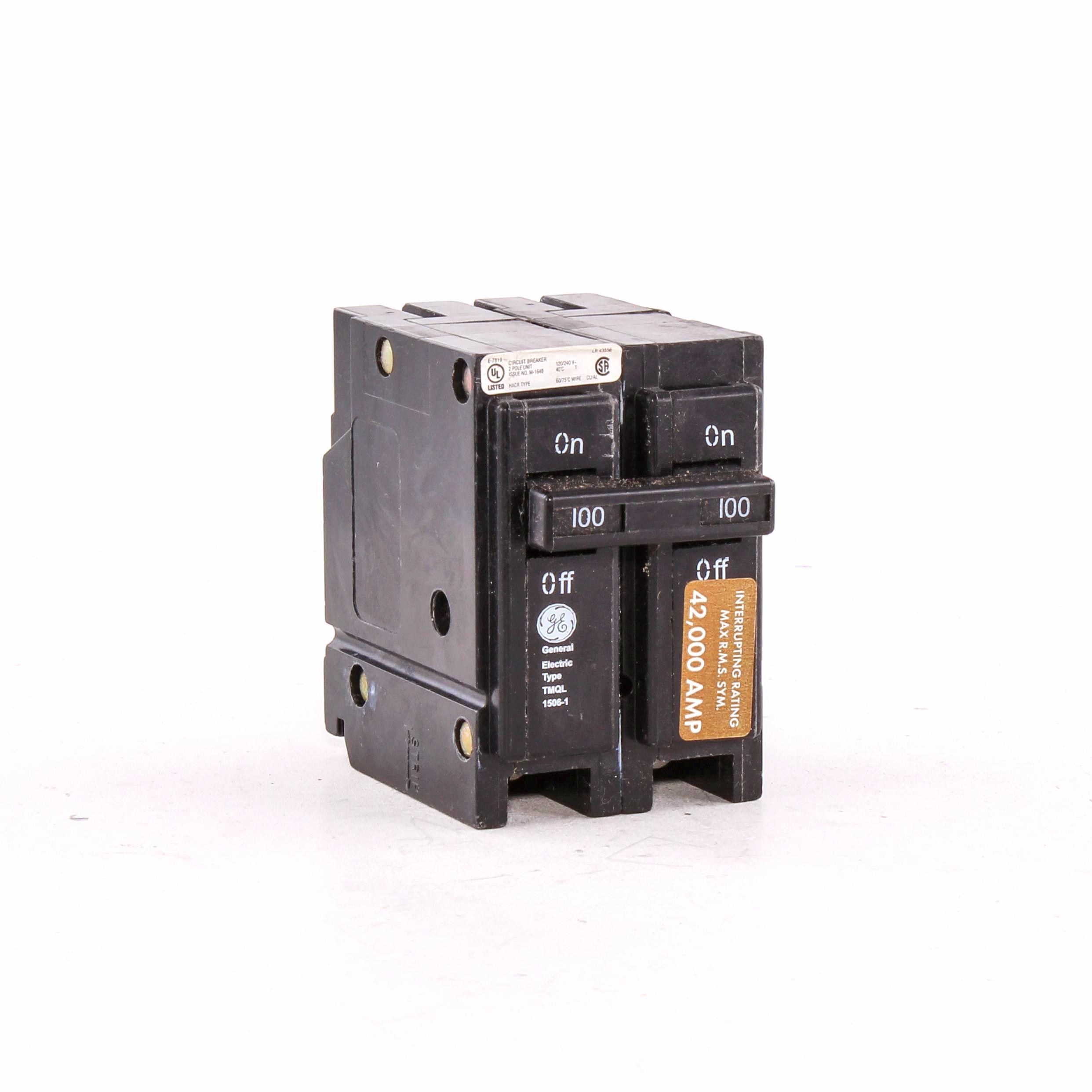

GENERAL ELECTRIC TMQL21100 2POLE 120/240V 42K AIC 100 AMP

Mouse over image to zoom, click to enlarge

  • GENERAL ELECTRIC TMQL21100 2POLE 120/240V 42K AIC 100 AMP
  • GENERAL ELECTRIC TMQL21100 2POLE 120/240V 42K AIC 100 AMP
  • GENERAL ELECTRIC TMQL21100 2POLE 120/240V 42K AIC 100 AMP
  • GENERAL ELECTRIC TMQL21100 2POLE 120/240V 42K AIC 100 AMP

Description: GE Tenant Main Circuit Breaker, 120/240 V AC, 100 A, 60 Hz, 42 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 Phase, Load Side Lug, 8 to 1, 8 to 1/0 AWG Wire, Plug-In Mount, 40 deg C, 2.93 in H x 2 in W

Manufacturer PN: TMQL21100

UPC:  78316429427

Kendall Electric Inc PN: 4364431

Invoice Description:

GENERAL ELECTRIC TMQL21100 2POLE 120/240V 42K AIC 100 AMP


SPEC SHEET

How Can We Make This Page Better?

GE TMQL21100 Tenant Main Circuit Breaker, 120/240 V AC, 100 A, 42 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

GE main Tenant breakers are used in Multi-Family applications in conjunction with the Meter Mod III main modules and meter stacks. These breakers are available in 2 and 3-pole configurations up to 100 kA at 240 VAC.
GE Tenant Main Circuit Breaker, 120/240 V AC, 100 A, 60 Hz, 42 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 Phase, Load Side Lug, 8 to 1, 8 to 1/0 AWG Wire, Plug-In Mount, 40 deg C, 2.93 in H x 2 in W

Specifications

 Amperage Rating 100 A
 Application For residential, light commercial group metering and 125 A sockets
 Brand Name GE
 Connection Type Load Side Lug
 Dimensions 2.93 in H x 2 in W
 Frequency Rating 60 Hz
 Manufacturer Part Number TMQL21100
 Mounting Type Plug-In
 Number of Poles 2
 PART NUMBER KEYWORDS TMQL21100 ; 7715303 ; 783164294279 ; 78316429427 ; 00783164294279
 Phase 1
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant, UL 489, CSA 22.2 No. 5
 Temperature Rating 40 deg C
 Voltage Rating 120/240 V AC

Features

▪ 8 to 1 AWG (Cu), 8 to 1/0 AWG (Al) wire range
