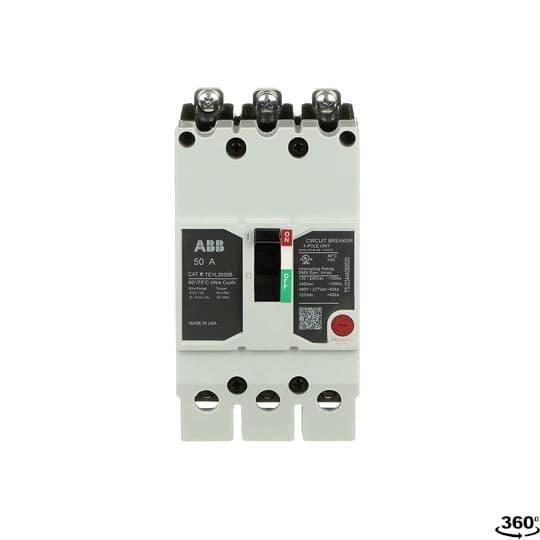

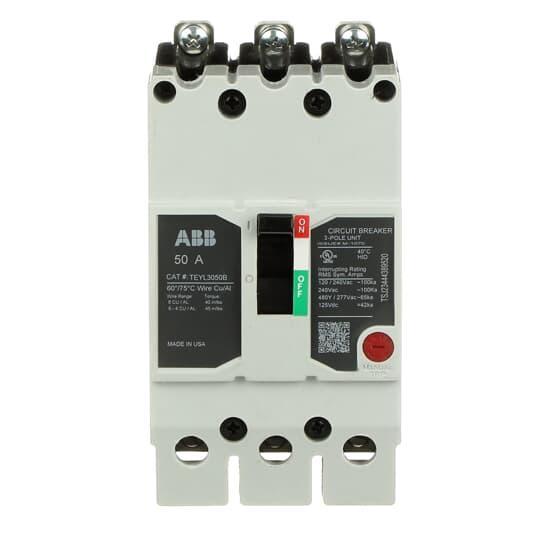

  • GENERAL ELECTRIC TEYL3050B 50A 3POLE 65KA 480/277 CKT BKR
  • GENERAL ELECTRIC TEYL3050B 50A 3POLE 65KA 480/277 CKT BKR
  • GENERAL ELECTRIC TEYL3050B 50A 3POLE 65KA 480/277 CKT BKR
  • GENERAL ELECTRIC TEYL3050B 50A 3POLE 65KA 480/277 CKT BKR
  • GENERAL ELECTRIC TEYL3050B 50A 3POLE 65KA 480/277 CKT BKR
  • GENERAL ELECTRIC TEYL3050B 50A 3POLE 65KA 480/277 CKT BKR

Description: GE Lighting Panel Circuit Breaker, Type TEY Compact, Series: TEYL, 120/240/277/480 VAC, 250 VDC, 50 A, 50/60 Hz Frequency, 35/42/65/100 kA Interrupt, TEYL Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 10 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Manufacturer PN: TEYL3050B

UPC:  78316446258

Kendall Electric Inc PN: 4364492

Invoice Description:

GENERAL ELECTRIC TEYL3050B 50A 3POLE 65KA 480/277 CKT BKR


SPEC SHEET

How Can We Make This Page Better?

GE TEYL3050B Type TEY Compact Lighting Panel Circuit Breaker, 120/240/277/480 VAC, 250 VDC, 50 A, 35/42/65/100 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYD breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.
GE Lighting Panel Circuit Breaker, Type TEY Compact, Series: TEYL, 120/240/277/480 VAC, 250 VDC, 50 A, 50/60 Hz Frequency, 35/42/65/100 kA Interrupt, TEYL Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 10 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Specifications

 Actuator Type Pivot/Toggle Handle
 Amperage Rating 50 A
 Application Health Care Facilities, Elevators, Emergency Systems and Legally Required Standby Systems Such As Generators and Many Other Critical Load Scenarios, Industries, Electrical Distribution and Control Applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 3 in W x 3-1/16 in D x 5-1/4 in H
 Frame TEYL
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYL3050B
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYL3050B ; 11763417 ; 783164462586 ; 78316446258 ; 00783164462586
 Phase 3
 Series TEYL
 Standards/Approvals cUL Listed File No. E11592|UL Listed File No. E11592
 Temperature Rating 40 deg C
 Type Type TEY Compact
 Voltage Rating 120/240/277/480 V AC/250 V DC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 100 kA at 120/240 VAC, 100 kA at 240 VAC, 65 kA at 480Y/277 VAC, 42 kA at 125 VDC, 35 kA at 250 VDC interrupt rating
