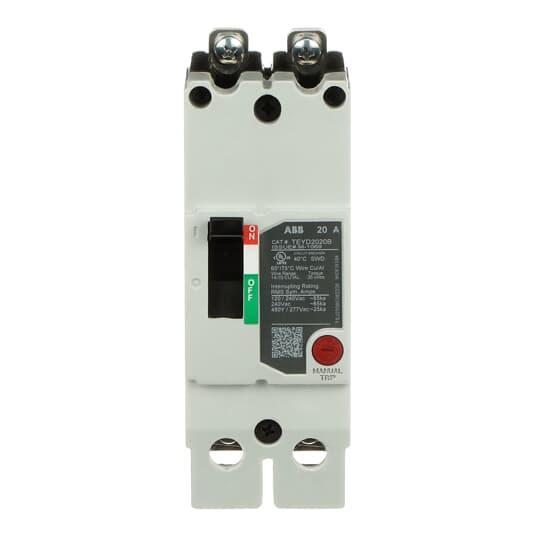

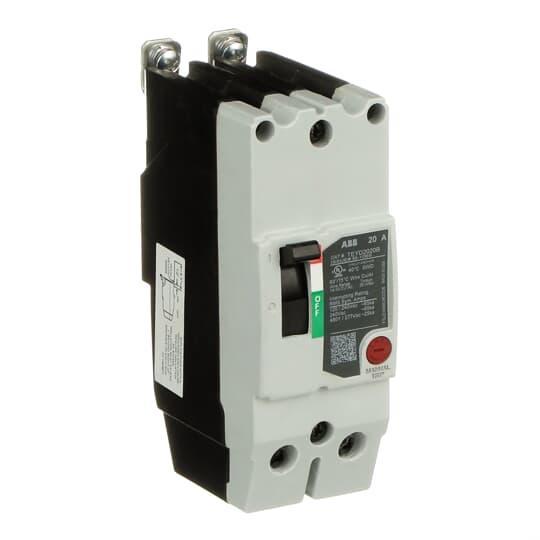

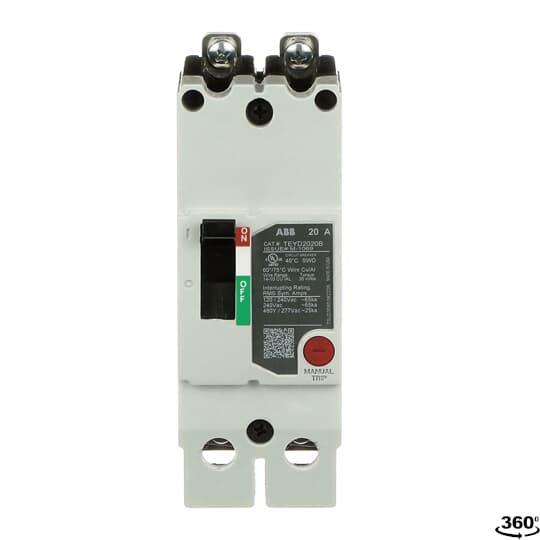

  • GENERAL ELECTRIC TEYD2020B 20A 2POLE 25KA 480/277 CKT BKR
  • GENERAL ELECTRIC TEYD2020B 20A 2POLE 25KA 480/277 CKT BKR
  • GENERAL ELECTRIC TEYD2020B 20A 2POLE 25KA 480/277 CKT BKR
  • GENERAL ELECTRIC TEYD2020B 20A 2POLE 25KA 480/277 CKT BKR
  • GENERAL ELECTRIC TEYD2020B 20A 2POLE 25KA 480/277 CKT BKR

Description: GE Lighting Panel Circuit Breaker, Compact, 120/240/277/480 VAC, 250 VDC, 20 A, 50/60 Hz Frequency, 65/25 kA Interrupt, TEYD Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Handle Actuator, Saddle Clamp Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 2 in W x 3-1/16 in D Dimensions, Plastic

Manufacturer PN: TEYD2020B

UPC:  78316446157

Kendall Electric Inc PN: 4364477

Invoice Description:

GENERAL ELECTRIC TEYD2020B 20A 2POLE 25KA 480/277 CKT BKR


SPEC SHEET

How Can We Make This Page Better?

GE TEYD2020B Compact Lighting Panel Circuit Breaker, 120/240/277/480 VAC, 250 VDC, 20 A, 65/25 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYH breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.
GE Lighting Panel Circuit Breaker, Compact, 120/240/277/480 VAC, 250 VDC, 20 A, 50/60 Hz Frequency, 65/25 kA Interrupt, TEYD Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Handle Actuator, Saddle Clamp Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 2 in W x 3-1/16 in D Dimensions, Plastic

Specifications

 Actuator Type Handle
 Amperage Rating 20 A
 Application For health care facilities, elevators, emergency systems, legally required standby systems such as generators, many other critical load scenarios, electrical distribution and control applications
 Brand Name GE
 Connection Type Saddle Clamp
 Dimensions 5-1/4 in H x 2 in W x 3-1/16 in D
 Frame TEYD
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYD2020B
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 2
 PART NUMBER KEYWORDS TEYD2020B ; 11763316 ; 783164461572 ; 78316446157 ; 00783164461572
 Phase 1
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL/cUL File No. E11592
 Temperature Rating 40 deg C
 Type Compact
 Voltage Rating 120/240/277/480 V AC/250 V DC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 65 kA at 120/240 VAC, 65 kA at 240 VAC, 25 kA at 480Y/277 VAC interrupt rating
