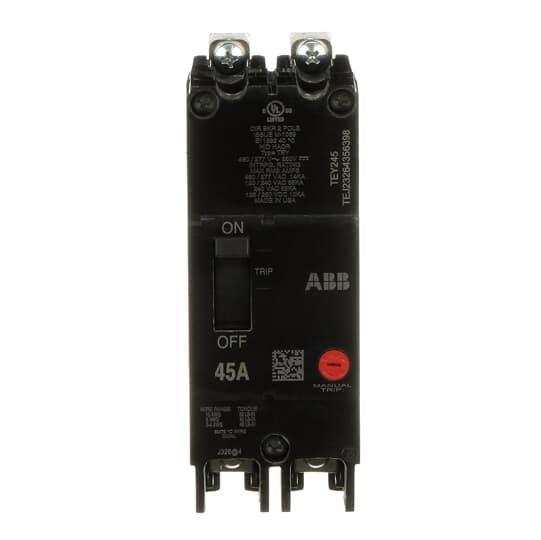

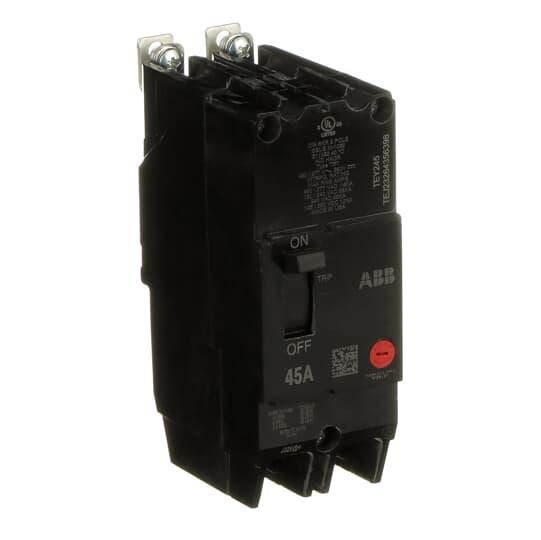

  • GENERAL ELECTRIC TEY245 MCCB 2P 45A BOLT-ON
  • GENERAL ELECTRIC TEY245 MCCB 2P 45A BOLT-ON
  • GENERAL ELECTRIC TEY245 MCCB 2P 45A BOLT-ON
  • GENERAL ELECTRIC TEY245 MCCB 2P 45A BOLT-ON

Description: GE Lighting Panel Circuit Breaker, Compact, 120/240/277 V AC, 45 A, 50/60 Hz Frequency, 65/14 kA Interrupt, TEY Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Handle Actuator, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 2 in W x 3-1/16 in D Dimensions, Plastic

Manufacturer PN: TEY245

UPC:  78316440335

Kendall Electric Inc PN: 4364468

Invoice Description:

GENERAL ELECTRIC TEY245 MCCB 2P 45A BOLT-ON


SPEC SHEET

How Can We Make This Page Better?

GE TEY245 Compact Lighting Panel Circuit Breaker, 120/240/277 V AC, 45 A, 65/14 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.
GE Lighting Panel Circuit Breaker, Compact, 120/240/277 V AC, 45 A, 50/60 Hz Frequency, 65/14 kA Interrupt, TEY Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Handle Actuator, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 2 in W x 3-1/16 in D Dimensions, Plastic

Specifications

 Actuator Type Handle
 Amperage Rating 45 A
 Application Switchboards, Motor Control Centers, Lighting, Power and Customized Control Panelboards Applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 5-1/4 in H x 2 in W x 3-1/16 in D
 Frame TEY
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEY245
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 2
 PART NUMBER KEYWORDS TEY245 ; 7747614 ; 783164403350 ; 78316440335 ; 00783164403350
 Phase 1
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E11592|CSA File No. LR57114|HACR Rated
 Temperature Rating 40 deg C
 Type Compact
 Voltage Rating 120/240/277 V AC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 14 kA at 277 VAC, 65 kA at 120 VAC, 65 kA at 120/240 VAC, 65 kA at 240 VAC interrupt rating
