Schneider Electric
  • GD4060LK SQD KITLUGS FOR 400+600A
  • GD4060LK SQD KITLUGS FOR 400+600A
  • GD4060LK SQD KITLUGS FOR 400+600A
  • GD4060LK SQD KITLUGS FOR 400+600A
  • GD4060LK SQD KITLUGS FOR 400+600A

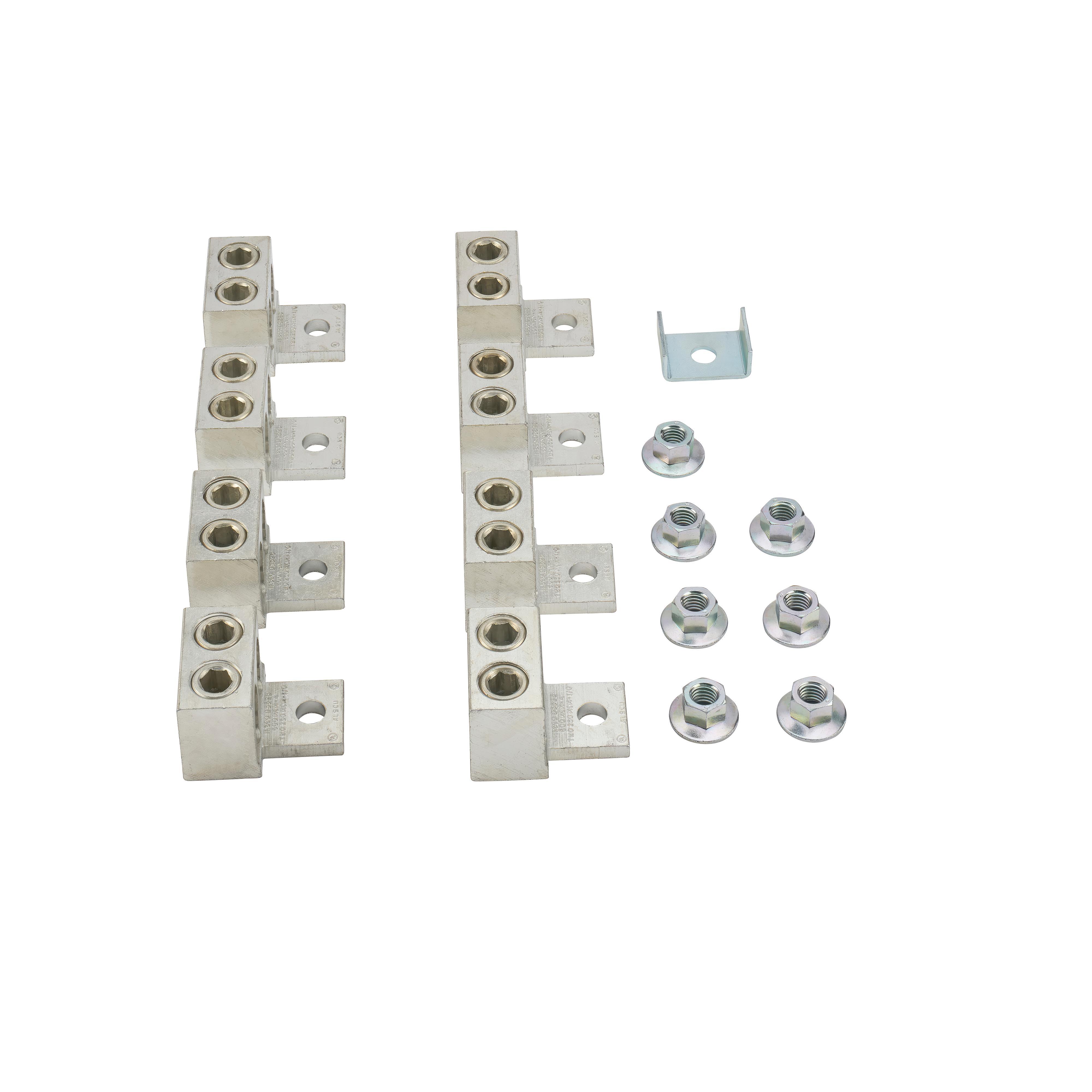

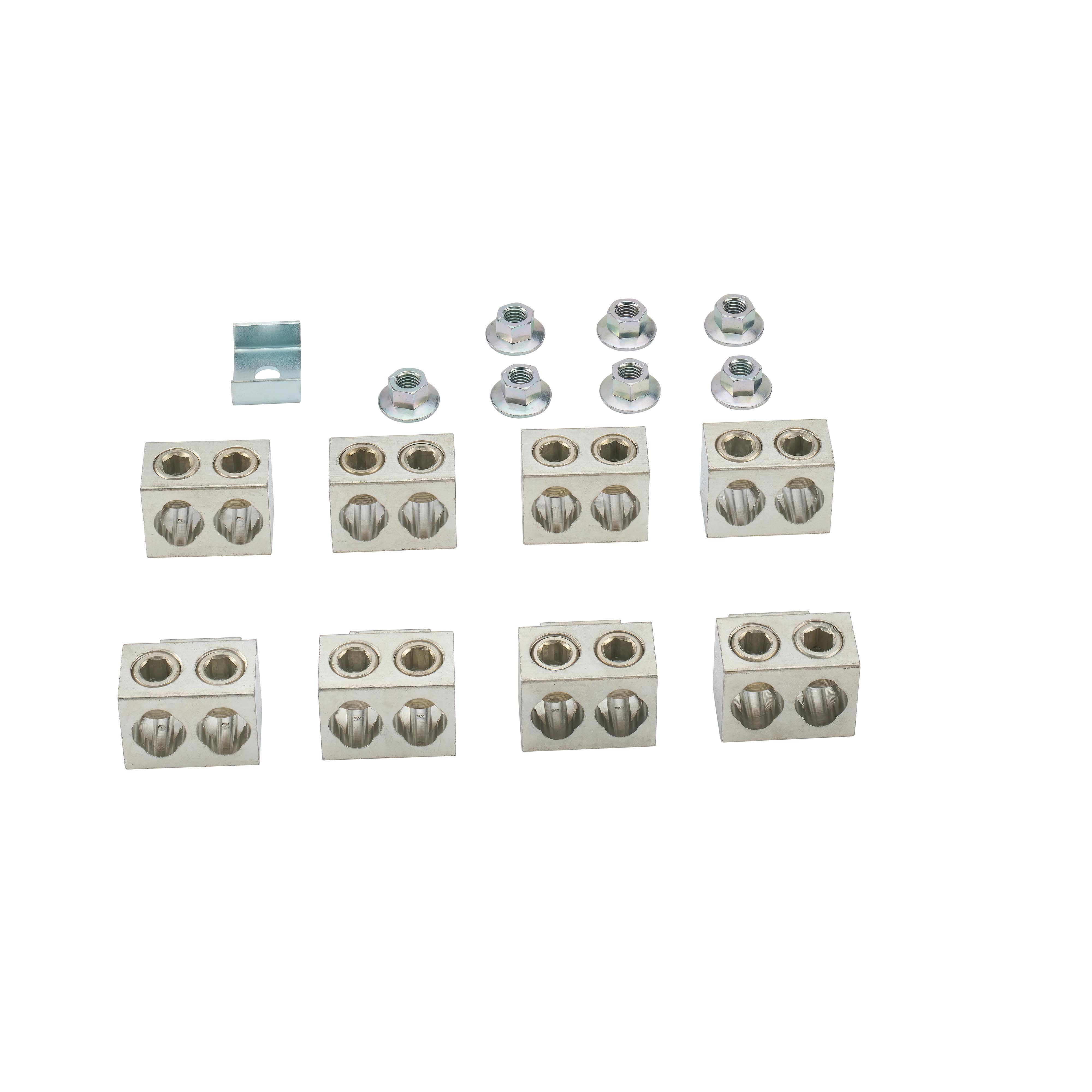

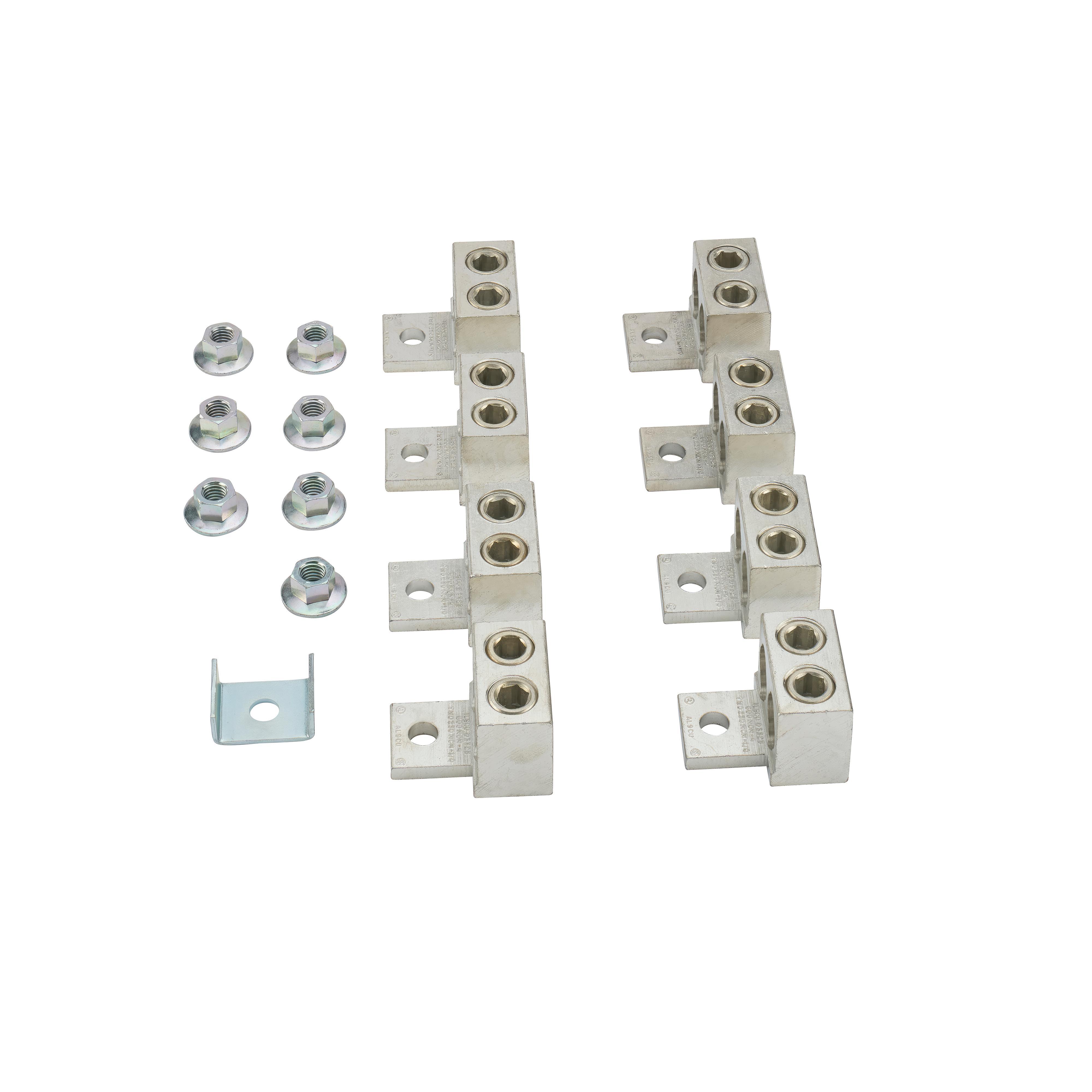

Description: Square D™ Lug Kit, Field Installed, 400 to 600 A Switch, 1/0 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Wire, Aluminum/Copper Wire, For Use With: E3 Series General Duty Safety Switch

Manufacturer PN: GD4060LK

UPC:  78590157000

Kendall Electric Inc PN: 3999559

Invoice Description:

GD4060LK SQD KITLUGS FOR 400+600A


SPEC SHEET

How Can We Make This Page Better?

Square D™ GD4060LK Field Installed Lug Kit, 400 to 600 A, 1/0 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Wire, Aluminum/Copper Wire

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The lug kit provides the terminals where incoming and outgoing wires are securely connected to the safety switch. These lugs are designed to handle specific wire sizes and types (copper or aluminum), ensuring proper conductivity and mechanical strength. They ensure that wires are tightly secured using appropriate torque settings, reducing the risk of loose connections that could lead to overheating or electrical faults. This lug accepts copper conductor ranging 2-1/0-600 kcmil or 4-1/0-250 kcmil and suitable for 400-600A.
Square D™ Lug Kit, Field Installed, 400 to 600 A Switch, 1/0 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Wire, Aluminum/Copper Wire, For Use With: E3 Series General Duty Safety Switch

Specifications

 Brand Name Square D
 Includes (3) Line Lugs, (3) Load Lugs and (2) Neutral Lugs
 Manufacturer Part Number GD4060LK
 PART NUMBER KEYWORDS GD4060LK ; 8099108 ; 785901570004 ; 78590157000 ; 00785901570004 ; 0785901570004
 Standards/Approvals RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With E3 Series General Duty Safety Switch
 Switch Amperage Rating 400 to 600 A
 Type Field Installed
 Wire Material Aluminum/Copper

Features

▪ Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
▪ Designed to satisfy individual requirements for all customers
▪ Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
▪ All feature a quick-make, quick-break operating mechanism, a dual cover interlock
▪ Designed to have a mechanical endurance three times greater than NEMA standards
