Eaton
GBB-9-R BUS GBB 9A FUSE FA 5-IN BOX -R 05171254998 (5)

Mouse over image to zoom, click to enlarge

  • GBB-9-R BUS GBB 9A FUSE FA 5-IN BOX -R 05171254998 (5)
  • GBB-9-R BUS GBB 9A FUSE FA 5-IN BOX -R 05171254998 (5)
  • GBB-9-R BUS GBB 9A FUSE FA 5-IN BOX -R 05171254998 (5)

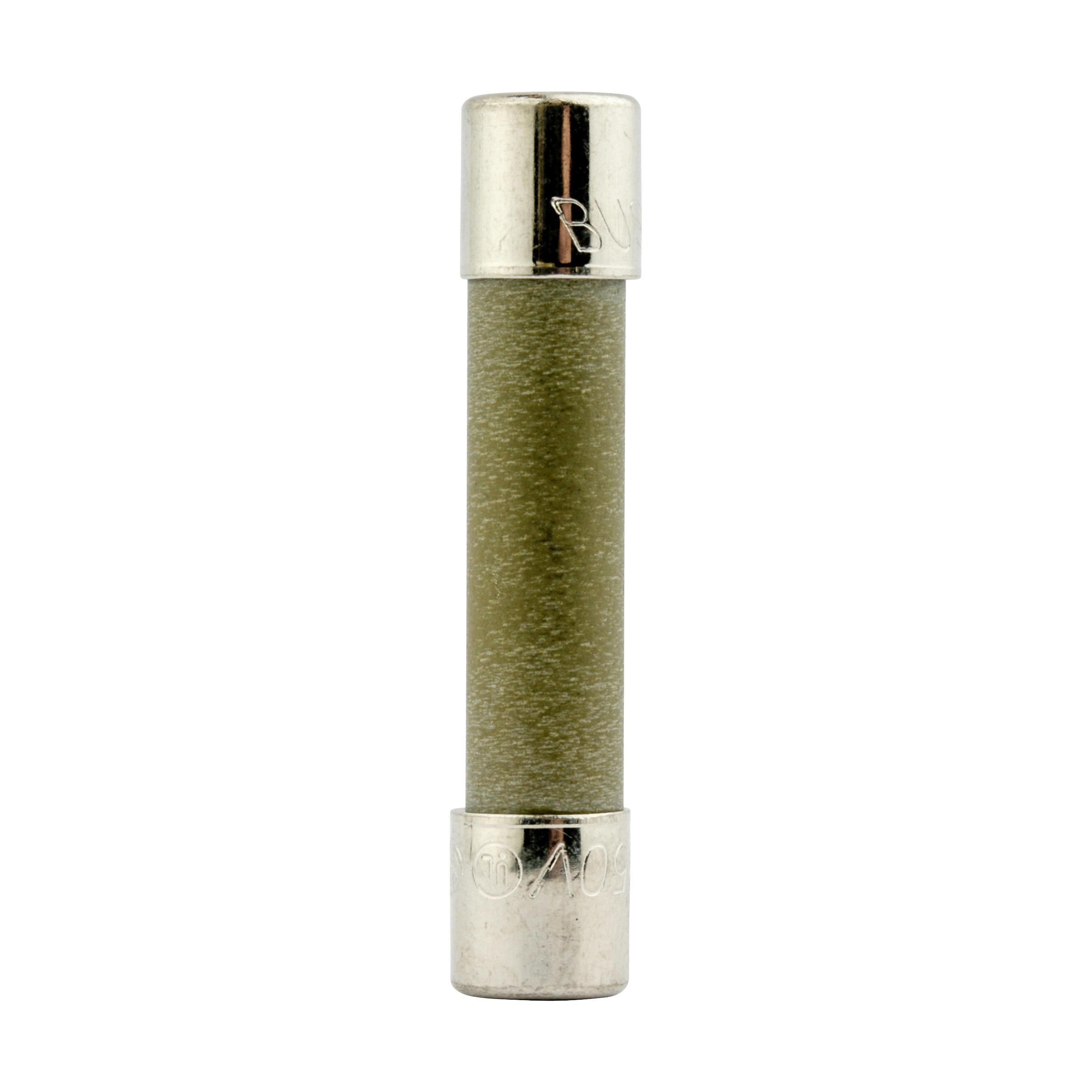

Description: Bussmann Midget Fuse, Electronic, Indicating/Non-Indicating: Non-Indicating, 9 A, 250 V AC, 200 A Interrupt, 2 min at 150% Response, Ceramic Cartridge with Nickel Plated Brass End Cap, 1/4 in Dia Body Size

Manufacturer PN: GBB-9-R

UPC:  05171254998

Kendall Electric Inc PN: 2850684

Invoice Description:

GBB-9-R BUS GBB 9A FUSE FA 5-IN BOX -R 05171254998 (5)


SPEC SHEET

How Can We Make This Page Better?

Bussmann GBB-9-R Electronic Midget Fuse, 9 A, 250 V AC, 200 A Interrupt

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Very fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of sensitive electronic circuits.  Install into a Bussmann Series fuse holder, block, or fuse clip or purchase with available axial leads for thru-hole installation. Eaton's GBB very fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of sensitive electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Bussmann Midget Fuse, Electronic, Indicating/Non-Indicating: Non-Indicating, 9 A, 250 V AC, 200 A Interrupt, 2 min at 150% Response, Ceramic Cartridge with Nickel Plated Brass End Cap, 1/4 in Dia Body Size

Specifications

 Amperage Rating 9 A
 Application Electronic Circuit Applications
 Body Size 1/4 in Dia
 Brand Name Bussmann
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number GBB-9-R
 Material Ceramic Cartridge with Nickel Plated Brass End Cap
 PART NUMBER KEYWORDS GBB-9-R ; GBB9R ; 9383545 ; 051712549981 ; 51712549981 ; 05171254998 ; 00051712549981
 Response Time 2 min at 150%
 Standards/Approvals CE Certified
 Type Electronic
 Video Links
 Voltage Rating 250 V AC

Features

▪ Package Type: Standard
▪ Resistance: Typical DC cold: 0.0107 ohms
▪ Connection Type: Ferrule End x Ferrule End
▪ Width: 0.25 in
▪ Weight: 0.007 lbs
▪ Length: 0.25 in
▪ Height: 1.25 in
▪ Voltage Drop: Typical: 0.1218 mV
▪ Indicator: Non-Indicating

Resources

 Catalog Page
 Product Data Sheet
