Leviton

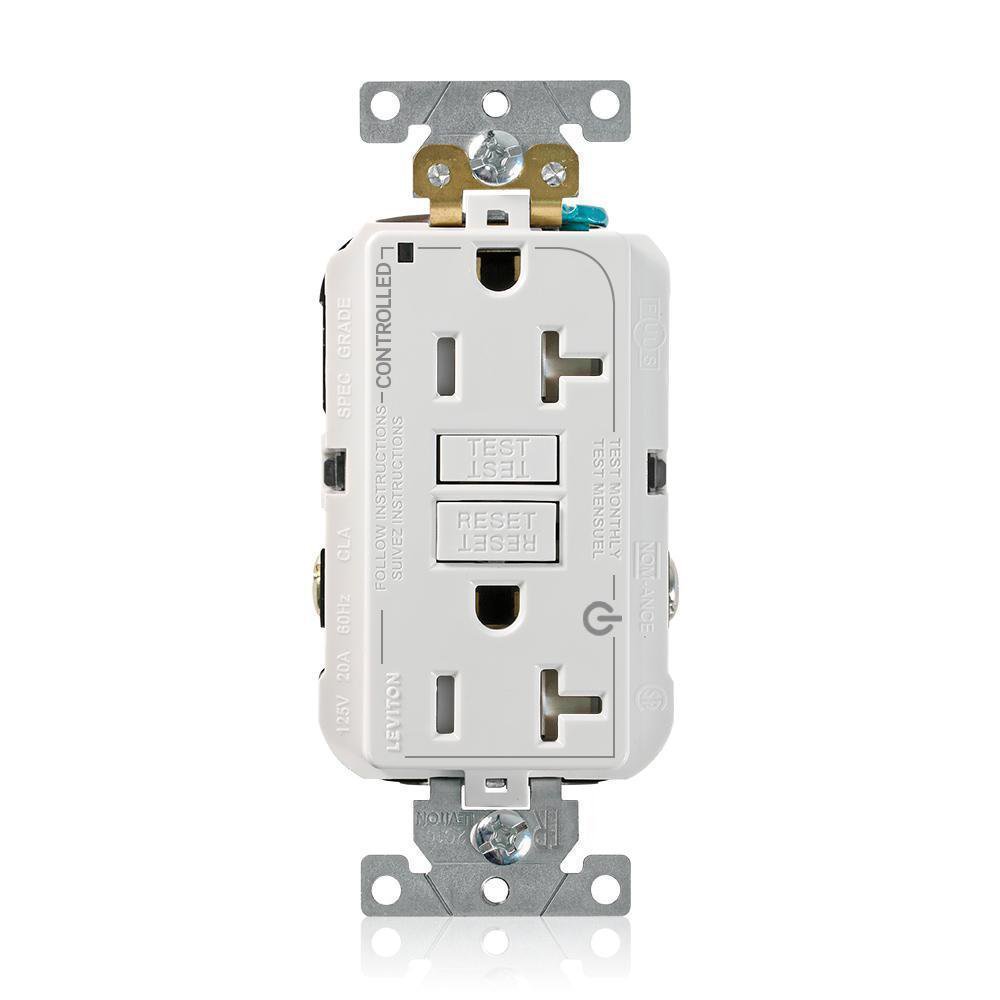

G5362-2TW LEVITON 20A 2/PLUG MARKED CONTROLLED GFCI WH

Mouse over image to zoom, click to enlarge

Description: Leviton® SmartlockPro® GFCI Duplex Receptacle, Dual Mark Controlled Extra Heavy Duty Self-Grounding Self-Test Tamper-Resistant Weather-Resistant, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, White, 4.05 in L x 1.74 in W x 1.36 in D Dimensions

Manufacturer PN: G5362-2TW

UPC:  07847743364

Kendall Electric Inc PN: 4596671

Invoice Description:

G5362-2TW LEVITON 20A 2/PLUG MARKED CONTROLLED GFCI WH


SPEC SHEET

▸ See All in GFCI Receptacles


How Can We Make This Page Better?

Leviton® SmartlockPro® G5362-2TW Dual Mark Controlled Extra Heavy Duty Self-Grounding Self-Test Tamper-Resistant Weather-Resistant GFCI Duplex Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White

Log In for Pricing and Availability




Description

Peace of mind, all the time. The SmartlockPro® self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton® patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro self-test GFCI is the smart choice in ground fault circuit interrupter protection.
Leviton® SmartlockPro® GFCI Duplex Receptacle, Dual Mark Controlled Extra Heavy Duty Self-Grounding Self-Test Tamper-Resistant Weather-Resistant, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, White, 4.05 in L x 1.74 in W x 1.36 in D Dimensions

Specifications

 Amperage Rating 20 A
 Application Educational Facilities, Multiple Dwelling Units, Hospitality Venues and Commercial Office Spaces Applications
 Brand Name Leviton®
 Color White
 Dimensions 4.05 in L x 1.74 in W x 1.36 in D
 Grade Industrial Specification
 Horsepower 1 hp
 Manufacturer Part Number G5362-2TW
 Material Polycarbonate
 NEMA Rating NEMA 5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS G5362-2TW ; G53622TW ; 14862914 ; 078477433645 ; 78477433645 ; 07847743364 ; 00078477433645
 Standards/Approvals ANSI C-73|UL 943|UL 498|CSA C22.2 No. 42|CSA C22.2 No. 144|Federal Specification WC-596|NOM-ANCE Certified|NEMA WD-1|NEMA WD-6|UL 94 V-0 Flammability Rating|NEC Article 406.3
 Temperature Rating -35 to 66 deg C
 Terminal Type Back/Side Wire
 Type Dual Mark Controlled Extra Heavy Duty Self-Grounding Self-Test Tamper-Resistant Weather-Resistant
 Voltage Rating 125 V AC

Features

▪ Designed for wet and damp locations to meet the requirements of NEC® Section 406.8
▪ Nickel plated steel strap and stainless steel screws
▪ Conformal coated PC board to protect critical components from moisture
▪ Cold impact-resistance
▪ UV stabilized plastics
