Eaton

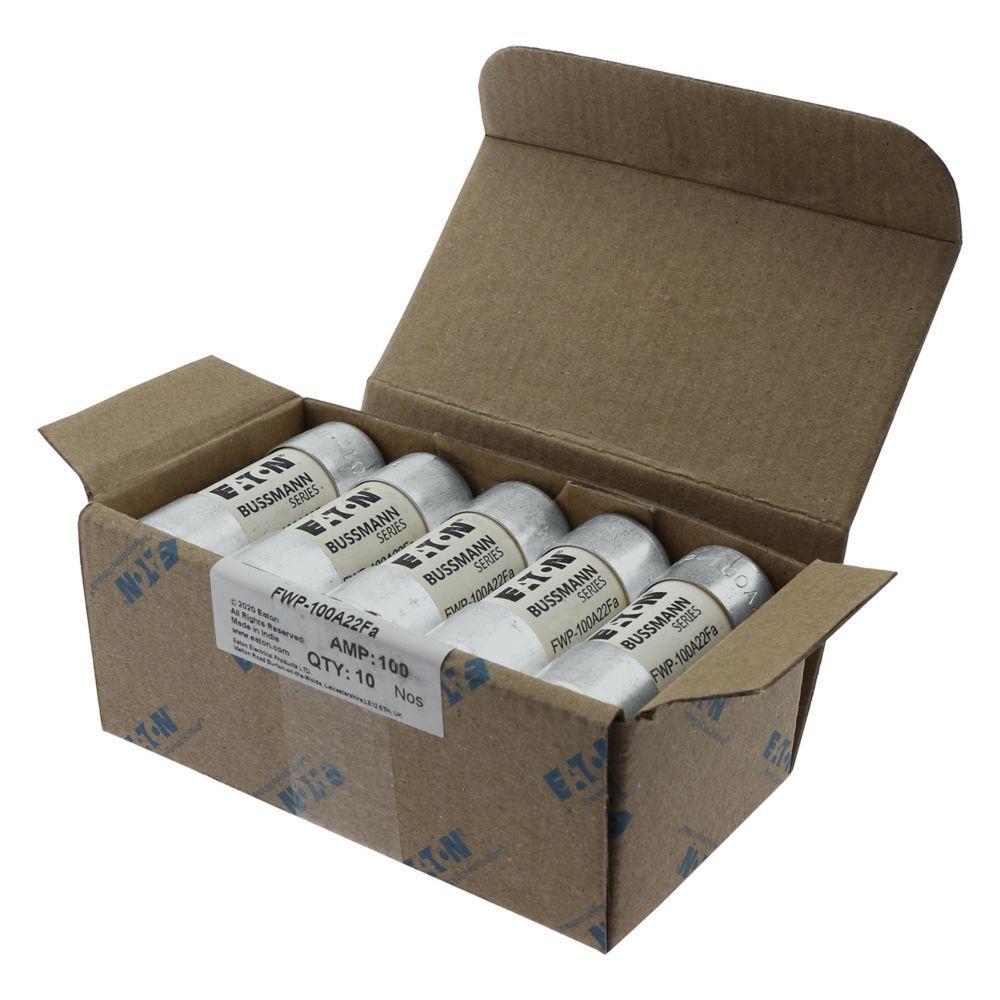

  • FWP-100A22F BUS FERRULE SEMI-COND.FUSE (1)
  • FWP-100A22F BUS FERRULE SEMI-COND.FUSE (1)
  • FWP-100A22F BUS FERRULE SEMI-COND.FUSE (1)
  • FWP-100A22F BUS FERRULE SEMI-COND.FUSE (1)
  • FWP-100A22F BUS FERRULE SEMI-COND.FUSE (1)

Description: Bussmann High Speed Fuse, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 100 A, 700 VAC, 50 kA Interrupt, Class: aR, Ferrule End Terminal, Holder Mount, Cartridge Body, Single Element, Ceramic, 0.875 in Dia x 2.283 in L Body Size

Manufacturer PN: FWP-100A22F

UPC:  05171237088

Kendall Electric Inc PN: 2107575

Invoice Description:

FWP-100A22F BUS FERRULE SEMI-COND.FUSE (1)


SPEC SHEET

▸ See All in High Speed Fuses


How Can We Make This Page Better?

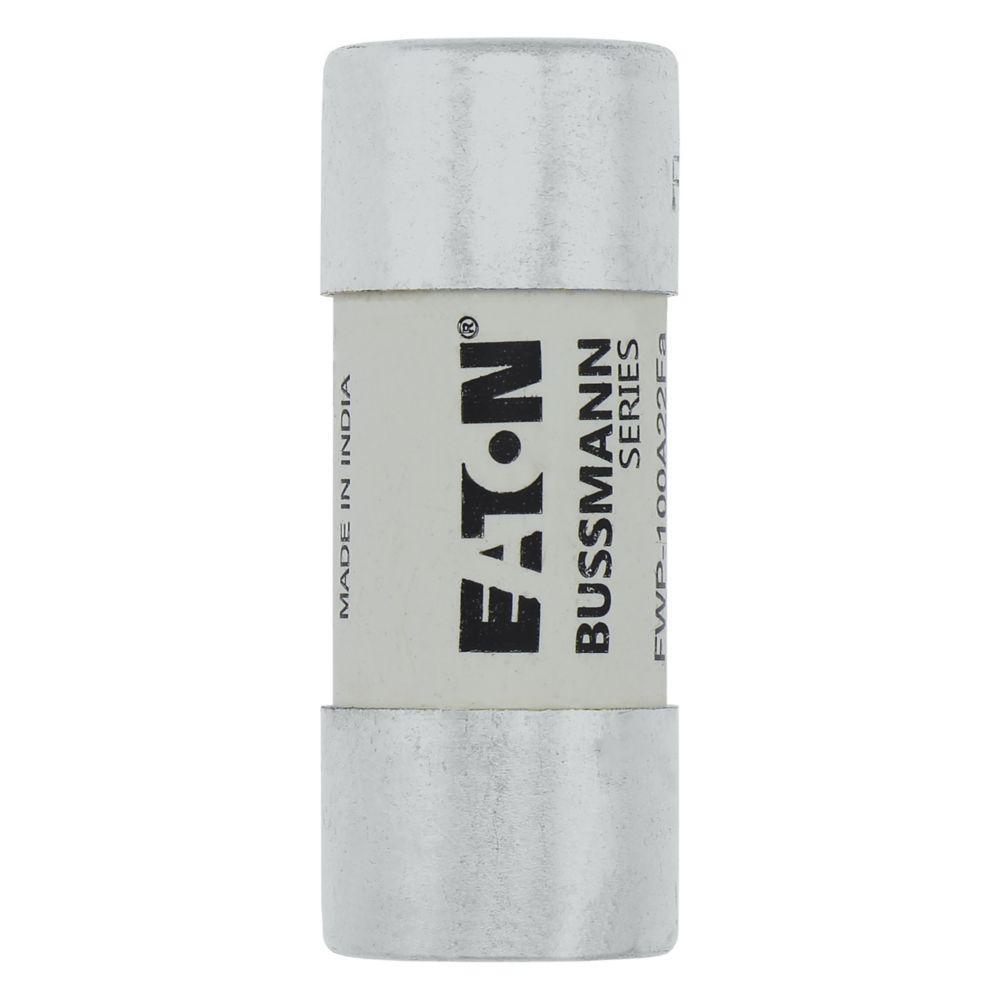

Bussmann FWP-100A22F High Speed Fuse, 100 A, 700 VAC, 50 kA Interrupt, Class: aR, Cartridge Body

Log In for Pricing and Availability




Description

Eaton’s Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class
Bussmann High Speed Fuse, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 100 A, 700 VAC, 50 kA Interrupt, Class: aR, Ferrule End Terminal, Holder Mount, Cartridge Body, Single Element, Ceramic, 0.875 in Dia x 2.283 in L Body Size

Specifications

 Amperage Rating 100 A
 Application Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power
 Body Size 0.875 in Dia x 2.283 in L
 Body Type Cartridge
 Brand Name Bussmann
 Class aR
 Element Single
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number FWP-100A22F
 Material Ceramic
 Mounting Type Holder
 Rejection Non Rejection Non-Rejection
 Series FWP
 Standards/Approvals CE Marking|CSA 1422-30/1422-90/File No. 53787|RoHS Compliant|UL Listed File No. E91958 Guide No. JFHR2
 Terminal Type Ferrule End
 Video Links
 Voltage Rating 700 VAC

Features

▪ Low arc voltage and low energy let-through
▪ Excellent DC performance
▪ Used with finger safe holders/blocks
▪ Low wattage loss
▪ Superior cycling capability
▪ 200 kA and 50 kA at 300 VDC interrupt rating
▪ Without striker
