Eaton

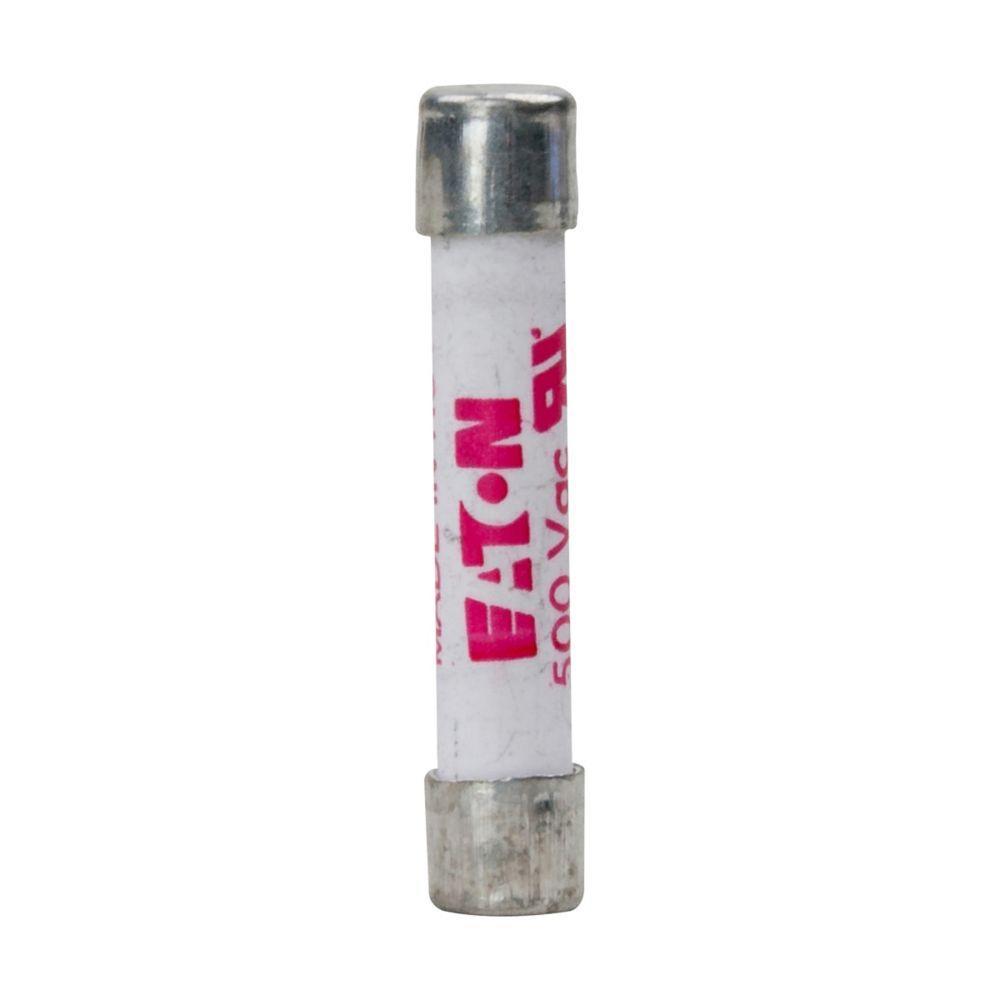

  • FWH-3.15A6F BUS 3.15A 500V SEMI-COND FUSE
  • FWH-3.15A6F BUS 3.15A 500V SEMI-COND FUSE
  • FWH-3.15A6F BUS 3.15A 500V SEMI-COND FUSE

Description: Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Indicating/Non-Indicating: Non-Indicating, 3.15 A, 500 V AC, 20 kA Interrupt, 45 to 1000 Hz, 30 min at 150%, 30 min at 200%, 10 s at 300% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body, Ceramic, 1/4 in Dia x 1-1/4 in L Body Size

Manufacturer PN: FWH-3.15A6F

UPC:  05171279666

Kendall Electric Inc PN: 2102572

Invoice Description:

FWH-3.15A6F BUS 3.15A 500V SEMI-COND FUSE


SPEC SHEET

▸ See All in Semiconductor Fuses


How Can We Make This Page Better?

Bussmann FWH-3.15A6F Fast Acting Semi-Conductor High Speed Fuse, 3.15 A, 500 V AC, 20 kA Interrupt, Cylindrical Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Indicating/Non-Indicating: Non-Indicating, 3.15 A, 500 V AC, 20 kA Interrupt, 45 to 1000 Hz, 30 min at 150%, 30 min at 200%, 10 s at 300% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body, Ceramic, 1/4 in Dia x 1-1/4 in L Body Size

Specifications

 Amperage Rating 3.15 A
 Application Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power
 Body Size 1/4 in Dia x 1-1/4 in L
 Body Type Cylindrical
 Brand Name Bussmann
 Frequency Rating 45 to 1000 Hz
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number FWH-3.15A6F
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS FWH-3.15A6F ; FWH315A6F ; 7648155 ; 051712796668 ; 51712796668 ; 05171279666 ; 00051712796668 ; 5027590499613
 Response Time 30 min at 150%, 30 min at 200%, 10 s at 300%
 Series FWH
 Standards/Approvals CE Marking|CSA Certified File No. 1422-30/1422-90|UL Listed File No. E91958|UL JFHR2
 Terminal Type Ferrule End
 Type Fast Acting Semi-Conductor
 Video Links
 Voltage Rating 500 V AC

Features

▪ Low arc voltage
▪ Excellent DC performance
▪ Superior cycling capability
▪ Used with finger safe holders/blocks
▪ Low energy let through
▪ 30 min at 150%, 30 min at 200%, 10 sec at 300% response time

Resources

 Catalog Page
 Product Data Sheet
