Panasonic
FV-0511VHL1 PANASONIC 50-80-110CFM Fan/Heater/Light

Mouse over image to zoom, click to enlarge

  • FV-0511VHL1 PANASONIC 50-80-110CFM Fan/Heater/Light
  • FV-0511VHL1 PANASONIC 50-80-110CFM Fan/Heater/Light

Description: Panasonic WhisperWarm DC™ Combo Ventilation Fan/Heater/Light, Precision Spot, 50/80/110 cfm Flow Rate, 4 or 6 in Diameter Duct, 120 V, 0.5 A, 60 Hz Frequency, 4.7/7.4/12.4 W Power, 1600 W Heater Wattage, 16 in L x 10-1/4 in W x 7-1/2 in H Housing, 10 W Lamp, Dimmable LED Chip Lighting, Ceiling Mounting, 18-1/4 in L x 13-1/4 in W Grille, Polypropylene Grille, 26 ga Zinc-Aluminum-Magnesium Housing Material

Manufacturer PN: FV-0511VHL1

UPC:  88517037418

Kendall Electric Inc PN: 4419451

Invoice Description:

FV-0511VHL1 PANASONIC 50-80-110CFM Fan/Heater/Light


SPEC SHEET

▸ See All in Heater/Fan/Light Combo


How Can We Make This Page Better?

Panasonic WhisperWarm DC™ FV-0511VHL1 Precision Spot Combo Ventilation Fan/Heater/Light, 50/80/110 cfm Flow Rate, 4 or 6 in Dia Duct, 10 W Lamp, 120 V, 1600 W

Log In for Pricing and Availability




Description

Next generation WhisperWarm DC™ with LED packs a slew of new features to deliver healthy air and instant warmth to chilly bathrooms. A powerful new ECM motor and larger 1600 W heating element enables builders and remodelers to enjoy easy, code compliant installations, while delivering high output exhaust ventilation and space heating for occupants.
Panasonic WhisperWarm DC™ Combo Ventilation Fan/Heater/Light, Precision Spot, 50/80/110 cfm Flow Rate, 4 or 6 in Diameter Duct, 120 V, 0.5 A, 60 Hz Frequency, 4.7/7.4/12.4 W Power, 1600 W Heater Wattage, 16 in L x 10-1/4 in W x 7-1/2 in H Housing, 10 W Lamp, Dimmable LED Chip Lighting, Ceiling Mounting, 18-1/4 in L x 13-1/4 in W Grille, Polypropylene Grille, 26 ga Zinc-Aluminum-Magnesium Housing Material

Specifications

 Amperage Rating 0.5 A
 Brand Name Panasonic
 Duct Diameter 4 or 6 in
 Flow Rate 50/80/110 cfm
 Frequency Rating 60 Hz
 Grille Material Polypropylene
 Grille Size 18-1/4 in L x 13-1/4 in W
 Heater wattage 1600 W
 Housing Dimensions 16 in L x 10-1/4 in W x 7-1/2 in H
 Housing Material 26 ga Zinc-Aluminum-Magnesium

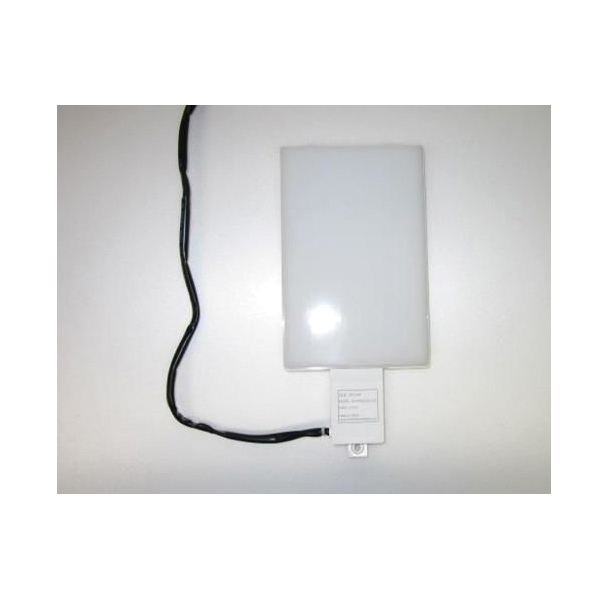

 Includes 10 W Dimmable LED Chip Panel With <1 W LED Night Light and Pick-A-Flow™ Air Flow Selector
 Lamp Wattage 10 W
 Lighting Type Dimmable LED Chip
 Manufacturer Part Number FV-0511VHL1
 Mounting Type Ceiling
 Power Rating 4.7/7.4/12.4 W
 Standards/Approvals California Title 24|cULus Listed|HVI 2100
 Type Precision Spot
 Video Links
 Voltage Rating 120 V

Features

▪ Built-in 1600 W positive temperature co-efficient heater delivers instant warm up for safe and reliable operation
▪ Combined with a unique circulation grille with built-in diffuser, it provides even more advanced heating performance
▪ Powerful ECM motor with SmartFlow™ technology for optimum airflow and cfm output
▪ Flex-Z Fast™ bracket enables fast, flexible room side installation, even from below the ceiling
▪ Pick-A-Flow™ (50/80/110 cfm) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
